1×19 Steel Strand

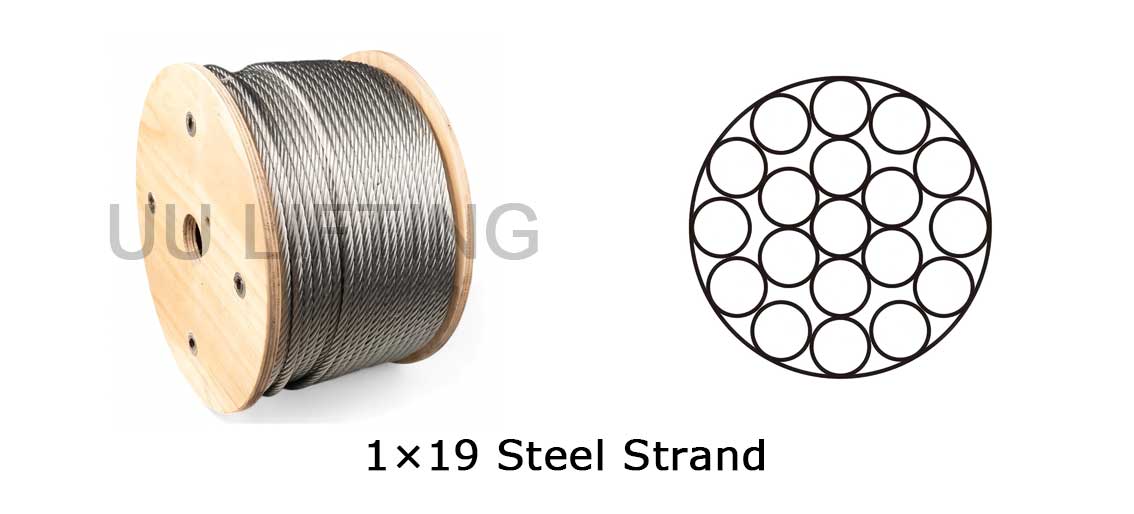

1×19 Steel Strand Sizes:

1×19 Steel Strand Sizes

What is 1×19 Steel Strand and When Should You Use It?

You have projects that require high strength and zero sag. Standard wire ropes feel loose and unreliable. This creates a safety risk and ruins the look of your work. You need a solution that stays tight and holds form under pressure.

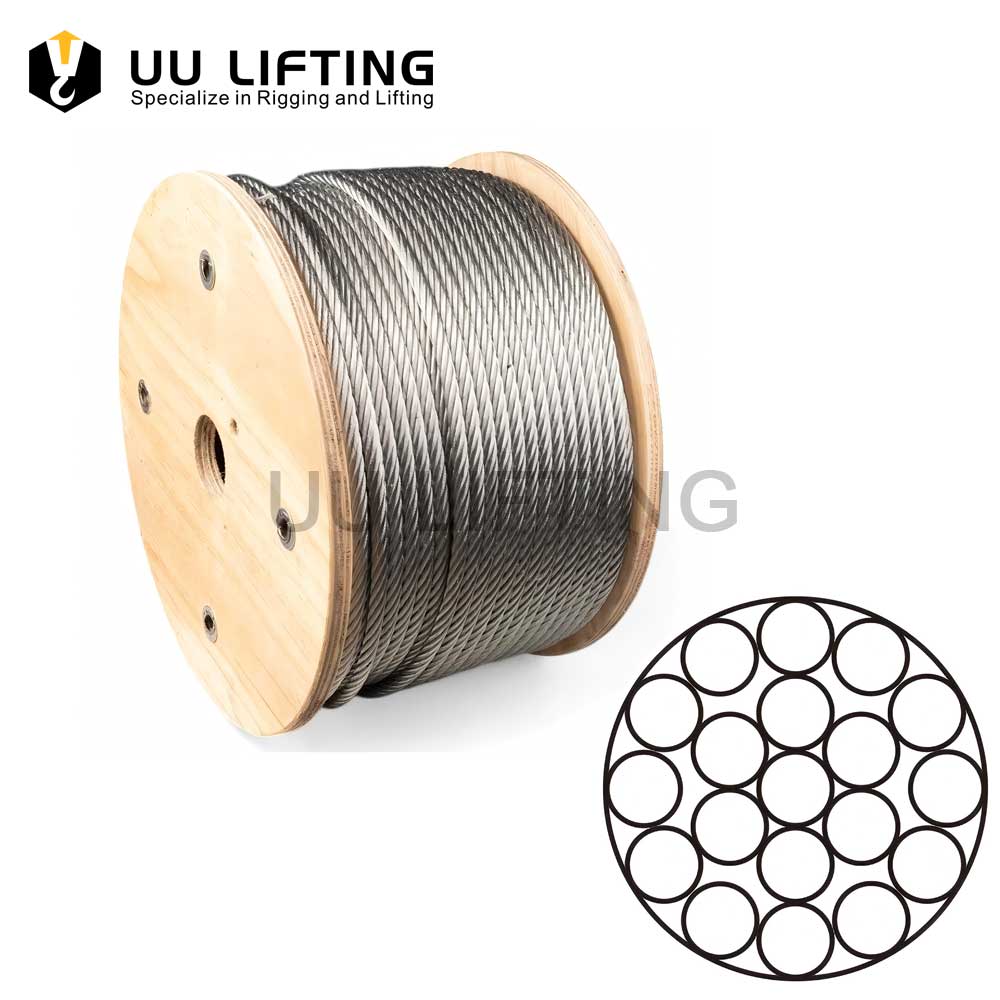

A 1×19 steel strand is a high-strength wire rope construction. It consists of a central wire surrounded by a layer of 18 wires. This design provides very low stretch, high breaking strength, and high rigidity. It is the perfect choice for static rigging and structural support.

I deal with various lifting gear every day. Most of the time, people look for flexibility in a rope. However, some jobs need the exact opposite. If you choose the wrong rope, your structure fails. Let us look at why this specific construction matters for your business.

Why is the Construction of 1×19 Steel Strand Unique?

You need to know if a product will hold up over time. If you use the wrong wire, it stretches out. You then spend time and money fixing it. You want a product that remains stable from the first day to the last.

The 1×19 construction is unique because it has no core made of fiber or separate strands. It uses one solid center wire with eighteen outer wires wrapped tightly around it. This creates a very compact, stiff, and smooth wire strand that resists stretching.

This design differs from the standard 6×19 rope that they often sell. While a 6×19 rope is great for lifting and moving loads, it is too flexible for static work. The 1×19 strand does not bend easily. It is not meant to run over pulleys or winches. Instead, it is designed to sit still and hold a specific tension. The eighteen outer wires protect the core. This makes the strand very durable against external wear. When I talk to my customers about railings or architectural projects, this is the first product I recommend. It gives a clean, modern look because it lacks the bulky appearance of traditional, flexible wire ropes. It is simple, effective, and strong.

Where are the Best Applications for 1×19 Steel Strand?

You struggle to find the right hardware for architectural or static tension projects. Standard ropes look messy. They sag and require constant adjustment. You need a clean, rigid, and professional-grade solution for these specific environments.

The 1×19 steel strand is used for static applications requiring high tension and low stretch. It is commonly found in architectural railing systems, marine rigging, yacht stays, and structural guy wires. It maintains its shape and tension without needing frequent retightening.

Think about a balcony railing. You want the wires to be perfectly straight. If the wire stretches, the railing feels loose. It becomes a safety issue. If you use a flexible wire rope, it will wobble. With 1×19, you pull it tight, and it stays that way. This is why it is the standard for modern building design. In the marine industry, we use it for standing rigging on sailboats. A mast needs support that does not move with every gust of wind. The 1×19 strand provides that stability. It is also common in outdoor installations where weather exposure is a concern. Because the construction is so compact, there is less room for water and salt to get inside. This helps prevent internal corrosion. I always tell my clients that if the application involves moving parts like a hoist, use a different rope. But for anything that needs to hold a position, 1×19 is the best choice.

How Do You Select Quality 1×19 Steel Strand for Your Business?

You have been burned by bad suppliers before. You bought wire that rusted in weeks. You bought rope that broke under the rated load. You need to know how to spot the difference between cheap steel and high-quality materials in your inventory.

To select quality 1×19 steel strand, you must inspect the finish and verify the material certifications. Look for a uniform, smooth surface without gaps. Ensure the steel is properly galvanized or made of high-grade stainless steel to prevent rust. Always demand mill test certificates.

When I source these products, I never look at the price tag. I look at the finish. Quality 1×19 strand should look like a solid rod, not a bunch of loose wires. If you can see gaps between the wires, the quality is poor. Those gaps will trap moisture and cause rust to form quickly. I always check the galvanization quality when buying carbon steel. The zinc coating should be even. It should not flake off when you bend the wire. For stainless steel, the grade matters. I usually look for 316-grade stainless steel for marine or outdoor use. It resists salt much better than 304-grade steel.

Conclusion

The 1×19 steel strand is a stiff, low-stretch wire rope built for static, high-tension jobs. It is ideal for railings, marine rigging, and architectural support where safety and appearance matter most.
