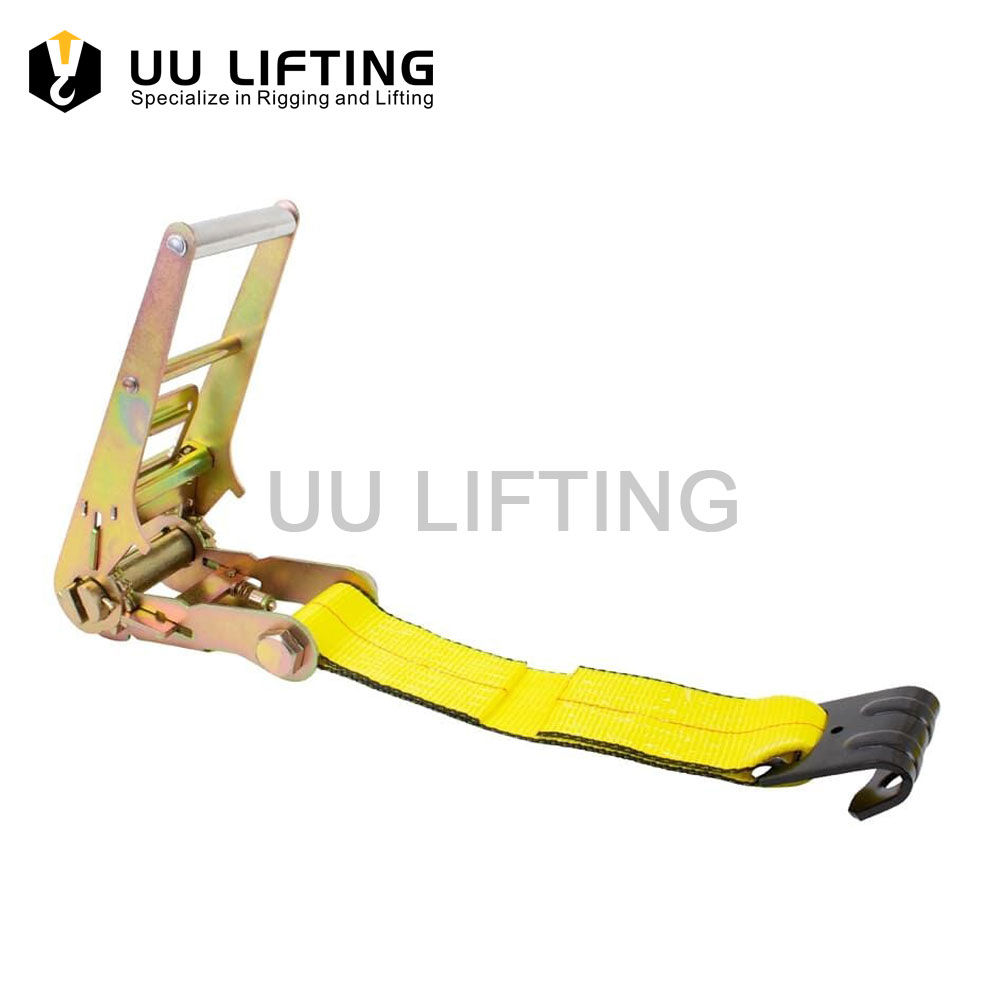

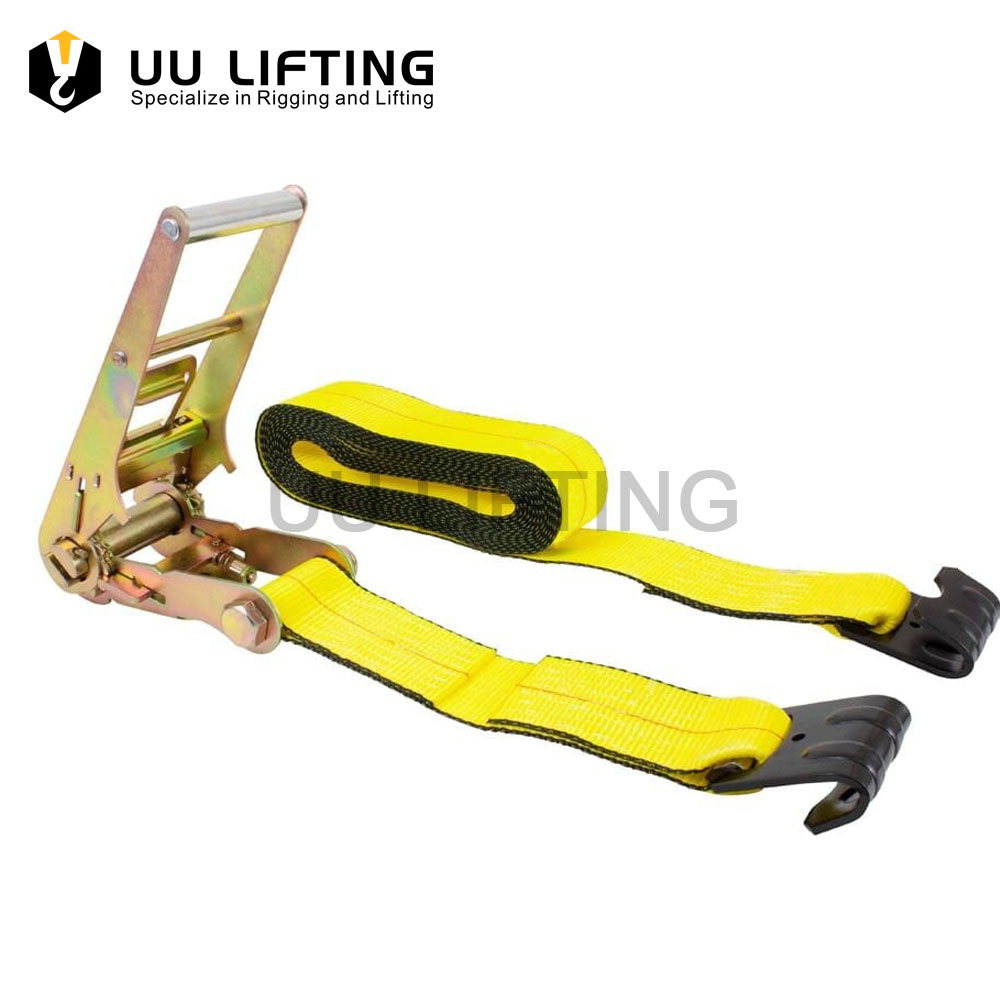

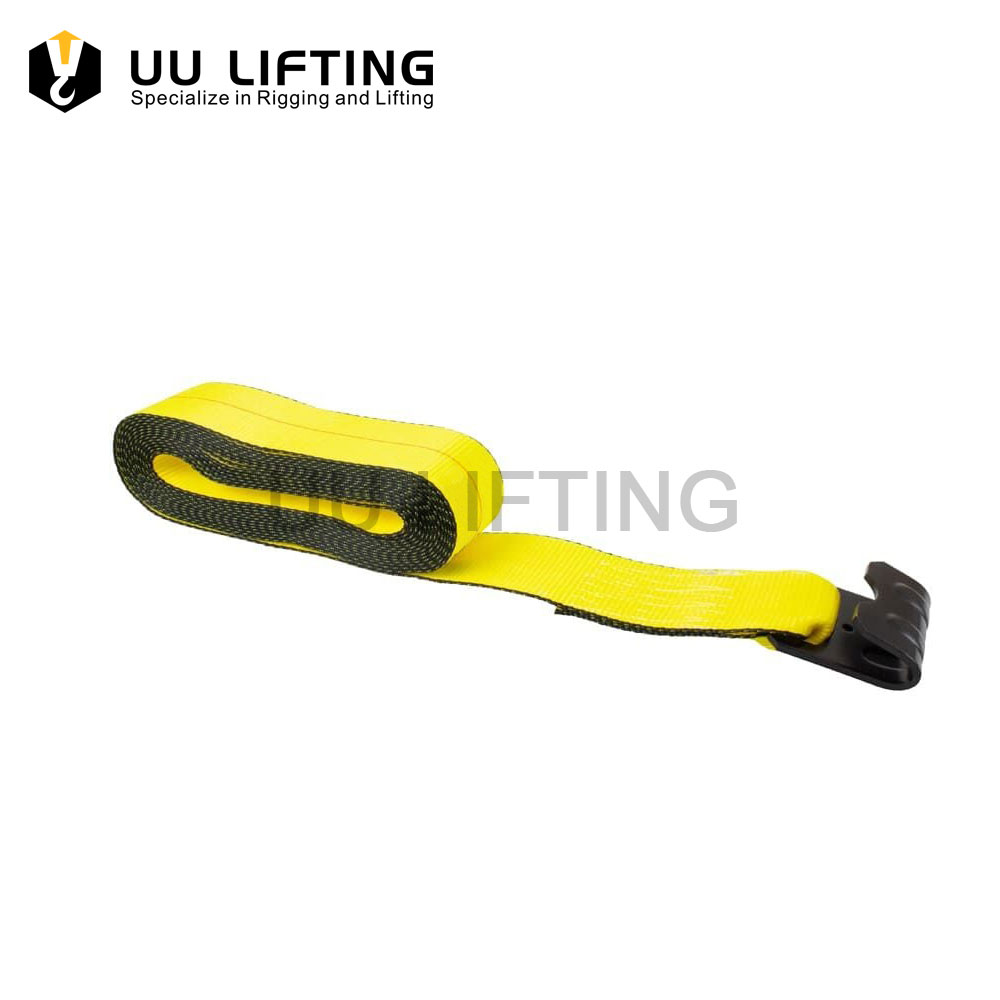

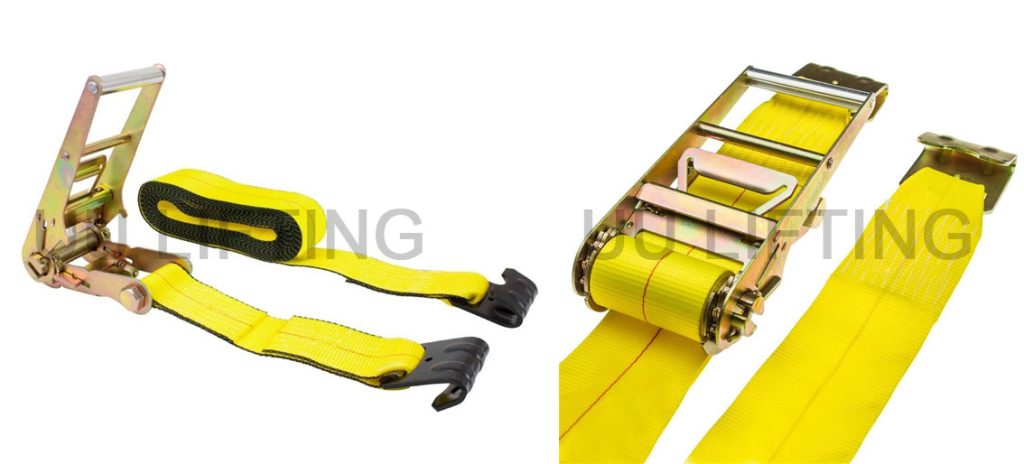

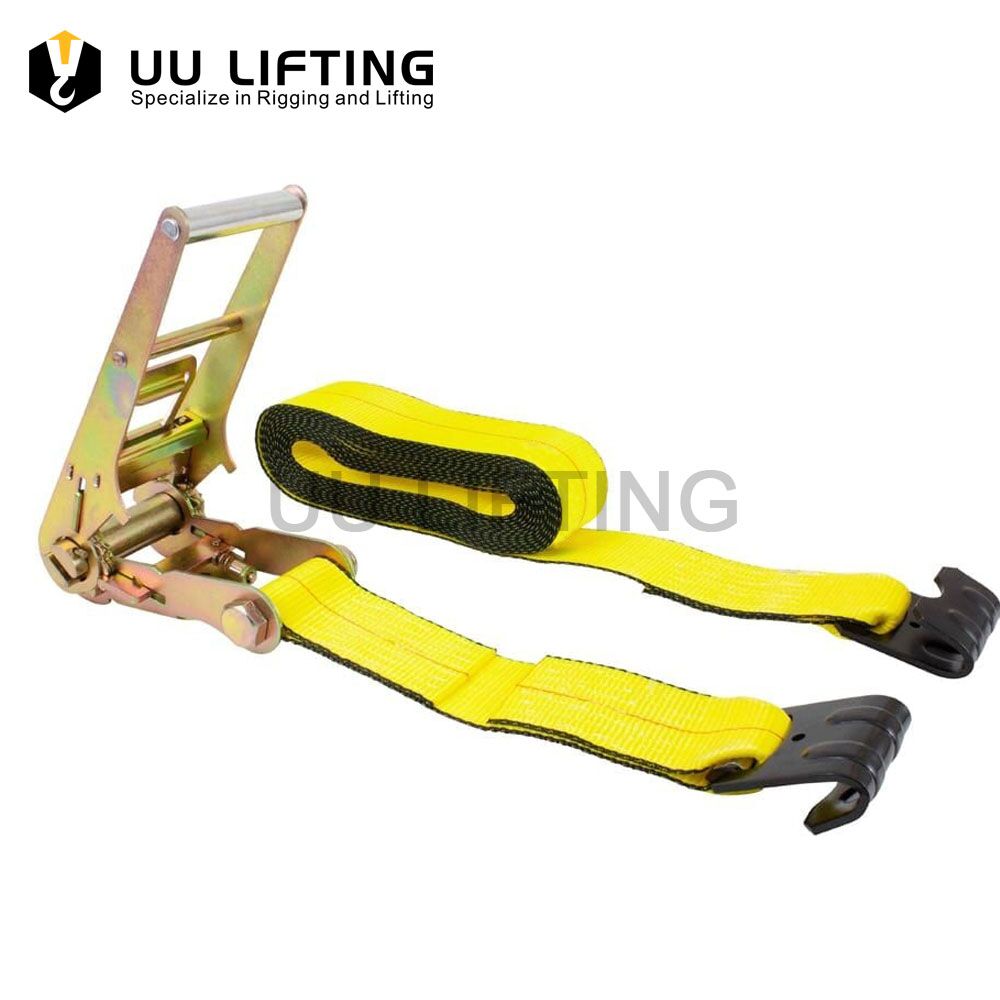

3″ Ratchet Straps with Flat Hook

3" Ratchet Straps with Flat Hook Sizes
Width	Length	Working Load Limit		Assembly Break Strength	Fixed End Length	Fixed End Length
(in)	(ft)	(lbs)	(kgs)	(lbs)	(ft)	(ft)
3	20	5,400	2,450	16,200	1	11.07
3	27	5,400	2,450	16,200	1	11.79
3	30	5,400	2,450	16,200	1	12.10
3	40	5,400	2,450	16,200	1	13.13

What are 3″ Ratchet Straps with Flat Hook?

3″ Ratchet Straps with Flat Hook are a type of cargo control equipment designed for securing items during transport or storage. These straps are characterized by their 3-inch width, offering substantial strength for various loads. They are typically made from durable polyester webbing, which provides resistance to stretching and abrasion. The “flat hook” refers to the end fitting on the strap, which is a flat piece of metal designed to anchor onto trailer rub rails, stake pockets, or other flat anchor points. These straps feature a ratchet mechanism, which is a handle used to tighten the webbing, ensuring the cargo is securely held in place. Standard lengths typically range from 20 feet to 40 feet, and they are commonly available in a standard yellow color. They are designed to meet industry standards such as WSTDA T-1 for safety and performance.

Advantages of 3″ Ratchet Straps with Flat Hook

One of the main advantages of 3-inch ratchet straps with flat hooks is their capacity for heavy-duty applications. The 3-inch wide polyester webbing provides a high working load limit and break strength, making it suitable for securing larger and heavier cargo. The flat hooks offer a versatile and secure connection point, particularly common in the trucking industry for flatbed trailers. These straps are also valued for their durability; the polyester material is resistant to UV rays, mildew, and water absorption, contributing to a longer service life even in various weather conditions. Ease of use is another significant benefit; the ratchet handle allows for precise tensioning, ensuring cargo can be secured tightly and safely with relative ease. This ability to achieve high tension helps prevent load shifting during transit, enhancing overall safety. They offer a reliable solution for upgrading cargo security.
