3″ Winch Strap with Chain Anchor

3" Winch Straps with Chain Anchor Sizes
Width	Length	Working Load Limit		Assembly Break Strength	Webbing Break Strength	Weight
(inch)	(ft)	(lbs)	(kgs)	(lbs)	(lbs)	(lbs)
3	20	5,400	2,450	16,200	20,000	5.0
3	30	5,400	2,450	16,200	20,000	5.5
3	40	5,400	2,450	16,200	20,000	6.0
3	50	5,400	2,450	16,200	20,000	6.5

What is a 3″ Winch Strap with Chain Anchor?

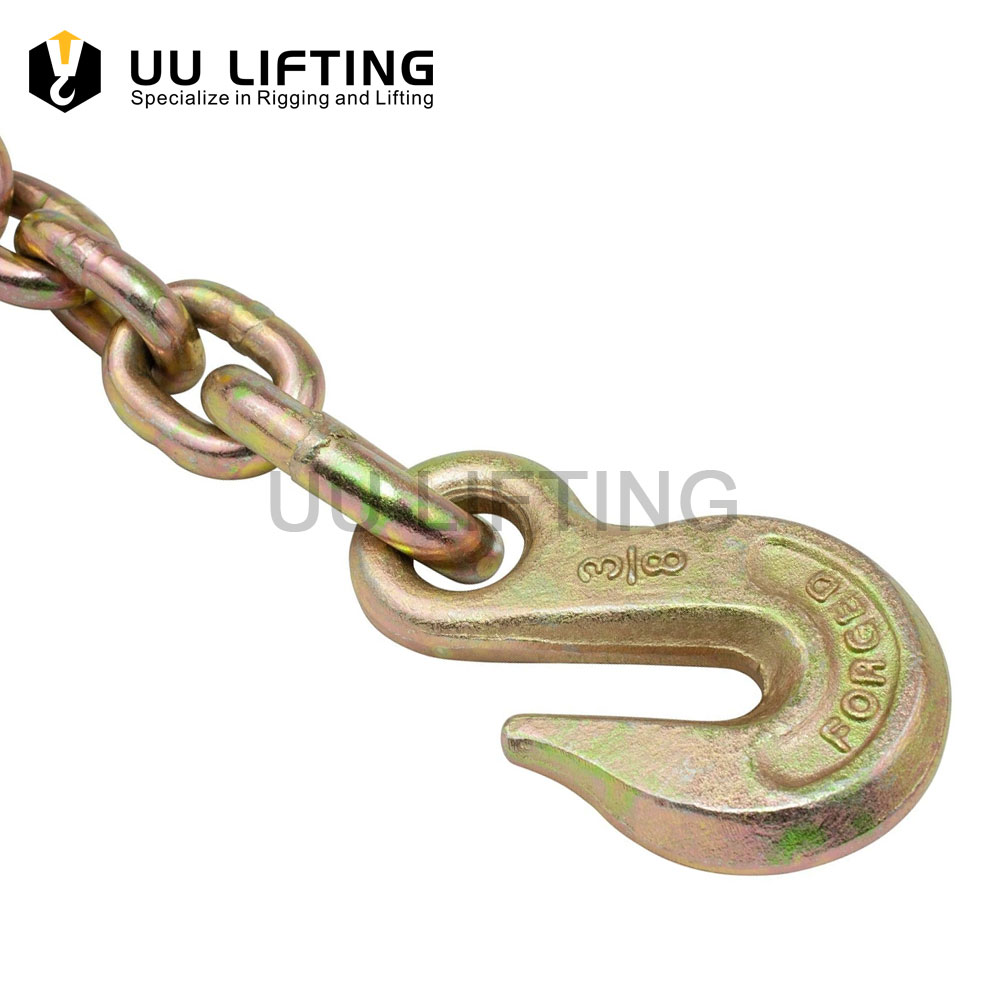

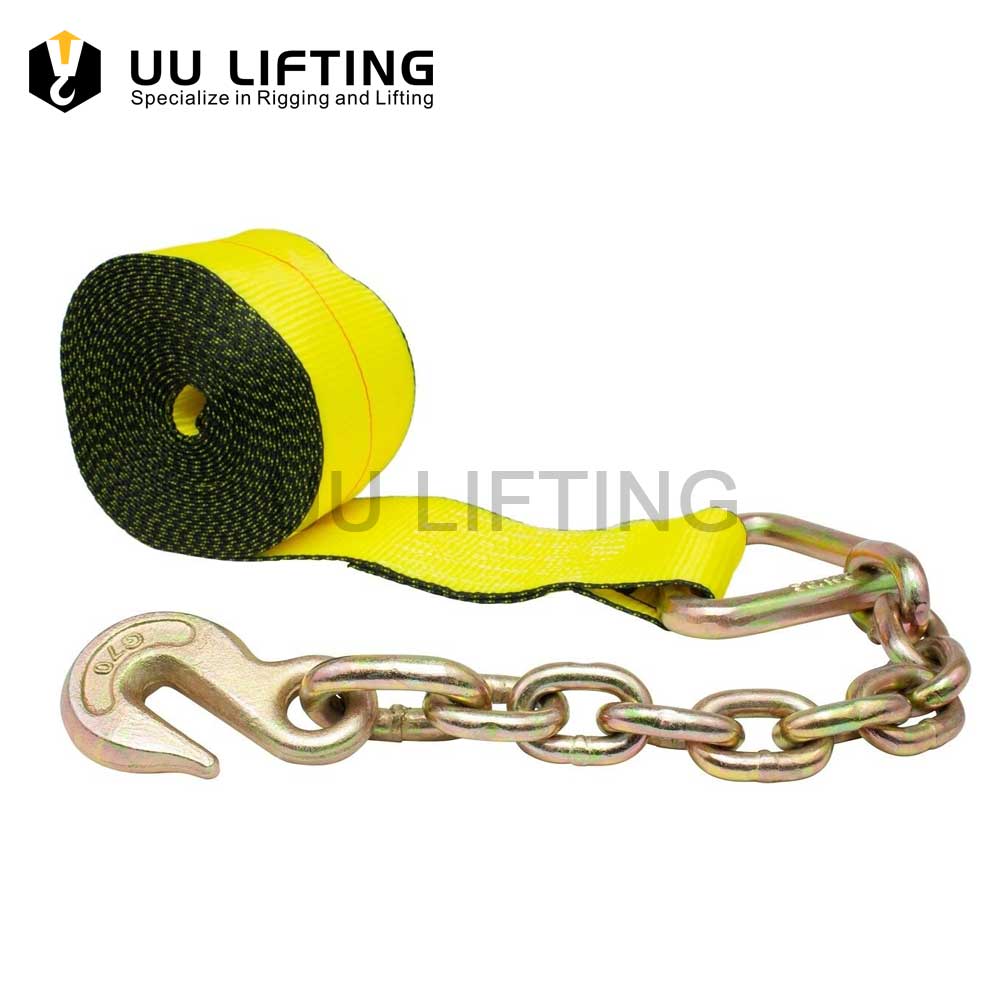

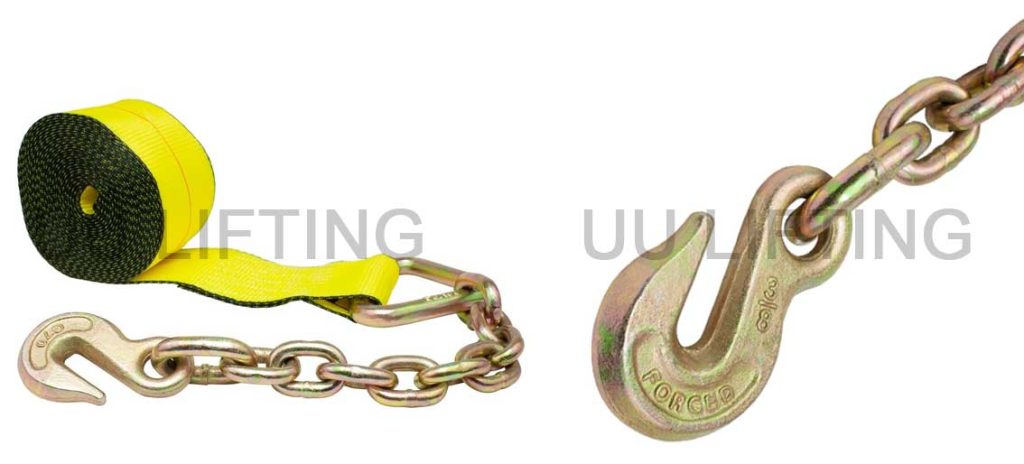

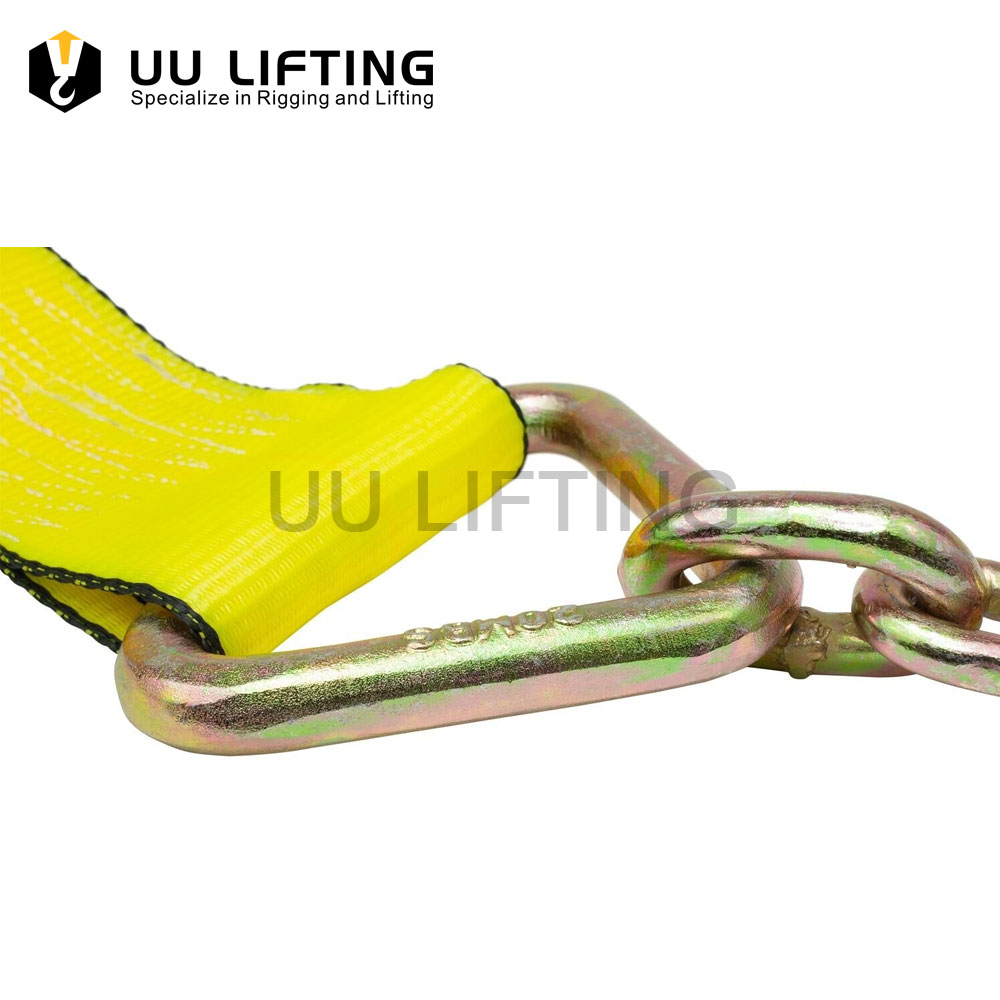

A 3″ Winch Strap with Chain Anchor is a specialized tie-down strap used primarily for securing cargo on flatbed trailers, trucks, and other transport vehicles. It consists of a 3-inch-wide strap made from durable polyester webbing. One end of the strap is equipped with a short length of chain and a grab hook, commonly referred to as a chain anchor. This chain anchor provides a strong and versatile connection point to the vehicle’s tie-down points or rub rails. The other end of the strap is typically plain, designed to be inserted into a winch (either on the side of the trailer or a portable one), which is then used to tighten the strap and secure the load.

Key Features and Advantages

• Robust and Secure Anchoring The primary advantage of the chain anchor end fitting is its strength and durability. Chains are highly resistant to abrasion and cutting, especially when connecting to rough or sharp edges on a trailer or cargo. The grab hook allows for quick and secure attachment to various anchor points, including D-rings, stake pockets, or directly to the trailer frame. This makes it a very reliable option for heavy-duty applications.
• Durable Polyester Webbing The strap itself is made from industrial-grade polyester webbing. Polyester is chosen for its high tensile strength, low elongation (stretch), and resistance to UV radiation, mildew, and most chemicals. This ensures the strap maintains its integrity and stability over time, even in harsh weather conditions and under demanding use. The 3-inch width provides a good surface area to distribute the securing force, reducing the risk of damage to softer cargo.
• Versatility in Application These winch straps are versatile and can be used to secure a wide range of cargo types, including palletized goods, machinery, building materials, and equipment. The availability of different lengths, typically ranging from 20 to 50 feet, enables users to select the appropriate strap for their specific load dimensions and securement requirements.
• High Working Load Limit Given their construction, 3-inch winch straps with chain anchors typically offer a substantial working load limit (WLL). This makes them suitable for securing heavier and more demanding loads. The design factor, often 3:1, means the strap’s minimum breaking strength is three times its rated working load limit (WLL), providing a crucial safety margin during transport.
• Ease of Use with Winches Designed to be used with standard truck winches, these straps enable the application of significant tension, ensuring the cargo is securely held in place. The winch mechanism provides a mechanical advantage, making it easier for operators to achieve the necessary tightness for safe load securement compared to manual methods.
• Visibility and Compliance Many winch straps, including these, are produced in bright colors, such as yellow. This enhances visibility, a crucial safety feature for both the operator during securement and for others on the road. They are also manufactured to meet or exceed industry standards for cargo securement, helping companies comply with transportation regulations.
