3″ Winch Straps with Flat Hook

3" Winch Straps with Flat Hook Sizes
Width	Length	Working Load Limit		Weight
(inch)	(ft)	(lbs)	(kgs)	(lbs)
3	20	5,400	2,450	5.0
3	30	5,400	2,450	4.1
3	40	5,400	2,450	5.0
3	50	5,400	2,450	5.0

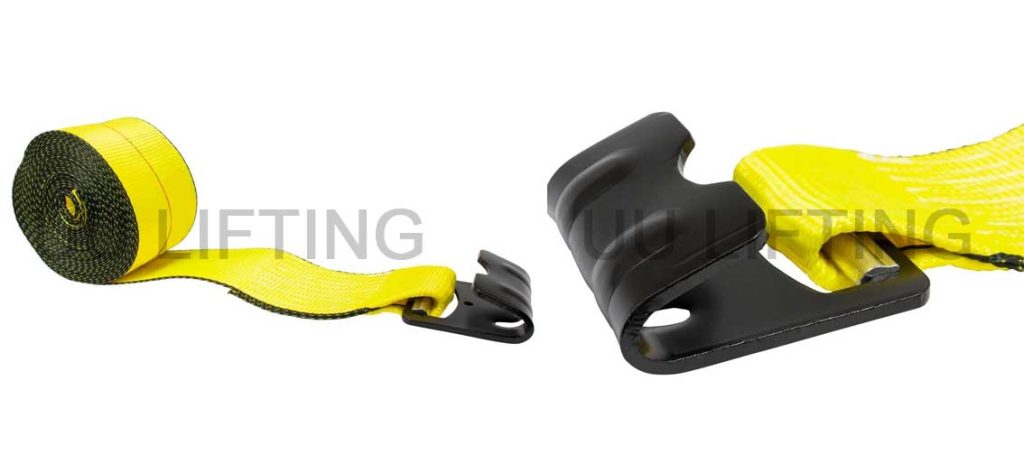

Understanding 3″ Winch Straps with Flat Hook

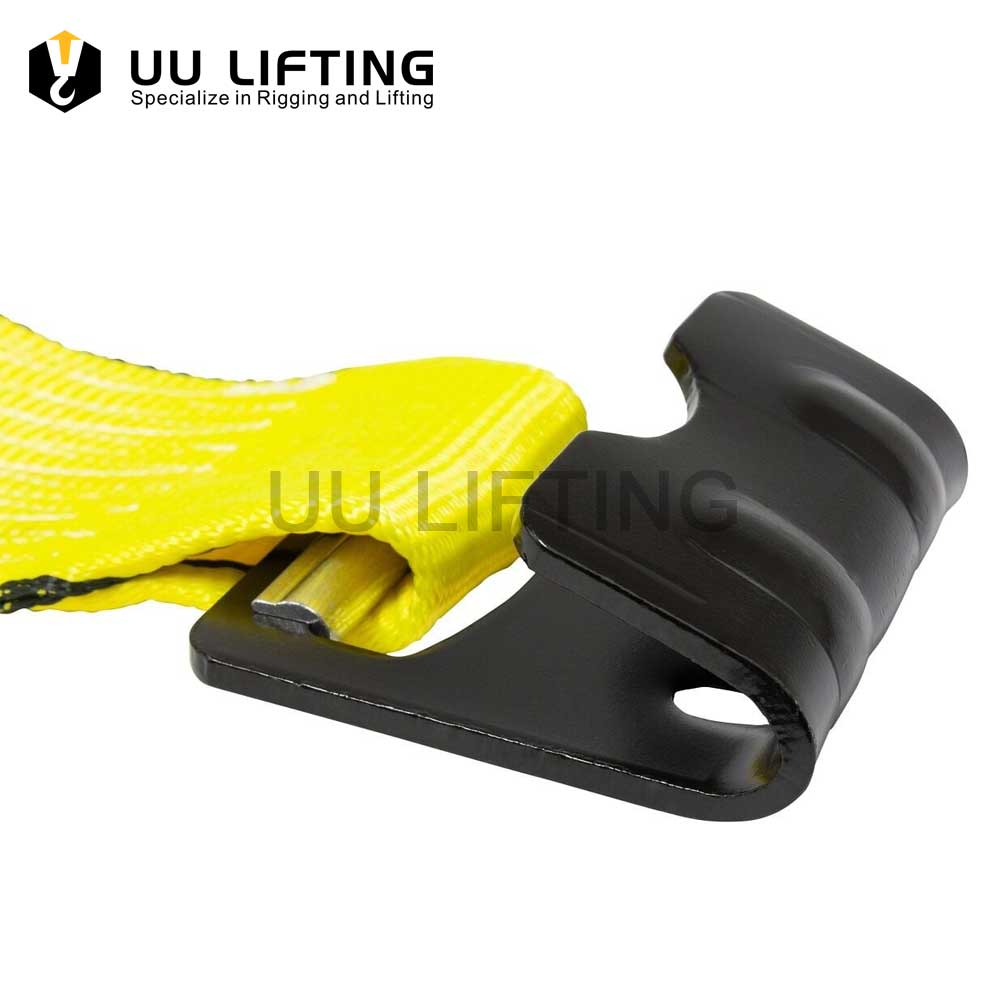

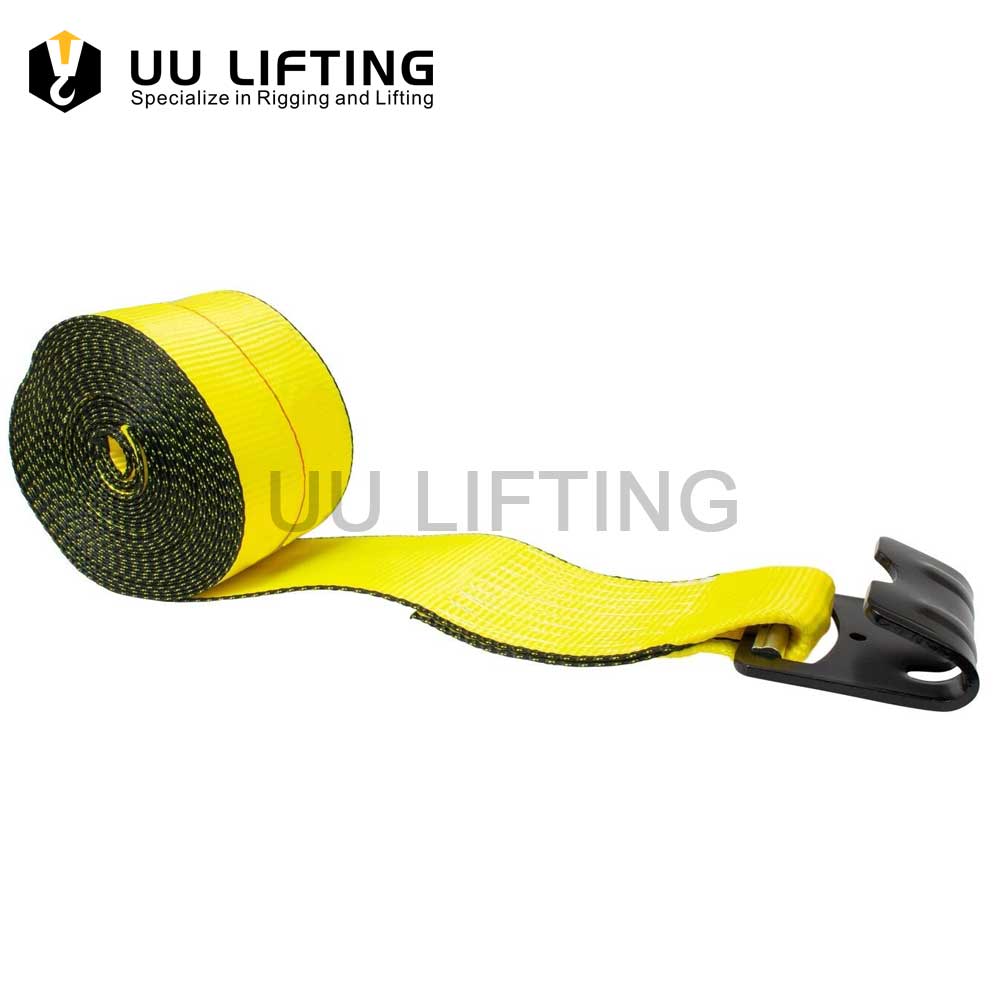

A 3″ Winch Strap with Flat Hook is a type of cargo control equipment. It is specifically designed to secure loads, typically on flatbed trailers or other transport vehicles. The “3″” refers to the width of the webbing, which is three inches. The “Flat Hook” is the metal end fitting on the strap, designed to attach to anchor points, such as rub rails or stake pockets, on a trailer. These straps are used in conjunction with a winch, which is a device that tightens the belt to hold the cargo firmly in place.

Key Specifications

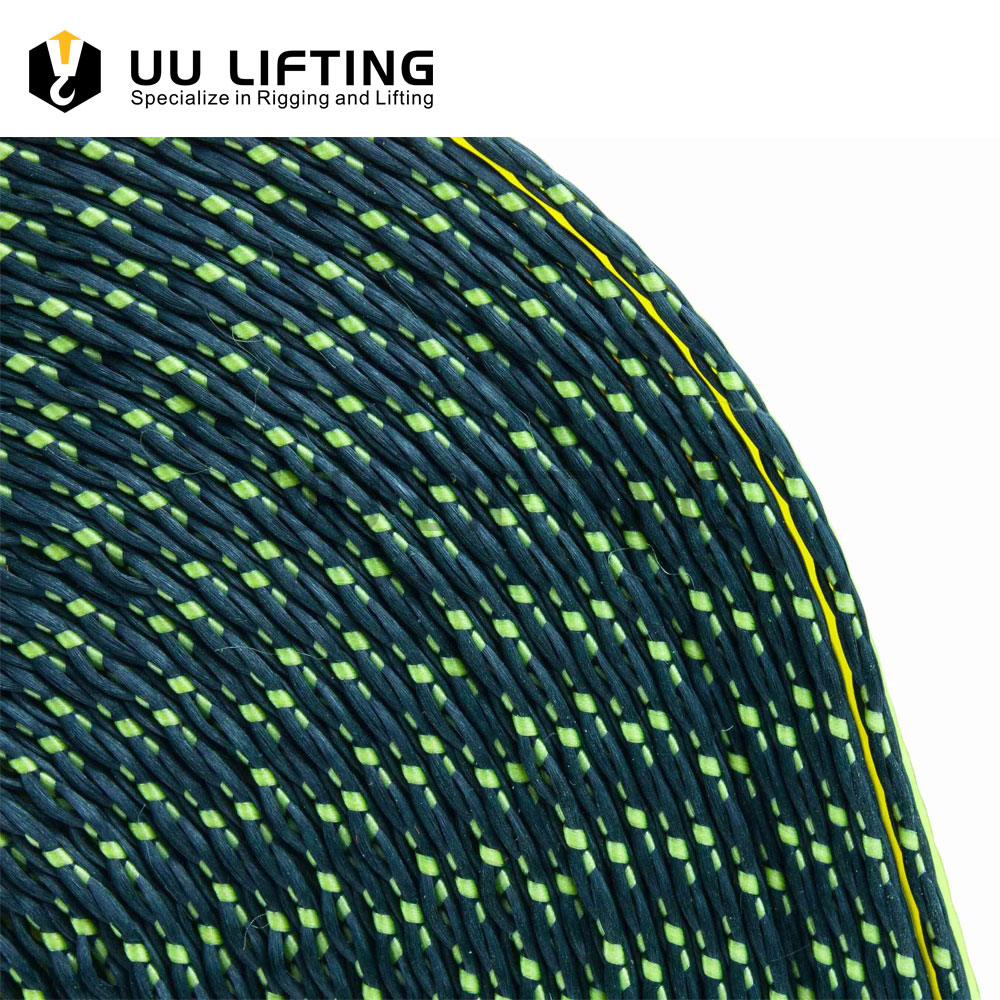

These winch straps generally have a width of 3 inches and are available in various lengths, commonly ranging from 20 feet to 50 feet. A crucial specification is the Working Load Limit (WLL), which for a 3-inch strap with a flat hook is typically around 5,400 pounds (or 2,450 kilograms). The manufacturing process for these straps, often made from polyester, involves several stages, including purchasing raw materials, warping, creating the webbing, testing, dyeing, cutting, sewing, further examination, and finally packing and loading.

Advantages of 3″ Winch Straps with Flat Hook

There are several advantages to using 3-inch winch straps with Flat Hooks for cargo securement. Their 3-inch width provides a good balance of strength and surface area, which helps distribute the holding force over the cargo, reducing the risk of damage. The high Working Load Limit of 5,400 lbs makes them suitable for securing moderately heavy to heavy loads. Polyester, the standard material for these straps, is known for its resistance to stretching, weathering, and UV radiation, ensuring durability and a longer lifespan. Flat hooks are a versatile and widely compatible end fitting that easily attaches to common anchor points on trailers. The availability in various lengths allows for flexibility in securing different sizes and shapes of cargo. The rigorous manufacturing and testing process ensures reliability and safety in operation.
