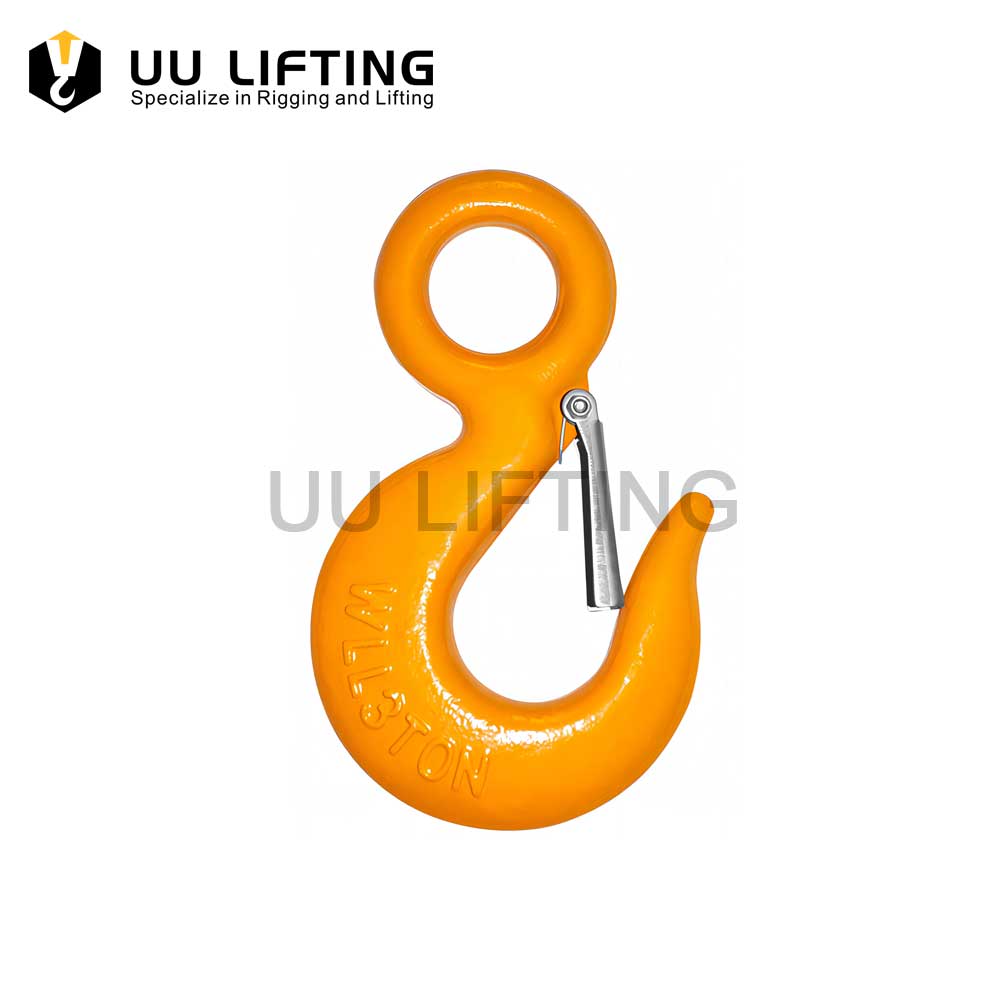

320A, 320C Eye Hook with Latch

Categories Hooks, Rigging Hardware Tags Hoist Hook Safety Latch, Lifting Hook

Specification

Additional information

Description

320A, 320C Eye Hook with Latch Sizes：

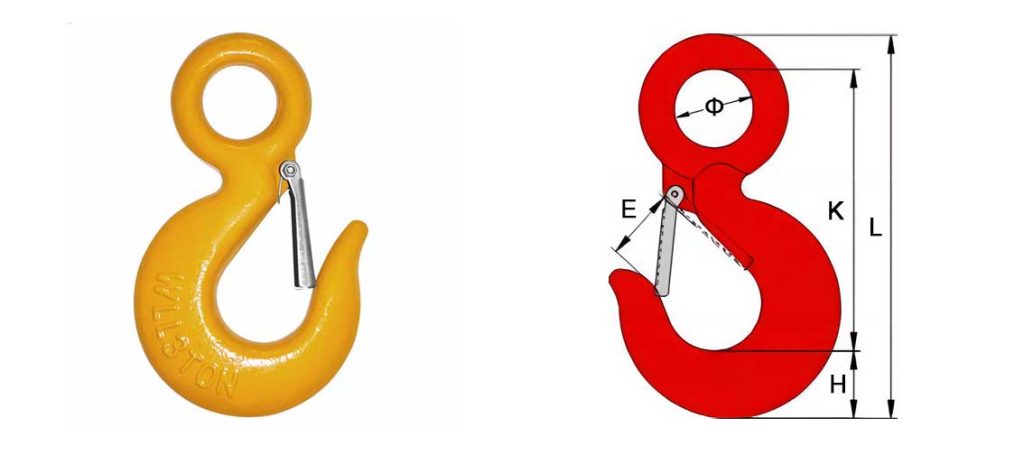

320A 320C Eye Hook with Latch Sizes
Carbon		Alloy		Dimension (mm)					Weight (kg/pc)
W.L.L/T	B.L/T	W.L.L/T	B.L/T	Φ	E	H	K	L	Weight (kg/pc)
0.5	2.5	0.75	3.75	16.5	19	17	72	97	0.21
0.75	3.75	1	5	19	22	19	82	110	0.28
1	5	1.5	7.5	23	23	21	93.5	125	0.4
1.5	7.5	2	10	28	24	26	103	140.5	0.65
2	10	3	15	31	27.5	28	119	162	0.95
3	15	5	25	39	33	37	146	201	1.95
5	25	7	35	51	40	46.5	186.5	256	3.77
7.5	37.5	11	55	62	51	57	231.5	317	6.8
10	50	15	75	73	57	67	261	360	9.8
15	75	22	110	89	75	76	318	434	16.25
20	100	30	135	90	82	91	360	495.5	27.2

320A, 320C Eye Hook with Latch

320A Eye Hook

The 320A eye hook is made of high-quality alloy steel. Specially manufactured by forging and other techniques and surface treatment, the hook has the characteristics of high strength, exquisite appearance, easy to use but durable. It can be used as an accessory for lifting or as a trailer accessory.It can used on Heavy Industry, Mining, Water Treatment, Healthcare, Retail Industry, Food & Beverage, General Industry, Oil & Gas, Automotive Industry.

320A eye hook is proper design, careful forging and precision controlled quenched and tempering give maximum strength without excessive weight and bulk.320A eye hook material is alloy steel.Carbon steel also provided.Fatigue rated at 1-1/2 times the Working Load Limit at 20,000 cycles.High cycle, long life spring.Heavy duty stamped latch interlocks with the hook tip.Even years afterpurchase of the original hook, latch assemblies can be added.

All Grade 8 lifting components sold by UU LIFTING comply fully with the relevant section of EN1677, they are forged from alloy steel, they are crack detected following heat treatment and finally proof tested to 2.5 times working load. The full compliance of these components means that they can be used in chain slings certified to EN 818-4, for use in a temperature range of -40°C up to 200°C without reduction in working load limit.

If you are interested in our products,pls contact with us now.Waiting for your messages.

OUR FACTORY

Raw materials of our products are made of high-quality steel that meets the standards, and the raw materials are traceable. And multiple production lines and machines minimize lead times for rigging and lifting equipment.

MANUFACTURING PROCESSES

With eight automatic forging and semi-automatic forging line of up to 1600ton press machines and specialized drillng, tapping, heat treatment and inspection equipment. Strict and standardized production process ensures you receive perfect products.

QUALITY CONTROL

All rigging and lifting products are subjected to strict working tension and breaking the tension test. Complied with ISO9001 and CE certification. Our promise to you: Guaranteed safety at work for people and materials.
