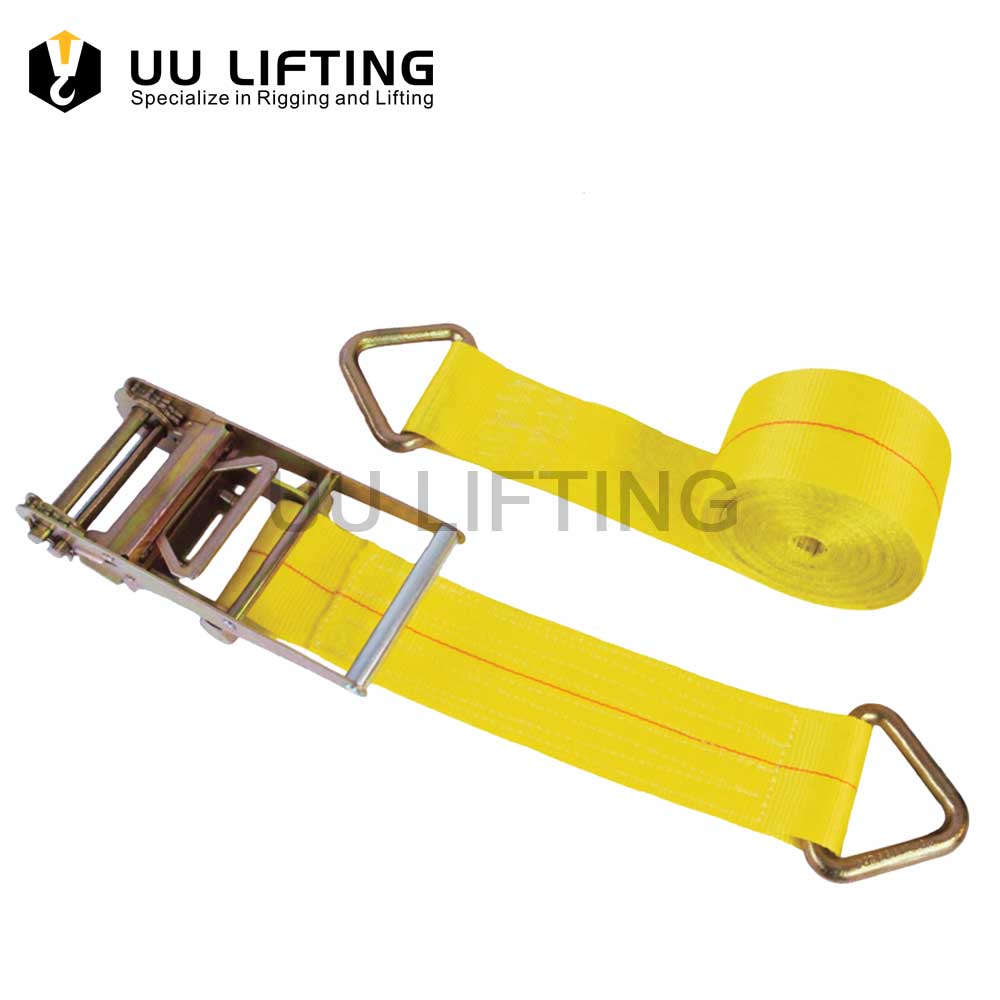

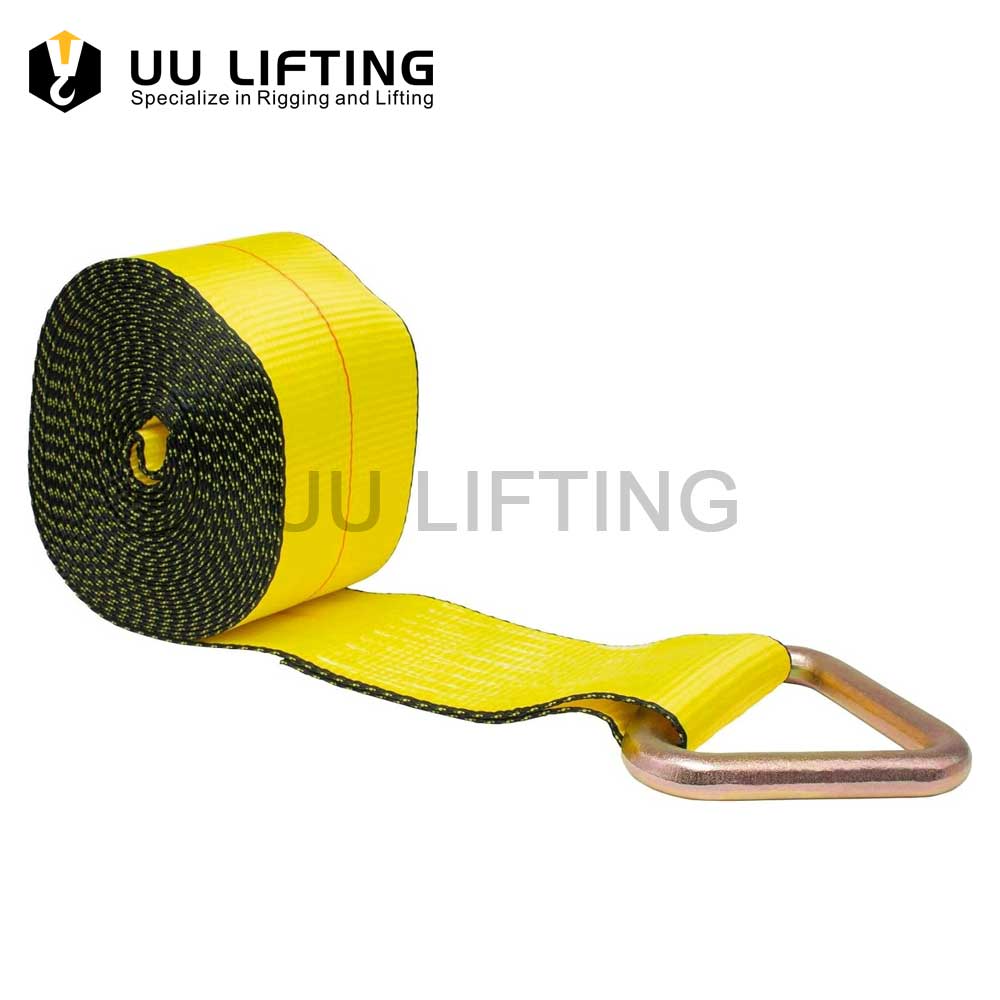

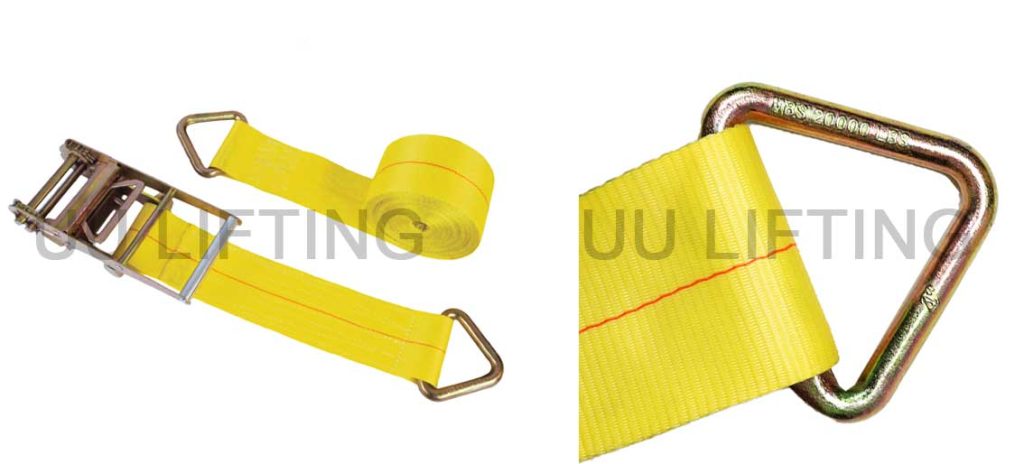

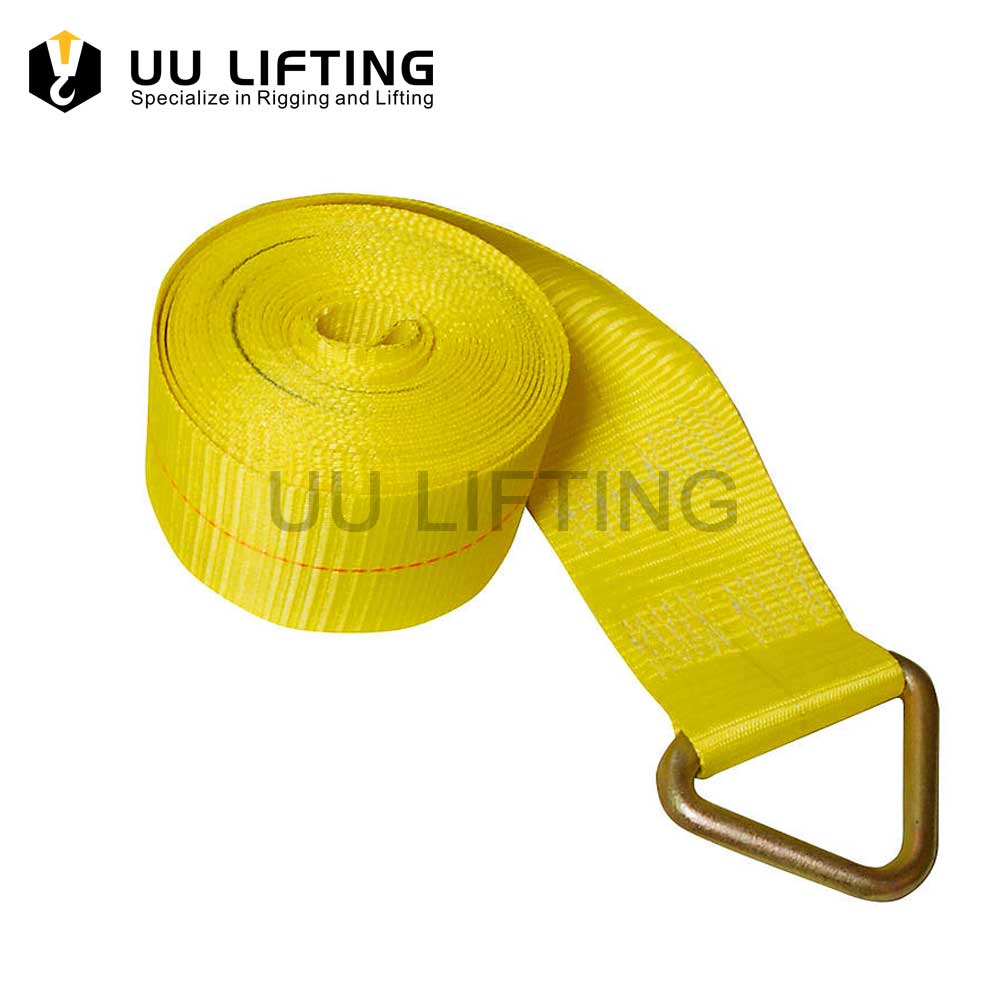

4″ Ratchet Strap with Delta Ring

4" Ratchet Straps with Delta Ring Sizes
Width	Length	Working Load Limit		Assembly Break Strength	Webbing Break Strength	Fixed End Length	Weight
(in)	(ft)	(lbs)	(kgs)	(lbs)	(lbs)	(ft)	(lbs)
4	27	5,400	2,450	16,200	20,000	1	13.88
4	30	5,400	2,450	16,200	20,000	1	14.20

What is a 4″ Ratchet Strap with Delta Ring?

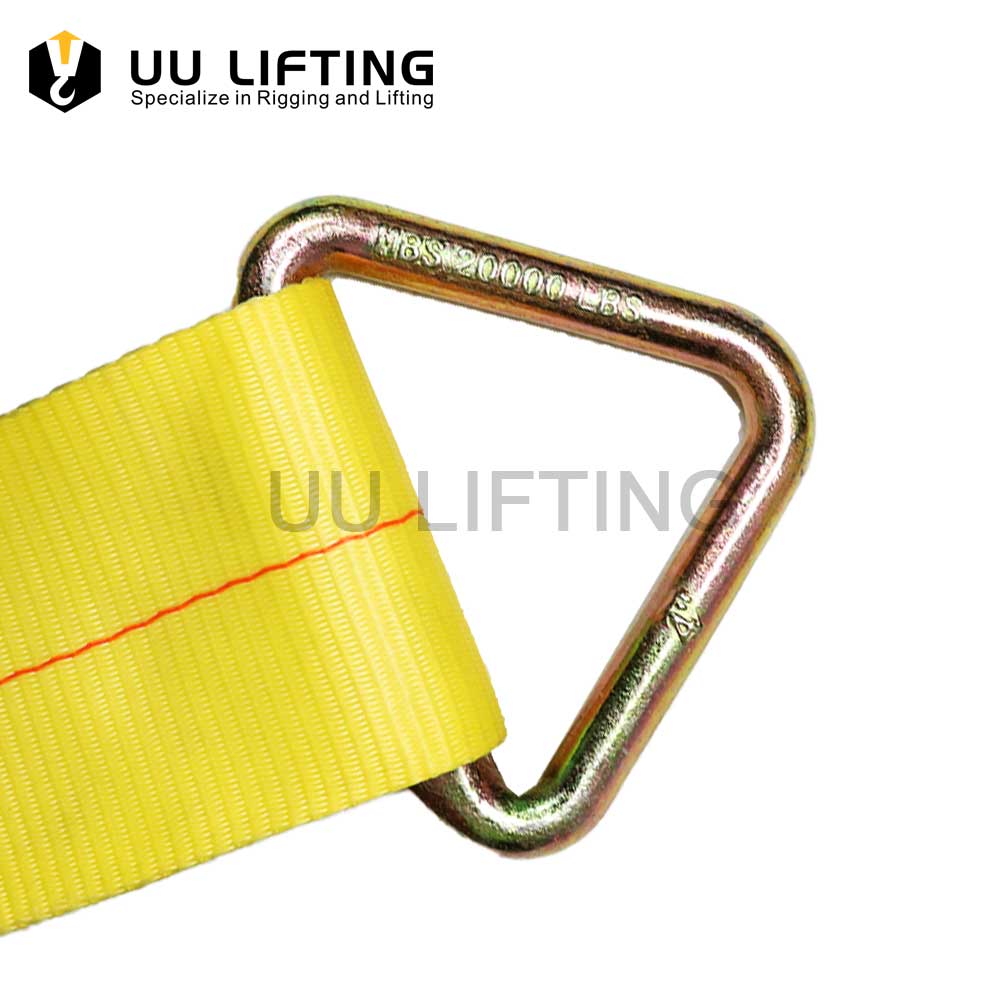

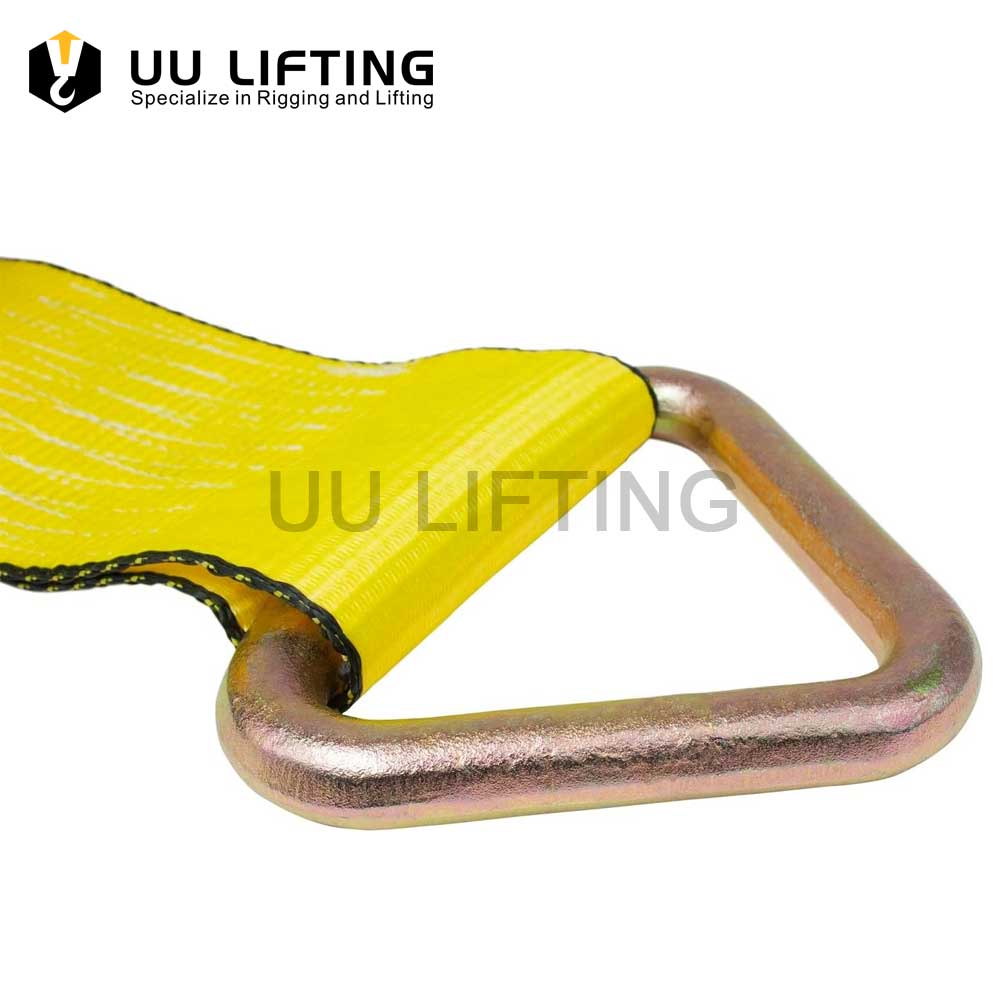

A 4-inch ratchet strap with a Delta Ring is a specialized tie-down assembly used for securing cargo. It is designed for durability and ease of operation. The primary function of this strap is to ensure that cargo remains tightly fastened and safe during transit, regardless of the journey’s demands. The 4-inch width refers to the width of the webbing, and the Delta Ring is a specific type of metal end fitting, shaped like a triangle or “D,” that provides a strong and versatile anchor point. Advantages and Features of the 4″ Ratchet Strap with Delta Ring

The 4″ Ratchet Strap with Delta Ring offers several key advantages and features:

• Robust Construction for Durability: These straps are built to withstand demanding conditions, ensuring long-lasting use.
• Ease of Use: The ratchet mechanism is designed for straightforward operation, allowing users to tighten the strap around cargo with minimal effort. The Delta Ring end fitting also contributes to easy attachment to various anchor points.
• Secure Cargo Transportation: The combination of strong webbing, a reliable ratchet, and a sturdy Delta Ring ensures that cargo is securely held in place, minimizing the risk of shifting or damage during transportation.
• High-Quality Material: The webbing is typically made from polyester, known for its strength, resistance to stretching, and durability against weather and abrasion.
• Specific Dimensions for Heavy-Duty Use: With a 4-inch width, these straps are suited for heavier loads. They are commonly available in lengths such as 27 feet or 30 feet.
• Ergonomic Ratchet Handle: Many models feature a standard long, wide handle, which provides better leverage and comfort during the tensioning process.
• Standard Compliance: These straps often meet industry standards, such as those set by the Web Sling and Tie Down Association (WSTDA), ensuring they adhere to safety and performance benchmarks.
• Impressive Load Capacities:
  • Working Load Limit (WLL): Typically around 5,400 pounds (2,450 kilograms), which is the maximum load the strap is designed to handle safely in regular use.
  • Assembly Break Strength: Often around 16,200 pounds, indicating the point at which the entire assembly (webbing, ratchet, end fitting) will fail under tension.
  • Webbing Break Strength: The webbing material typically has a break strength of approximately 20,000 pounds.
• Visibility: They are often produced in bright colors, such as yellow, for increased visibility, which serves as a safety feature.
