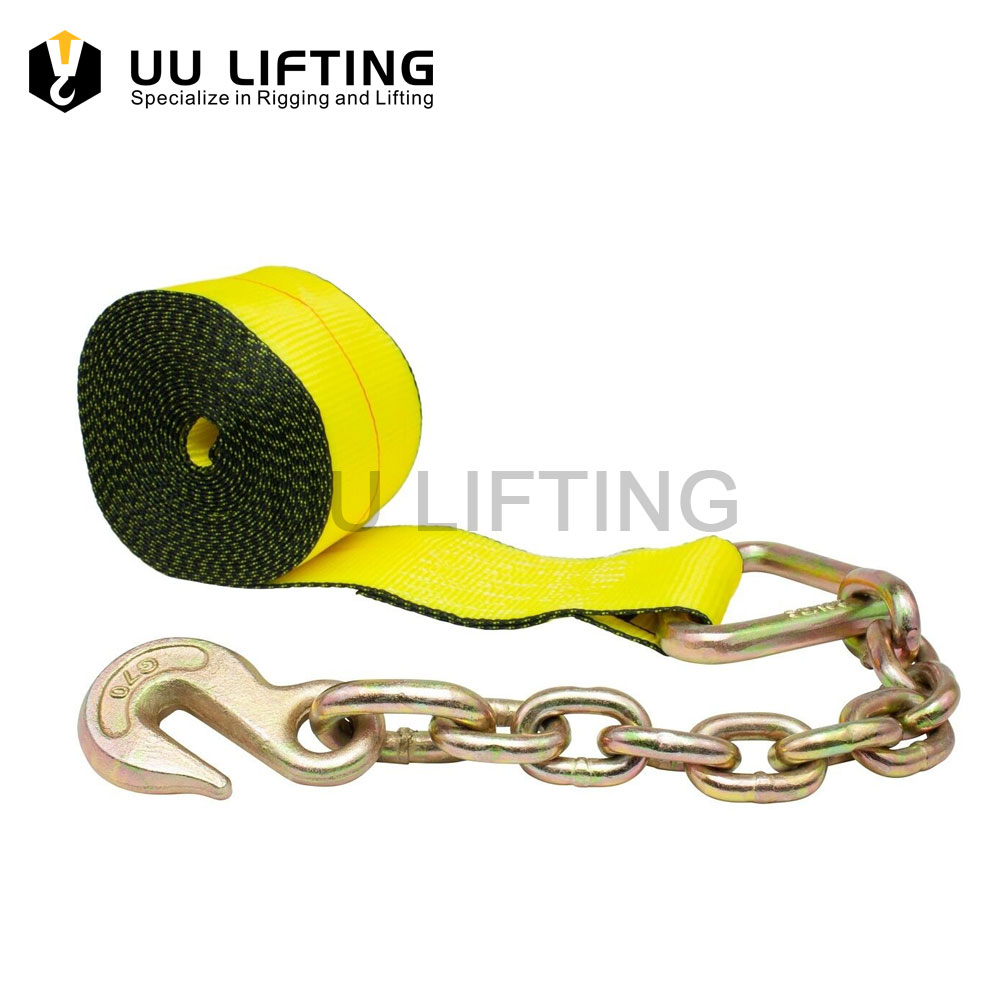

4″ Winch Strap with Chain Anchor

4" Winch Straps with Chain Anchor Sizes
Width	Length	Working Load Limit		Assembly Break Strength	Webbing Break Strength	Weight
(inch)	(ft)	(lbs)	(kgs)	(lbs)	(lbs)	(lbs)
4	27	5,400	2,450	16,200	20,000	7.3
4	30	5,400	2,450	16,200	20,000	7.7
4	40	5,400	2,450	16,200	20,000	9.1
4	50	5,400	2,450	16,200	20,000	10.3

Understanding the 4″ Winch Strap with Chain Anchor

The 4 “Winch Strap with Chain Anchor is a heavy-duty towing and cargo securing accessory. It is specifically designed for demanding applications requiring strong and reliable tie-downs. This product features a durable strap made from 4-inch-wide polyester webbing. One end of the strap is equipped with a robust chain anchor, providing a secure and strong connection point. These straps are commonly used in flatbed trucking for securing loads and in vehicle recovery operations.

Key Advantages and Features

The 4″ Winch Strap with Chain Anchor offers several benefits due to its construction and design:

• Heavy-Duty Solution: It is engineered as a heavy-duty towing solution, suitable for substantial loads and challenging tasks.
• Durability and Strength: The strap is made from high-quality polyester webbing, known for its excellent strength, abrasion resistance, and ability to withstand harsh environmental conditions. The chain anchor end fitting is also robust, contributing to the overall stability.
• Secure Attachment: The chain anchor provides a very safe method of attachment to anchor points on a trailer, vehicle, or other equipment, ensuring loads remain stable during transit.
• Reliability: Designed for reliability, this winch strap offers consistent performance, which is crucial for safety in transportation and recovery operations. It is built to perform reliably in harsh conditions.
• Versatility: While ideal for securing cargo on flatbed trailers, it’s also well-suited for applications like off-road vehicle recovery.
• High Load Capacity: These straps typically have a significant working load limit (e.g., 5,400 lbs), assembly break strength (e.g., 16,200 lbs), and webbing break strength (e.g., 20,000 lbs), making them suitable for heavy items.

Specifications Overview

Key specifications for a typical 4″ Winch Strap with Chain Anchor include:

• Width: 4 inches
• Length: Commonly available in lengths ranging from 27 feet to 50 feet
• Material: Polyester Webbing
• End Fitting: Chain Anchor
• Color: Often Yellow for high visibility, though other colors might be available.
• Design Factor: Typically 3:1 (meaning the break strength is three times the working load limit)
• Working Load Limit (WLL): For example, 5,400 lbs (2,450 kgs)
• Assembly Break Strength (ABS): For example, 16,200 lbs
• Webbing Break Strength: For example, 20,000 lbs
