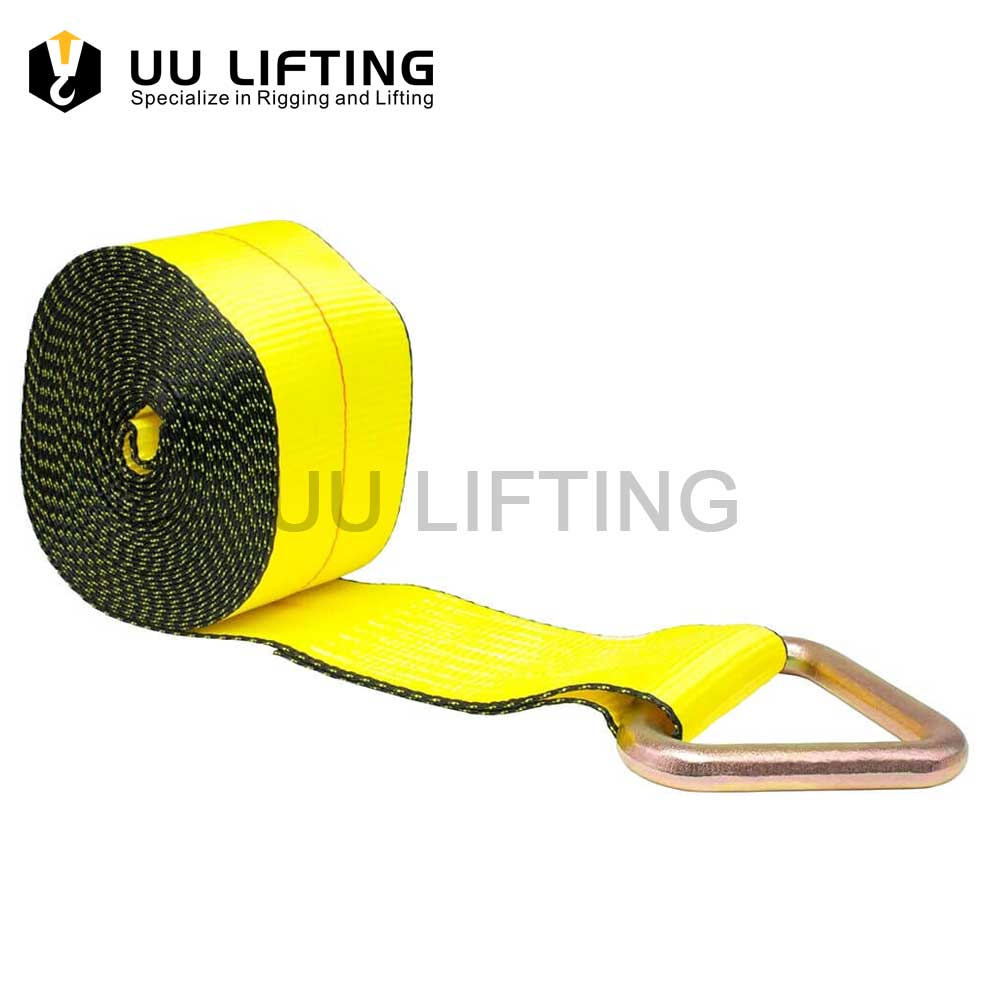

4″ Winch Strap with Delta Ring

Specification

Additional information

Width

4"

Length

From 27' to 30'

End Fitting

D Ring

Material

Polyester Webbing

Color

Yellow .etc

Design Factor

3:1

Description

The 4″ Winch Strap with Delta Ring is a heavy-duty tie-down solution for securing large loads. It features durable polyester webbing and a reinforced delta ring, ensuring superior strength and reliability. This strap offers exceptional load control and safety and is ideal for transport, construction, and industrial applications.

4″ Winch Strap with Delta Ring Specifications:

MOQ1 Pallet, 1 Ton or 3000USD
Width4"
LengthFrom 27' to 30'

4″ Winch Strap with Delta Ring Sizes:

4 inch Winch Strap with Delta Ring
4" Winch Straps with Delta Ring Sizes
WidthLengthWorking Load LimitAssembly Break StrengthWebbing Break StrengthWeight
(inch)(ft)(lbs)(kgs)(lbs)(lbs)(lbs)
4275,4002,45016,20020,0004.8
4305,4002,45016,20020,0005.2

What is a 4″ Winch Strap with Delta Ring?

A 4″ Winch Strap with Delta Ring is a type of heavy-duty tie-down strap designed primarily for securing cargo on flatbed trucks, trailers, and other transport vehicles. It features a 4-inch wide webbing, commonly made from strong and weather-resistant polyester material, which provides excellent durability and a high breaking strength suitable for heavy loads. One end of the strap is equipped with a Delta Ring, a triangular-shaped metal fitting. This Delta Ring serves as a robust and versatile anchoring point, allowing the strap to be effectively used with a winch system to tighten and secure goods during transit. These straps are essential equipment in the logistics and transportation industry for ensuring cargo stability and safety.

Advantages of a 4″ Winch Strap with Delta Ring:

  1. High Strength and Durability: The 4-inch width of the polyester webbing ensures substantial tensile strength, capable of withstanding significant forces encountered when securing large or heavy cargo. The material is also resistant to stretching, abrasion, and weathering, contributing to a long service life. The metal Delta Ring is also designed for strength, providing a reliable connection.
  2. Secure Cargo Fastening: When used in conjunction with a winch, these straps enable cargo to be securely fastened, minimizing movement and reducing the risk of damage or loss during transportation. The Delta Ring provides a secure loop for attachment to anchor points or other tie-down hardware.
  3. Versatile Connection Point: The Delta Ring end fitting offers a versatile means of attachment. Its shape allows for easy connection to various types of hooks, D-rings, or other lashing points on a vehicle or cargo, making it adaptable to different securement needs.
  4. Ease of Operation: Winch straps with Delta Rings are designed for straightforward use with standard truck-mounted winches. This allows for quick and efficient securing and releasing of cargo, which is beneficial for professional drivers and cargo handlers.
  5. Reliability in Demanding Conditions: Built for heavy-duty applications, these winch straps are engineered to perform reliably under the rigorous conditions of road transport, including exposure to varying weather and dynamic loads.
POLYESTER SLINGS PROCESS
The polyester slings process is roughly divided into: 1. Purchasing raw materials 2. Warping 3. Ribbon 4. Testing 5. Dyeing 6. Cutting 7. Sewing 8. Testing 9. Packing 10. Loading
Raw Material
1. Raw Material
Warping
2. Warping
Webbing
3. Webbing
Testing
4. Testing
Dyeing
5. Dyeing
Cutting
6. Cutting
Sewing
7. Sewing
Examination
8. Examination
Packing
9. Packing
Loading
10. Loading
