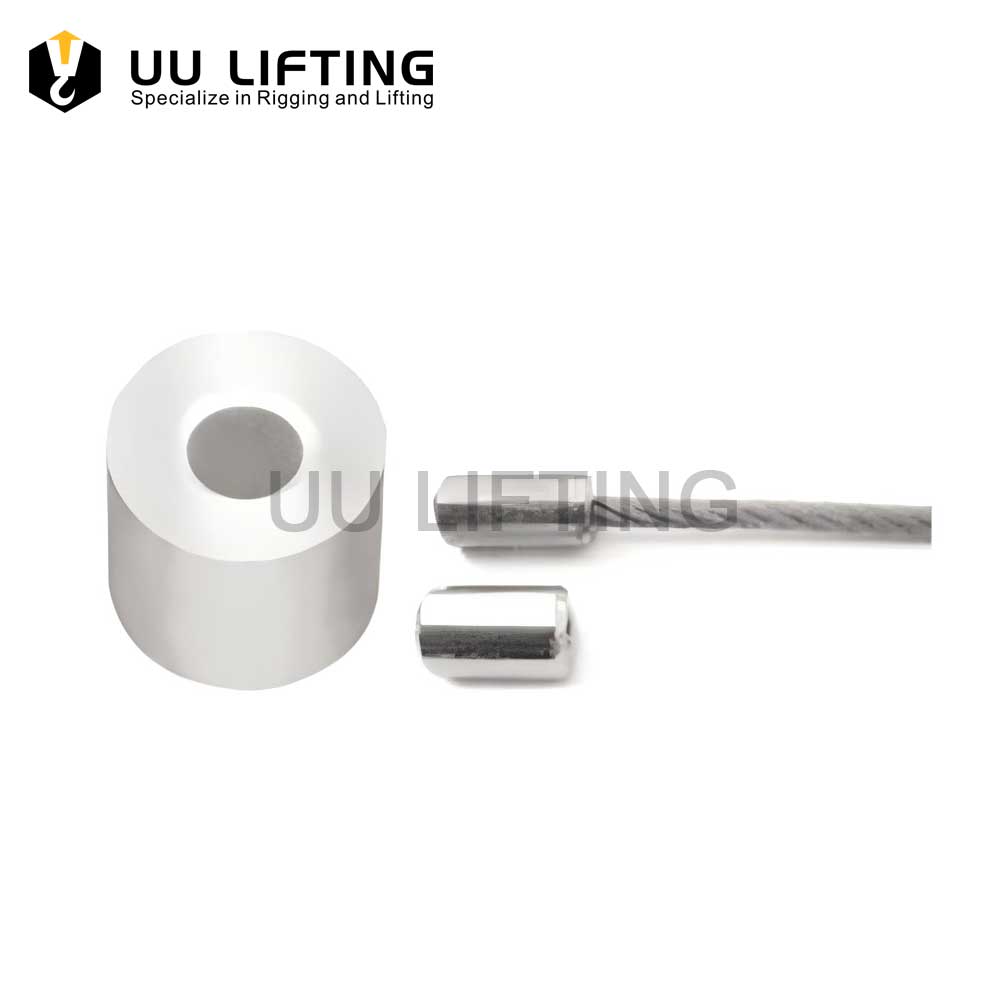

Aluminium Stop Buttons

Aluminum stop buttons are lightweight, strong fasteners for wires that are made from high-grade aluminum. They are used in a variety of applications, including construction and marine rigging.

Specification

Additional information

Sizes	From 3/64" to 5/8"

Description

Aluminium Stop Buttons Specifications:

MOQ	1 Pallet, 1 Ton or 3000USD
Size	From 3/64" to 5/8"

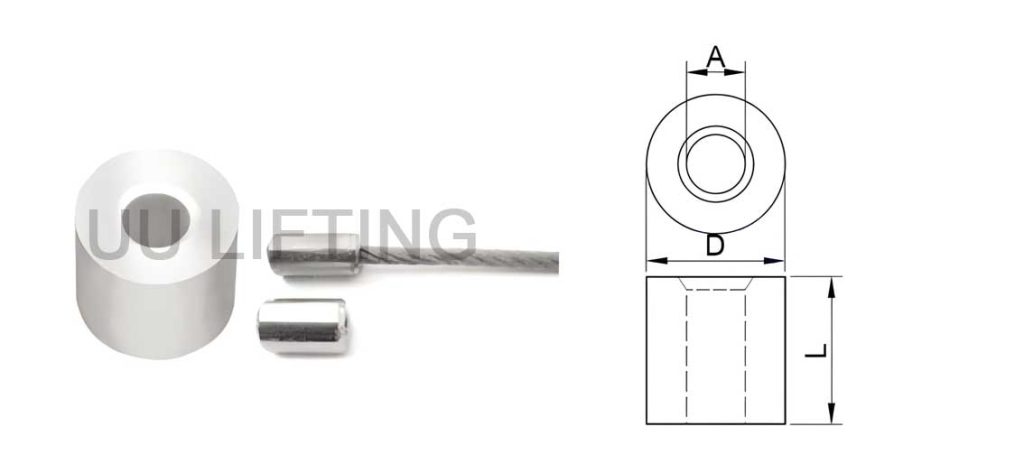

Aluminium Stop Buttons Sizes：

Aluminium Stop Buttons Sizes
Size	A	D	L	Weight
inch	mm	mm	mm	kg/1000pcs
3/64"	1.54	4.4	4.16	0.236
1/16"	1.92	6.35	4.16	0.278
5/64"	2.38	6.35	4.16	0.282
3/32"	2.9	8.72	7.95	1.05
1/8"	3.86	8.72	7.95	0.949
5/32"	4.7	11.11	8.73	1.76
3/16"	5.54	11.11	8.73	1.69
7/32"	6.35	11.11	8.73	1.50
1/4"	7.2	17.46	17.46	9.07
5/16"	9.53	17.46	17.46	7.46
3/8"	11.13	17.46	17.46	6.58
1/2"	14.28	26.98	26.98	30.32
9/16"	15.88	28.6	31.75	38.52
5/8"	17.46	31.75	31.75	47.88

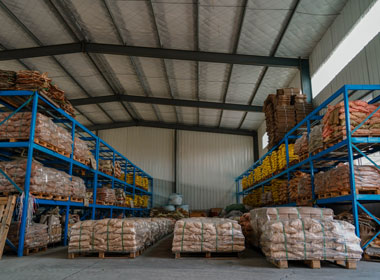

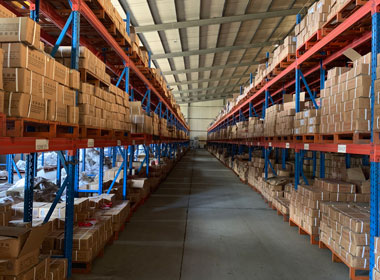

OUR FACTORY

Raw materials of our products are made of high-quality steel that meets the standards, and the raw materials are traceable. And multiple production lines and machines minimize lead times for rigging and lifting equipment.

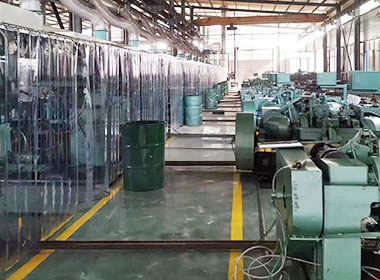

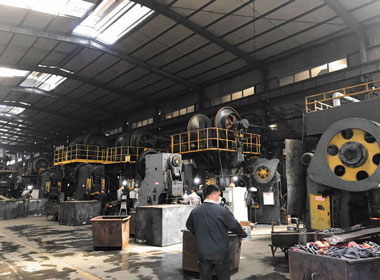

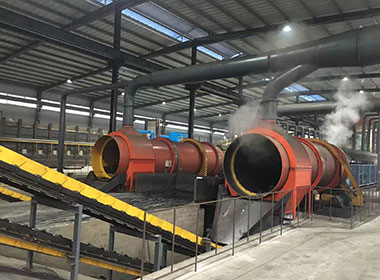

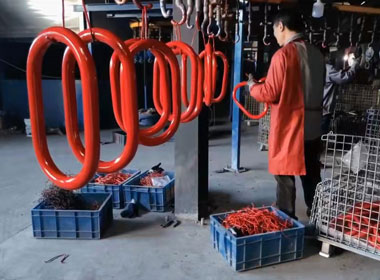

MANUFACTURING PROCESSES

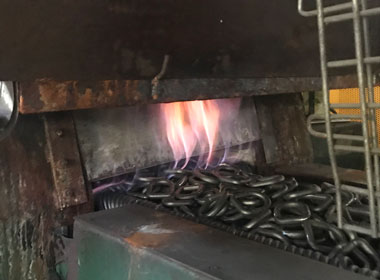

With eight automatic forging and semi-automatic forging line of up to 1600ton press machines and specialized drillng, tapping, heat treatment and inspection equipment. Strict and standardized production process ensures you receive perfect products.

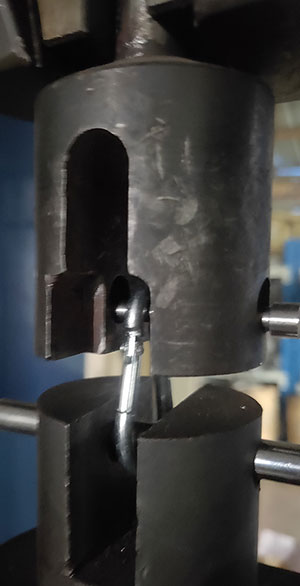

QUALITY CONTROL

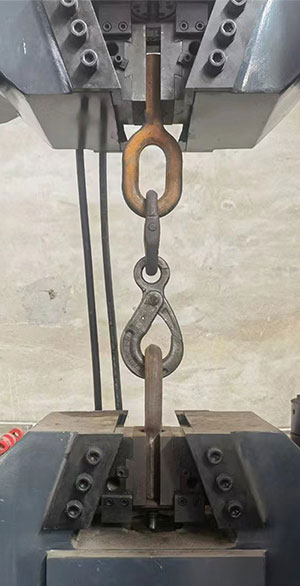

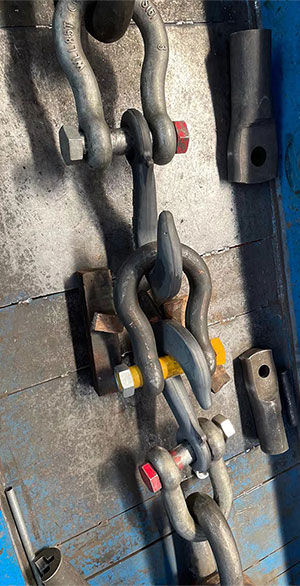

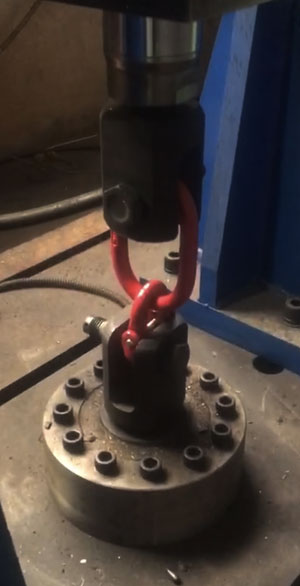

All rigging and lifting products are subjected to strict working tension and breaking the tension test. Complied with ISO9001 and CE certification. Our promise to you: Guaranteed safety at work for people and materials.
