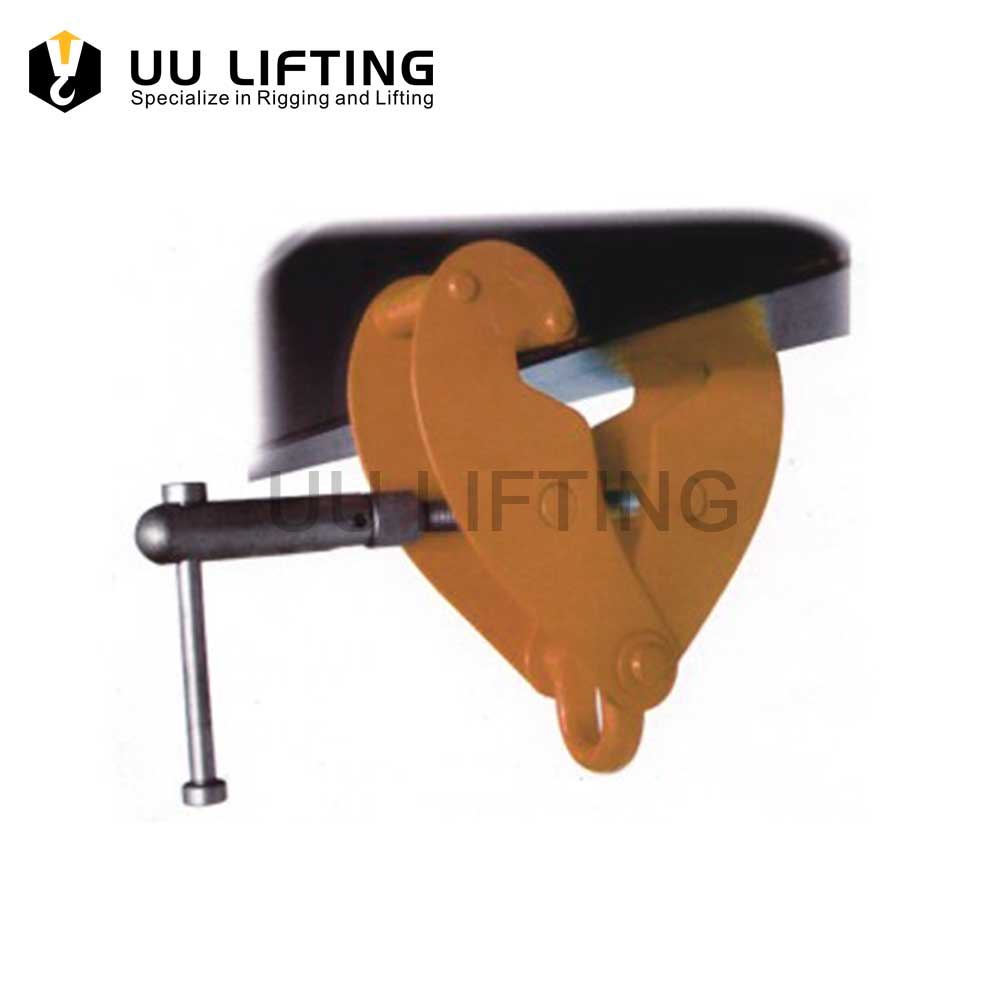

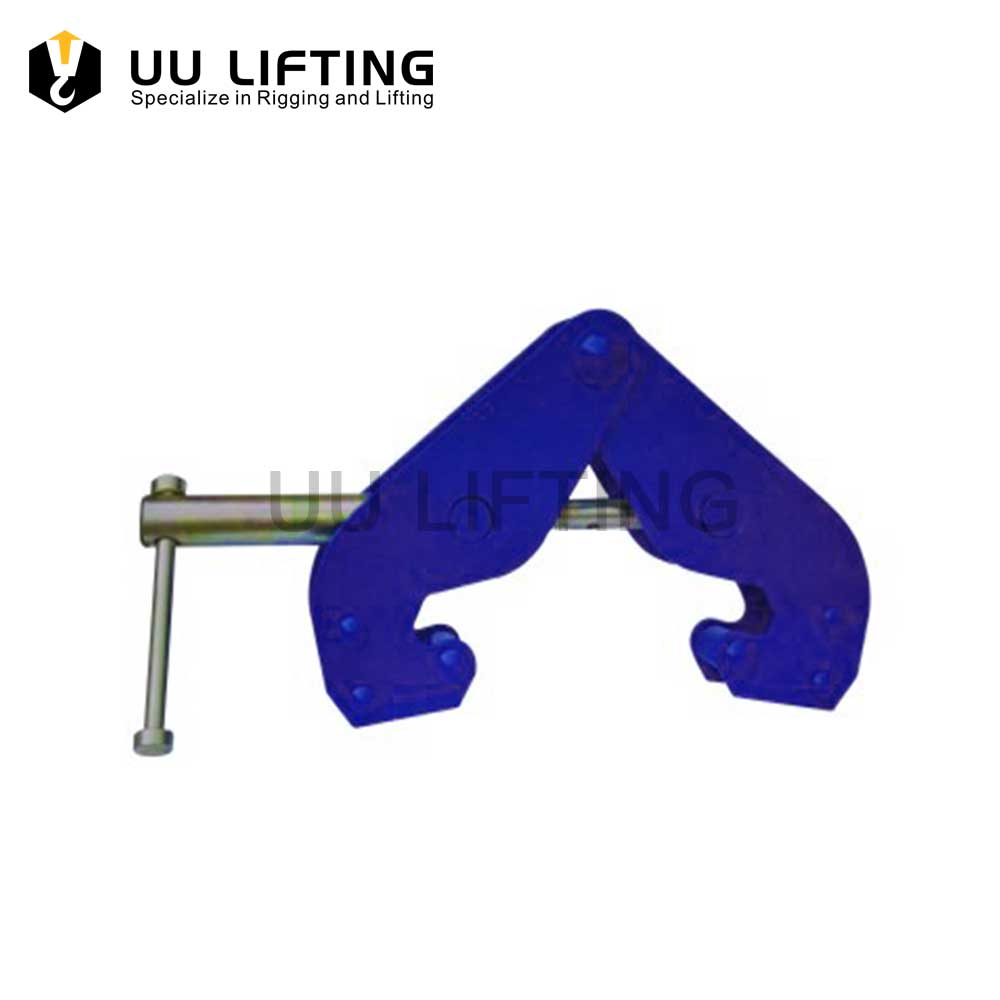

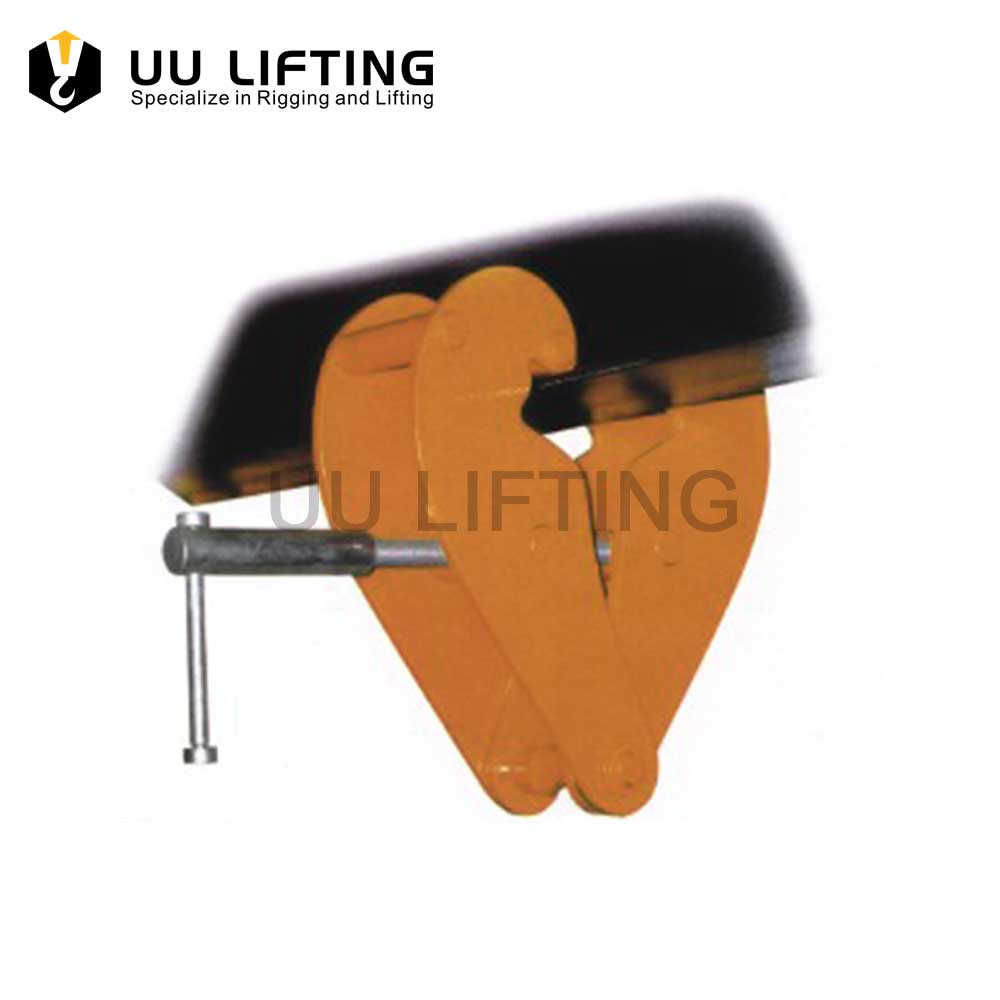

BC-A&B&C Beam Clamp

Categories Lift Tools & Handling Equipments, Lifting Clamps

This beam clamp is made from Alloy steel. Its adjustable opening range is 75 to 320 mm, and its lifting capacity is 1ton to 10ton.

Specification

Additional information

Rated Capacity	From 1Ton to 10 Ton
Adjustable Beam Width	From 75mm to 320mm
Application	Construction Area

Description

BC-A, B, C Beam Clamp Specifications：

MOQ	1 Pallet, 1 Ton or 3000USD
Rated Capacity	From 1Ton to 10Ton
N.W (Kg)	From 4kg to 16kg

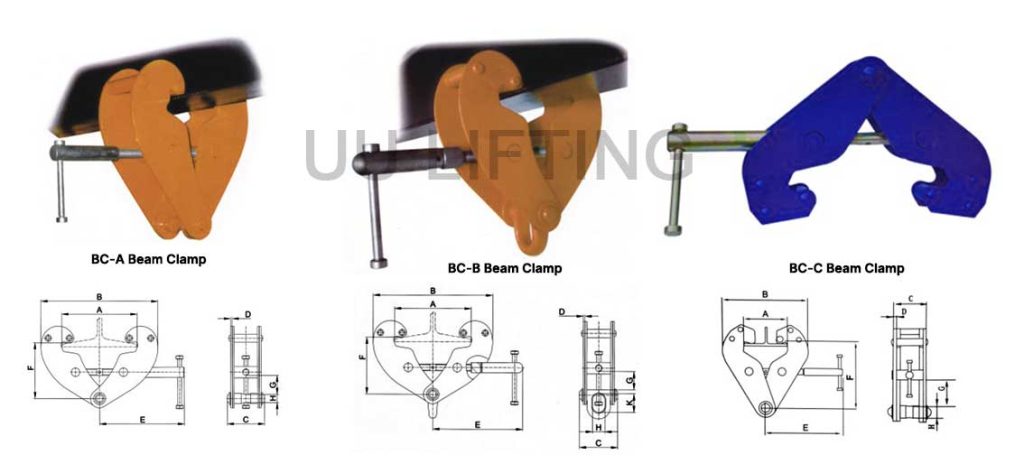

BC-A, B, C Beam Clamp Sizes：

Rated Capacity (T)	Test Load (KN)	Adjustable Beam Width (mm)	Dimensions(mm)											Net Weight (kg)
			A	B		C	D	E	F		G	H	K
			Max.	Min.	Max	C	D	E	Min.	Max.	G	H	K
1	12.5	75-230	240	192	367	94	4	194	102	154	22	20	-	4
2	25	75-230	240	192	367	102	6	194	102	154	22	20	-	4.8
3	37.5	80-345	355	243	520	132	8	241	133	223	38	22	-	9.8
5	62.5	80-345	355	243	520	142	10	241	133	223	35	28	-	11.6
10	125	90-350	360	272	532	180	12	284	133	234	47	38	-	17
1	12.5	75-230	240	192	367	94	4	218	103	155	20	30	45	4.2
2	25	75-230	240	192	367	102	6	218	103	155	20	30	45	5.1
3	37.5	80-320	330	243	491	132	8	258	157	223	47	45	63	10.4
5	62.5	80-320	330	243	491	142	10	258	157	223	47	45	63	12.2
10	125	90-320	330	259	501	180	12	293	175	235	56	64	95	18.8
1	12.5	75-230	260	200	360	64	5	215	102	155	25	18.5	-	4.5
2	25	75-230	260	200	360	74	6	215	102	155	25	22	-	5
3	37.5	80-320	354	235	490	103	8	278	140	225	45	24	-	9.5
5	62.5	80-320	354	235	490	110	10	278	140	225	45	28	-	11
10	125	90-320	365	320	505	120	12	280	170	235	50	40	-	16

What is the BC-A, B, C Beam Clamp?

The BC-A, B, C Beam Clamp is a piece of lifting equipment, specifically categorized under Lifting Clamps and Lift Tools & Handling Equipment. It is designed to be attached to beams, providing a temporary or semi-permanent lifting point. This type of clamp is primarily used in construction areas for various lifting and material handling tasks. It is constructed from alloy steel, which contributes to its strength and durability.

Key Specifications of the BC-A, B, C Beam Clamp

The BC-A, B, and C Beam Clamp comes with several notable specifications that define its capabilities. It offers a rated lifting capacity ranging from 1 ton to 10 tons, making it suitable for a variety of loads. The clamp features an adjustable opening, allowing it to fit beams with widths from 75mm to 320mm. The net weight of these clamps varies, typically ranging from around 4 kg to 16 kg, depending on the specific model and its capacity.

Advantages of the BC-A, B, C Beam Clamp

The BC-A, B, and C Beam Clamp offers several advantages for lifting operations:

Adjustability and Versatility: A primary advantage is its adjustable beam width range, from 75mm to 320mm. This allows the clamp to be used with a wide range of beam sizes, offering flexibility across various job sites and applications.
Robust Lifting Capacity: With a rated capacity ranging from 1 ton to 10 tons, these beam clamps are capable of handling substantial loads, making them suitable for heavy-duty lifting tasks in industrial and construction environments.
Durable Construction: Made from alloy steel, the clamp is designed for strength and longevity, ensuring it can withstand the rigors of demanding work environments and provide reliable performance.
Ease of Use: Beam clamps are generally designed for quick and secure attachment to beams, providing a convenient and efficient lifting point without the need for drilling or welding.
Suitability for Construction: Its design and specifications make it particularly well-suited for construction applications, where temporary and secure lifting points are often required.

OUR FACTORY

Raw materials of our products are made of high-quality steel that meets the standards, and the raw materials are traceable. And multiple production lines and machines minimize lead times for rigging and lifting equipment.

MANUFACTURING PROCESSES

With eight automatic forging and semi-automatic forging line of up to 1600ton press machines and specialized drillng, tapping, heat treatment and inspection equipment. Strict and standardized production process ensures you receive perfect products.

QUALITY CONTROL

All rigging and lifting products are subjected to strict working tension and breaking the tension test. Complied with ISO9001 and CE certification. Our promise to you: Guaranteed safety at work for people and materials.
