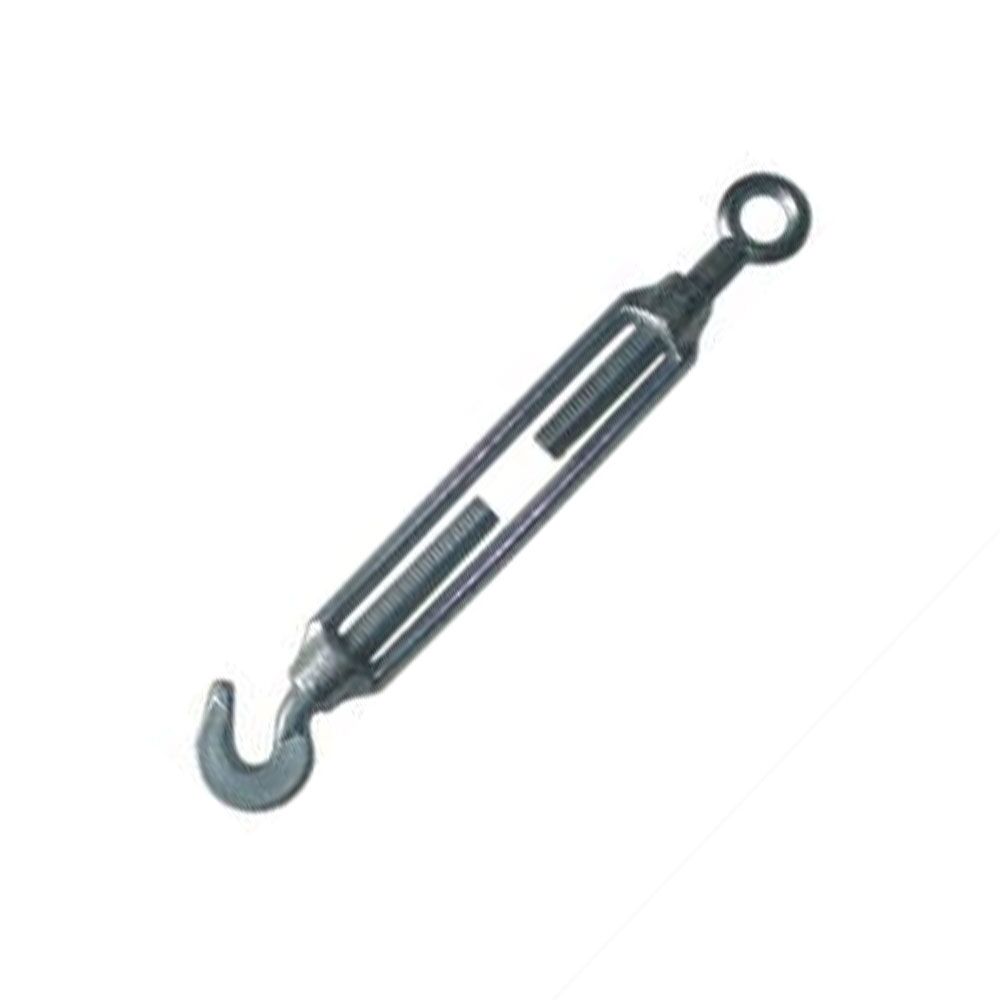

Commercial Type Turnbuckle Eye and Hook

The turnbuckle is used to tighten the wire rope and adjust the tightness. The OO type is used for occasions where it is not frequently disassembled, the CC type is used for occasions where it is frequently disassembled, and the CO type is used for occasions where one end is frequently disassembled.

Specification

Additional information

Material

Carbon Steel

Size

From 6mm to 24mm

Surface Treatment

Electro Galvanized

Production Process

Casting

Application

Overhead Lifting, Lashing, Towing

Description

Commercial Type Turnbuckle Eye and Hook Specifications:

MOQ1 Pallet, 1 Ton or 3000USD
MaterialCarbon Steel
Surface FinishElectro Galvanized
SizesFrom 6mm to 24mm
Technique ProcedureCasting
Safety Factor2 : 1
HS code732690

Commercial Type Turnbuckle Eye and Hook Sizes:

Commercial Type Turnbuckle Sizes

Commercial Type Turnbuckle Eye and Hook Sizes
Size (mm)W.L.L. (kg)Dimension(mm)Weight (kg/pc)
BCDEL
610014521512101000.16
820018528014121250.24
1030021032516141500.39
1250027543019182000.64
16100034554023242501.44
20150043567028263002.45
22220048074034323253.60
24300055583036363505.00



Key features:

The turnbuckle is used to tighten the wire rope and adjust the tightness. The OO type is used for occasions where it is not frequently disassembled, the CC type is used for occasions where it is frequently disassembled, and the CO type is used for occasions where one end is frequently disassembled. The other end is not frequently disassembled. The turnbuckle bolt is extended and retracted by the lead screw, which can adjust the tightness of the wire rope. The components can be bundled during component transportation and loose during installation and alignment.

The commercial type turnbuckle be used for tightening ropes, chains, and the like. Compared with a forged turnbuckle, its strength is lower. Mostly used in construction or light static load tensioning.

The turnbuckle is divided into three types: cast malleable steel, ordinary carbon steel, and forging according to different forming methods. There are mainly two kinds of ordinary carbon steel and forging in the market. The ordinary carbon steel flower orchid screws are mainly used for static binding and stability on unimportant occasions. Scenes, such as garden windbreaks, agricultural greenhouses, etc. Forged turnbuckle screws for lifting, cargo strapping reinforcement. Such as cargo bundling, sling connection, steel structure cable-rod connection, etc., in logistics.

Surface treatment: Generally, there are two kinds of electroplating and hot-dip plating, which mainly play a role in preventing rust.

Note: The turnbuckles are offered in different designs,eye-eye,eye-hook,hook-hook, jaw-jaw, and jaw-eye.



Stainless steel turnbuckles also can be available. If you are interested in our products, please get in touch with us.
