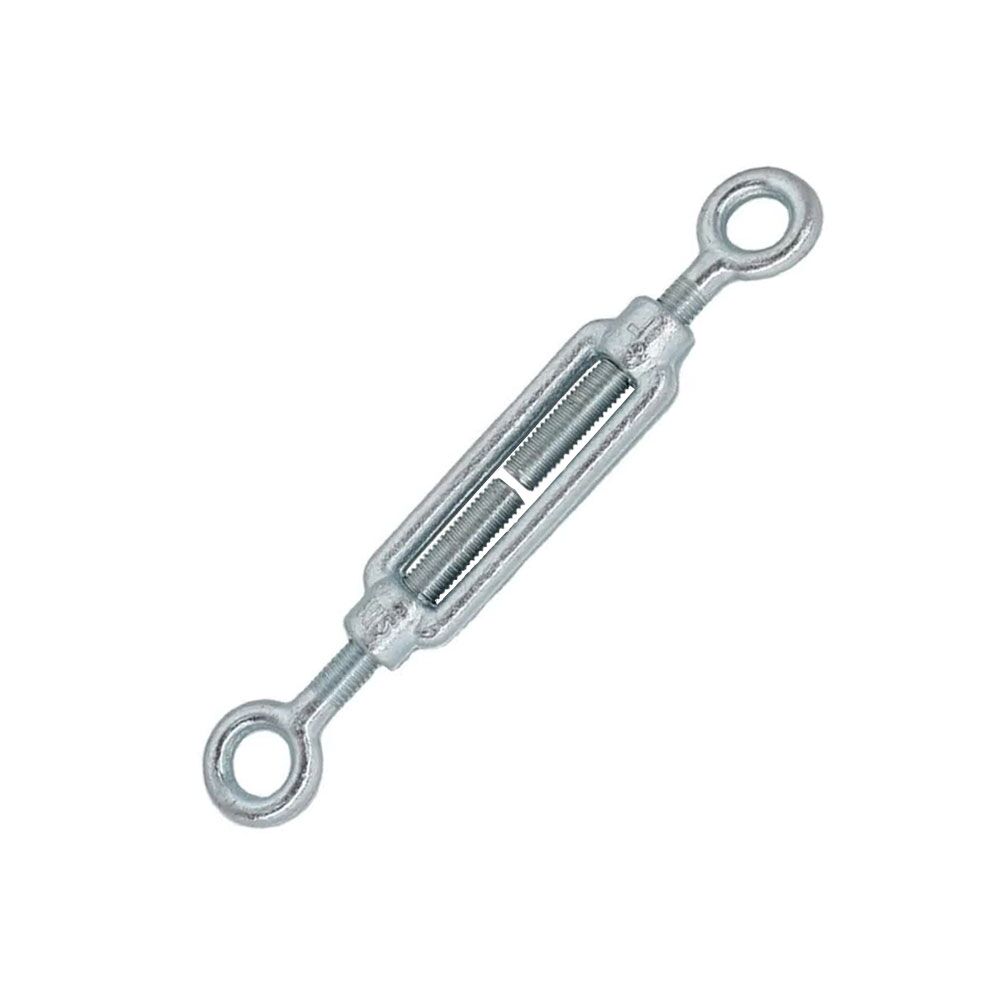

DIN 1480 Eye And Eye Turnbuckle

Strength and Durability: DIN 1480 Eye And Eye Turnbuckles are made from high-quality materials, which can withstand heavy loads and harsh conditions. This makes them ideal for various projects, including construction, rigging, and marine applications.

Specification

Additional information

Standard

DIN 1480 Type

Material

Carbon Steel

Size

From 5mm to 42mm

Surface Treatment

Hot dip galvanized, Electro Galvanized

Production Process

Drop forged

Application

Overhead Lifting, Lashing, Towing

Description

DIN 1480 Eye And Eye Turnbuckle Specifications:

MOQ1 Pallet, 1 Ton or 3000USD
MaterialCarbon Steel
Surface FinishHot dip galvanized, Electro Galvanized
SizesFrom 5mm to 42mm
Technique ProcedureDrop forged
Safety Factor5 : 1 or N/A
HS code732690

DIN 1480 Eye And Eye Turnbuckle Sizes:

DIN 1480 Eye And Eye Turnbuckle Sizes

DIN 1480 Eye And Eye Turnbuckle Sizes
Size (a) (mm)Dimensions (mm)Weight (kg)
bcdefgh
51141707057351680.07
616024611080552090.11
8168248110845722100.20
102103001251056831140.28
122223051251107035160.43
142443341401237540180.61
163004161701438847221.00
2033446620016510552241.60
2237252720018511860272.20
2441058725520813565272.80
3044060525522013571314.10
3349069029524514888366.00
3655474029527715894388.50
426008003003001701104911.00



Key features:

Easy Installation: These turnbuckles are designed for easy installation, with the eye ends allowing for quick attachment to anchor points. This saves time and effort during the setup process, ensuring your project can be completed efficiently.

The DIN 1480 Eye And Eye Turnbuckles are designed for easy installation, making them a convenient choice for any project. With their eye ends, these turnbuckles can be quickly and easily attached to anchor points, saving you time and effort during the setup process.

The easy installation feature of these turnbuckles allows you to complete your project efficiently without any hassle. Whether you are working on a construction site or a DIY project, the quick attachment to anchor points ensures you can get started immediately.

This feature is especially beneficial when working on time-sensitive projects or with limited resources. The easy installation of the DIN 1480 Eye And Eye Turnbuckles allows you to save valuable time and complete your project within the desired timeframe.

In addition to saving time, the easy installation also ensures that your project is set up securely. The eye ends of these turnbuckles provide a reliable attachment to anchor points, ensuring that everything is held firmly in place. This enhances the safety and stability of your project, giving you peace of mind knowing that everything is securely fastened.

Overall, the easy installation feature of the DIN 1480 Eye And Eye Turnbuckles makes them a practical choice for any project. Whether you are a professional contractor or a DIY enthusiast, these turnbuckles can simplify the setup process and ensure the success of your project.

OUR FACTORY
Raw materials of our products are made of high-quality steel that meets the standards, and the raw materials are traceable. And multiple production lines and machines minimize lead times for rigging and lifting equipment.
RAW-MATERIAL
Raw Material
Forged-Plant
Forged
Cast Process
Cast
Chain Process
Chain Machine
Heat Treatment Plant
Heat Treatment
Powder Plastified Plant
Powder Plastified
Package Plant
Package
Warehouse Plant
Warehouse
MANUFACTURING PROCESSES
With eight automatic forging and semi-automatic forging line of up to 1600ton press machines and specialized drillng, tapping, heat treatment and inspection equipment. Strict and standardized production process ensures you receive perfect products.
MANUFACTURING-PROCESSES-shackle
QUALITY CONTROL
All rigging and lifting products are subjected to strict working tension and breaking the tension test. Complied with ISO9001 and CE certification. Our promise to you: Guaranteed safety at work for people and materials.
G70 Chain Test
Chain Test
Clamp Test
Clamp Test
Hook Test
Hook Test
Link Test
Link Test
Shackle Tension Test
Shackle Tension Test
Snap Hook Test
Snap Hook Test
