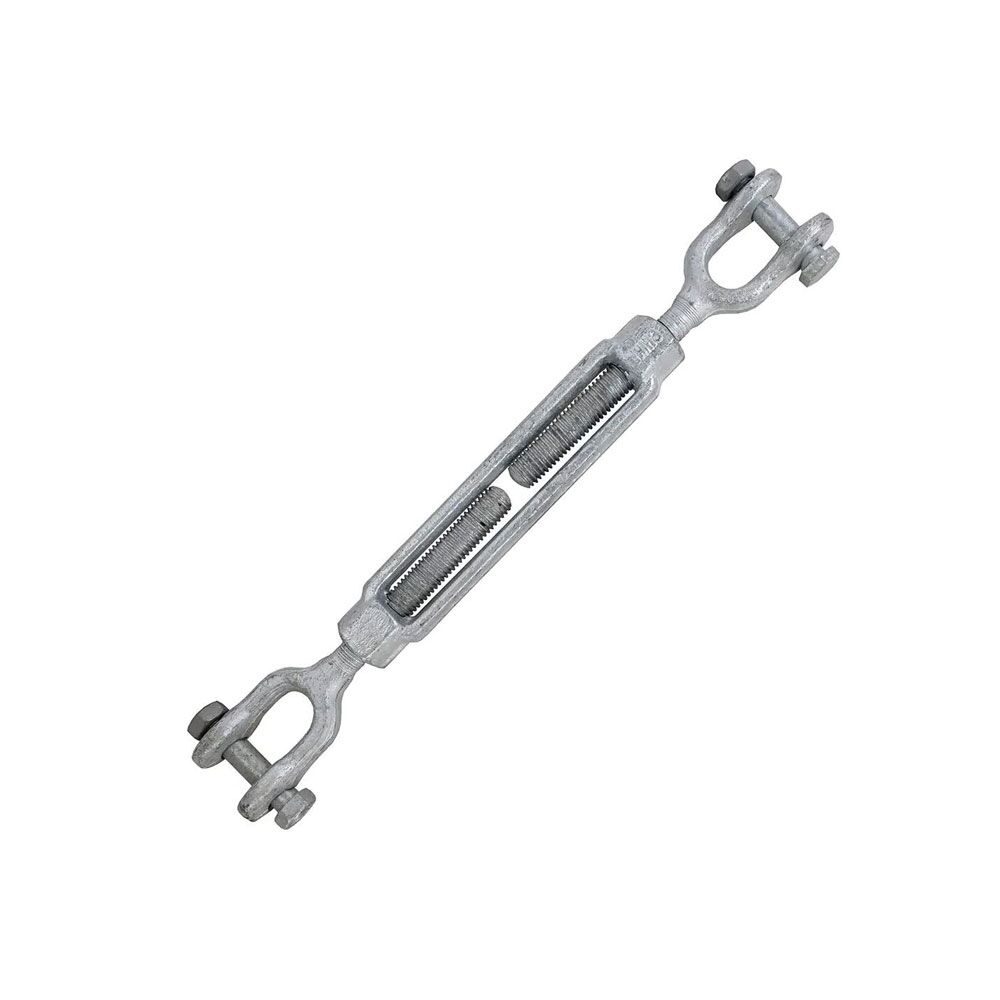

DIN 1480 Jaw And Jaw Turnbuckle

DIN 1480 jaw and jaw turnbuckles are widely used in various industries and applications due to their versatility and reliability. These turnbuckles are commonly used in construction, marine, and industrial settings.

Specification

Additional information

Standard

DIN 1480 Type

Material

Carbon Steel

Size

From 6mm to 36mm

Surface Treatment

Hot dip galvanized, Electro Galvanized

Production Process

Drop forged

Application

Overhead Lifting, Lashing, Towing

Description

DIN 1480 Jaw And Jaw Turnbuckle Specifications:

MOQ1 Pallet, 1 Ton or 3000USD
MaterialCarbon Steel
Surface FinishHot dip galvanized, Electro Galvanized
SizesFrom 6mm to 36mm
Technique ProcedureDrop forged
Safety Factor5 : 1 or N/A
HS code732690

DIN 1480 Jaw And Jaw Turnbuckle Sizes:

DIN 1480 Jaw And Jaw Turnbuckle Sizes

DIN 1480 Jaw And Jaw Turnbuckle Sizes
Size (a) (mm)Dimensions (mm)Weight (kg)
bcdefg
624032611086120650.093
824032011080120650.14
1030038912589150750.29
1230038312583150750.40
1433042014090165850.66
164005161701162001000.89
204405722001322201201.60
224405852201452201302.27
245206972551772601502.82
305206952551652601604.23
366007802951853001807.10



Key features:

Common Uses and Applications of DIN 1480 Jaw and Jaw Turnbuckles.

DIN 1480 jaw and jaw turnbuckles are widely used in various industries and applications due to their versatility and reliability. These turnbuckles are commonly used in construction, marine, and industrial settings. They are often used to tension cables, wires, and ropes, providing a secure and adjustable connection. Additionally, DIN 1480 jaw and jaw turnbuckles are frequently used in rigging and lifting operations and in agricultural and automotive applications. Their ability to withstand heavy loads and their durability makes them a popular choice for many professionals. Whether you need to secure a structure, tighten a cable, or adjust tension, the DIN 1480 jaw and jaw turnbuckle is a reliable and efficient solution.
