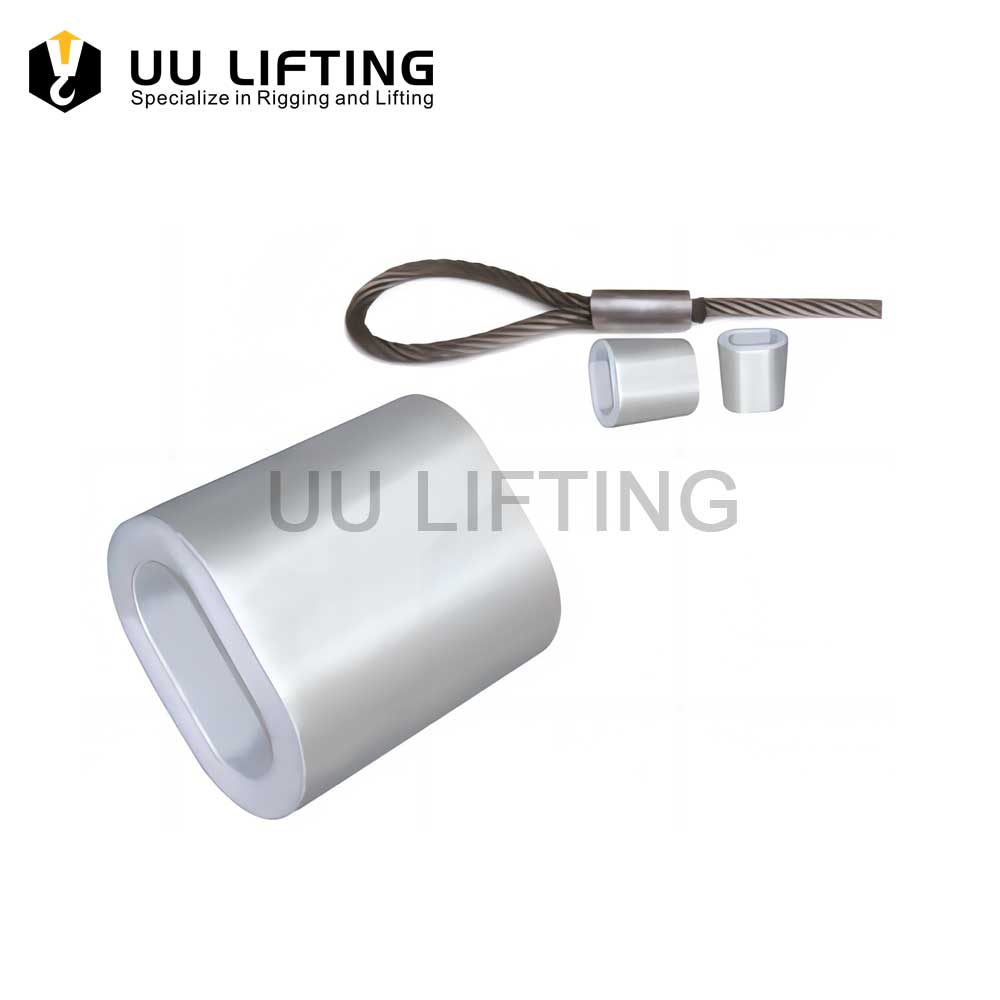

DIN 3093 Aluminium Ferrules

UULIFTING is a premier supplier of aluminum ferrules in China, offering top-tier DIN ferrules crafted from aluminum. These ferrules undergo a rigorous process of squeezing and machining to fulfill the stringent standards of DIN3093 (EN13411-3)

Specification

Additional information

Material

Aluminium

Sizes

From 1mm to 60mm

Standard

DIN3093(EN13411-3)

Application

Overhead Lifting, Lashing, Towing

Description

DIN 3093 Aluminium Ferrules Specifications:

MaterialAluminium
Surface finishHot Dipped Galvanized/Powder coated
SizesFrom 1mm to 60mm
StandardDIN 3093(EN 13411-3)
Technique ProcedureExtruded and squeezed by ferrule crimping tool & machined

DIN 3093 Aluminium Ferrules Sizes:

DIN 3093 Aluminium Ferrules Sizes

DIN 3093 Aluminium Ferrules Sizes
Ferrule Code.A(mm)B(mm)S(mm)L(mm)WeightL'(mm)
kgs/1000pcsGB6946-93
11.22.40.6550.098-
1.51.73.40.7560.176-
22.24.40.8570.285-
2.52.75.41.0590.439-
33.36.61.25110.907-
3.53.87.61.5131.18-
44.48.81.7141.63-
4.54.99.81.9162.39-
55.5112.1183.62-
66.613.22.5215.8725
6.57.214.42.7237.18-
77.815.62.9259.8330
88.817.63.32812.9634
99.919.83.73218.9438
1010.921.84.13524.0942
1112.124.24.53935.3547
1213.226.44.94244.1850
1314.228.45.44659.8655
1415.330.65.84973.559
1617.5356.75611167
1819.639.27.66315676
2021.743.48.47021784
2224.348.69.27729292
2426.452.81084376101
2628.55710.991481109
28316211.798603118
3033.166.212.5105739126
3235.270.413.4112897134
3437.875.614.21191077143
3639.879.6151261275152
3841.983.815.81331503160
40448816.61401734168
4246.292.417.51472024-
4448.496.818.31542314184
4650.6101.219.21612662-
4852.8105.6201683010200
505511020.81753412-
5257.2114.421.61823813216
5459.4118.822.51894293-
5661.6123.223.31964772232
5863.8127.624.22035326-
6066132252105880248
