Din 5299C Spring Snap Hook

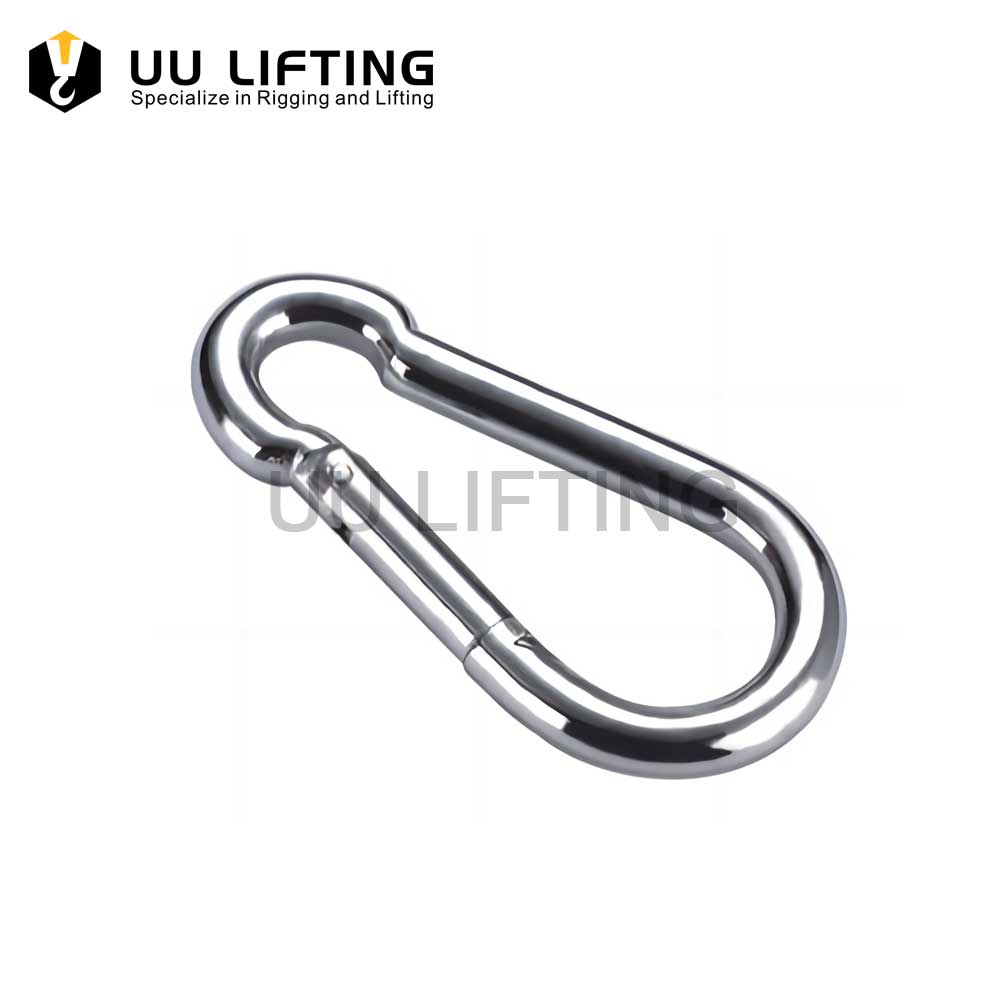

DIN 5299 C Spring Snap Hook

Categories ,

DIN 5299 C carbine snap hook, a carabiner spring snap hook, fire brigade snap hook, or carabiner hook, features an auto self-lock spring gate for fast on/off. We also have snap hook Din 5299 Form A available.DIN 5299C carbine snap hook is aka carabiner spring snap hook, fire brigage snap hook, or carabiner hook features an auto self-lock spring gate for fast on/off, we also have snap hook Din 5299 Form A for your option.

Specification

Additional information

Material

High Tensile Steel
Sizes

From 4mm x 40mm to 15mm x 200mm
Surface

Electric Galvanized
Standard

DIN Type
Application

Overhead Lifting, Lashing, Towing
ASK FOR A QUOTE

Description

DIN 5299 C Spring Snap Hook Specifications:

MaterialHigh Tensile Steel
Surface finishZinc plated
SizesFrom 4mm x 40mm to 15mm x 200mm
ProcessingStamping
Applicationhiking, camping and general outdoor Not for overhead lifting
HS code732690

DIN 5299 C Spring Snap Hook Sizes：

Din 5299C Spring Snap Hook Sizes

Din 5299C Spring Snap Hook Sizes
SIZEDimensions (mm)SWLN.W.
(mm)ABCDL(lbs)kg/100pcs
4X4020663.85401000.78
5X5024.787.64.8501601.49
6X60295.98.65.8602602.5
7X7034.51010.66.8703354.3
8X803912117.7803506.1
9X904413128.7904008.6
10X1004914.9149.310042511.9
11X12057.919.71910.612060018
12X14067202511.614080025
13X16079222912.5160130033.2
14X18086.5263213.5180160043.9
15X20096283714.5200180055.6
OUR FACTORY
Raw materials of our products are made of high-quality steel that meets the standards, and the raw materials are traceable. And multiple production lines and machines minimize lead times for rigging and lifting equipment.
RAW-MATERIAL
Raw Material
Forged-Plant
Forged
Cast Process
Cast
Chain Process
Chain Machine
Heat Treatment Plant
Heat Treatment
Powder Plastified Plant
Powder Plastified
Package Plant
Package
Warehouse Plant
Warehouse
MANUFACTURING PROCESSES
With eight automatic forging and semi-automatic forging line of up to 1600ton press machines and specialized drillng, tapping, heat treatment and inspection equipment. Strict and standardized production process ensures you receive perfect products.
MANUFACTURING-PROCESSES-shackle
QUALITY CONTROL
All rigging and lifting products are subjected to strict working tension and breaking the tension test. Complied with ISO9001 and CE certification. Our promise to you: Guaranteed safety at work for people and materials.
G70 Chain Test
Chain Test
Clamp Test
Clamp Test
Hook Test
Hook Test
Link Test
Link Test
Shackle Tension Test
Shackle Tension Test
Snap Hook Test
Snap Hook Test
