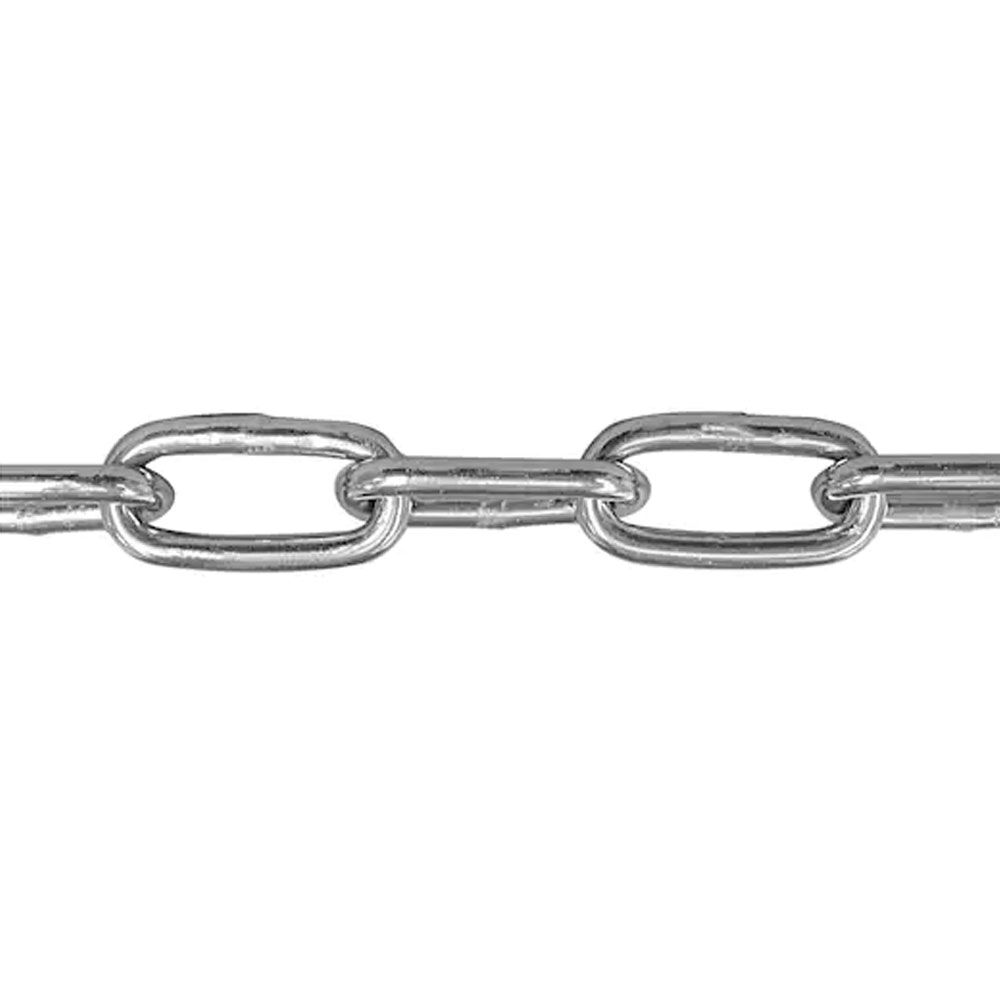

Din 763 Round Steel Chain

Din 763 Round Steel Chain

Categories ,

Specification

Additional information

ASK FOR A QUOTE

Description

Din 763 Chain

ø mm nominal size d (mm) split t (mm) inner width b1 min. (mm) outer width b2 max. (mm) weight kg/m working load limit kg
4 32 7,2 16.8 0,27 100
5 35 9,0 21.0 0,43 160
6 42 10,8 25.2 0,63 200
7 49 12,6 29.4 0,86 300
8 52 14,4 33.6 1,10 400
10 65 18,0 42 1,75 630
13 82 23,4 54.6 2,95 1000
16 100 28,8 67.2 4,45 1600
ø mm nominal size d split t (mm) inner width b1 min. (mm)   weight kg/m working load limit kg

What is Din 763 Round Steel Chain?

Din 763 Round Steel Chain is a specific type of chain made from steel. The ‘DIN 763’ part of its name indicates that it conforms to a particular German industrial standard (DIN stands for Deutsches Institut für Normung). This standard likely defines its dimensions, material properties, and other manufacturing specifications. The description ‘Round Steel Chain’ clarifies that the links of the chain are made from round steel bars. According to the provided information from UU Lifting, this chain is part of their ‘Chain Series’ product line and is classified under ‘Ordinary Chain’.

Advantages of Din 763 Round Steel Chain

The provided reference materials list Din 763 Round Steel Chain as one of the chain products offered. However, these materials do not specify the distinct advantages of this particular type of chain. Therefore, based solely on the information given, a detailed list of its specific benefits or advantages cannot be provided.

OUR FACTORY
Raw materials of our products are made of high-quality steel that meets the standards, and the raw materials are traceable. And multiple production lines and machines minimize lead times for rigging and lifting equipment.
RAW-MATERIAL
Raw Material
Forged-Plant
Forged
Cast Process
Cast
Chain Process
Chain Machine
Heat Treatment Plant
Heat Treatment
Powder Plastified Plant
Powder Plastified
Package Plant
Package
Warehouse Plant
Warehouse
MANUFACTURING PROCESSES
With eight automatic forging and semi-automatic forging line of up to 1600ton press machines and specialized drillng, tapping, heat treatment and inspection equipment. Strict and standardized production process ensures you receive perfect products.
MANUFACTURING-PROCESSES-shackle
QUALITY CONTROL
All rigging and lifting products are subjected to strict working tension and breaking the tension test. Complied with ISO9001 and CE certification. Our promise to you: Guaranteed safety at work for people and materials.
G70 Chain Test
Chain Test
Clamp Test
Clamp Test
Hook Test
Hook Test
Link Test
Link Test
Shackle Tension Test
Shackle Tension Test
Snap Hook Test
Snap Hook Test
