DIN5299A Snap Hook With Eyelet

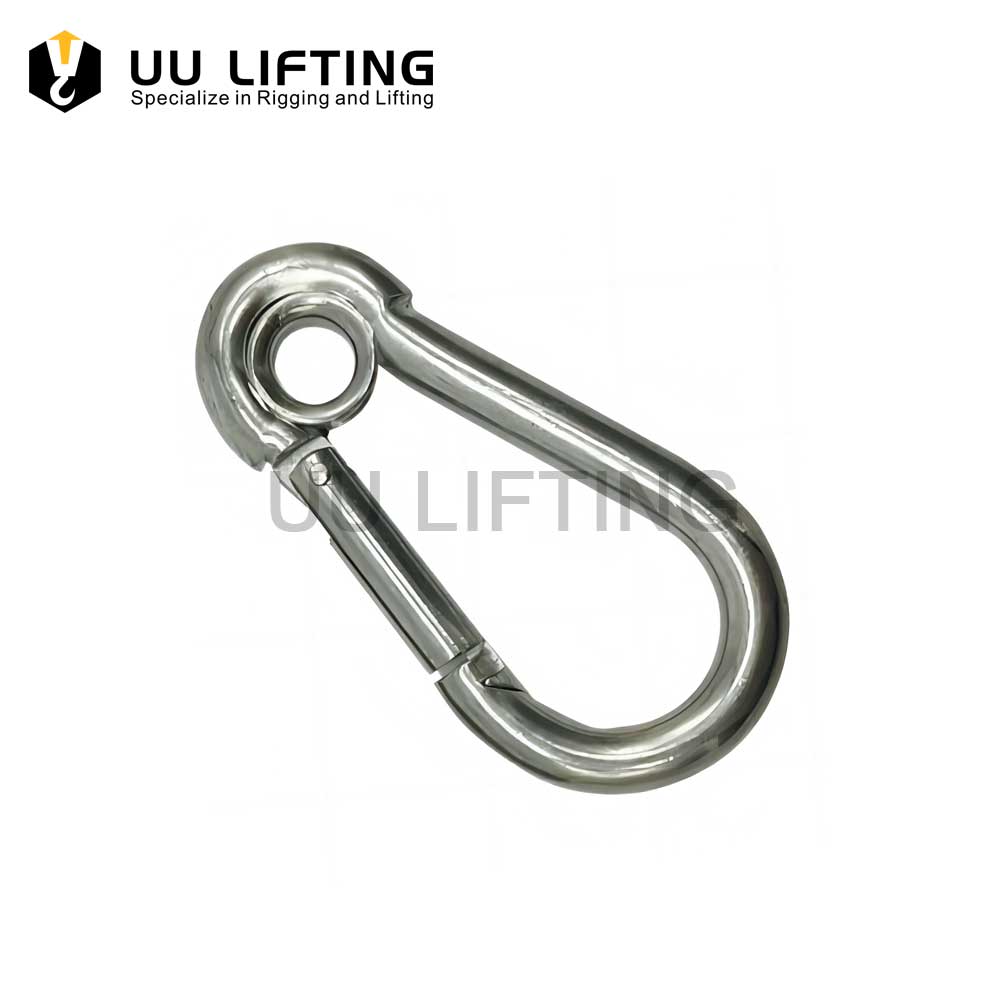

DIN 5299 A Snap Hook with Eyelet

Categories ,

The DIN 5299 A Snap Hook with Eyelet is designed as a carabiner-style spring snap hook equipped with an eyelet. It includes an automatic self-locking spring and a grommet eyelet, ensuring secure locking under the designated load capacity through elastic deformation.

Specification

Additional information

Material

High Tensile Steel
Sizes

From 4mm x 40mm to 14mm x 180mm
Surface

Electric Galvanized
Standard

DIN Type
Application

Overhead Lifting, Lashing, Towing
ASK FOR A QUOTE

Description

DIN 5299 A Snap Hook with Eyelet Specifications:

MaterialHigh Tensile Steel
Surface finishZinc plated
SizesFrom 4mm x 40mm to 14mm x 180mm
ProcessingStamping
Applicationhiking, camping and general outdoor Not for overhead lifting
HS code732690

DIN 5299 A Snap Hook with Eyelet Sizes：

DIN5299A Snap Hook With Eyelet Sizes

DIN5299A Snap Hook With Eyelet Sizes
SIZE
(mm)		Dimensions (mm)N.W.
kg/100pcs
ABCDL
4x40204.763.85400.82
5x5024.56.27.64.8501.58
6x60297.18.65.8602.69
7x7034.58.810.66.8704.3
8x80399.7117.7806.39
9x904410128.7909.4
10x1004911.8149.610012.6
11x12057.917.51910.612018.5
12x1406717.62511.614026
13x16079192912.516034
14x18086.521.83213.518045.5
OUR FACTORY
Raw materials of our products are made of high-quality steel that meets the standards, and the raw materials are traceable. And multiple production lines and machines minimize lead times for rigging and lifting equipment.
RAW-MATERIAL
Raw Material
Forged-Plant
Forged
Cast Process
Cast
Chain Process
Chain Machine
Heat Treatment Plant
Heat Treatment
Powder Plastified Plant
Powder Plastified
Package Plant
Package
Warehouse Plant
Warehouse
MANUFACTURING PROCESSES
With eight automatic forging and semi-automatic forging line of up to 1600ton press machines and specialized drillng, tapping, heat treatment and inspection equipment. Strict and standardized production process ensures you receive perfect products.
MANUFACTURING-PROCESSES-shackle
QUALITY CONTROL
All rigging and lifting products are subjected to strict working tension and breaking the tension test. Complied with ISO9001 and CE certification. Our promise to you: Guaranteed safety at work for people and materials.
G70 Chain Test
Chain Test
Clamp Test
Clamp Test
Hook Test
Hook Test
Link Test
Link Test
Shackle Tension Test
Shackle Tension Test
Snap Hook Test
Snap Hook Test
