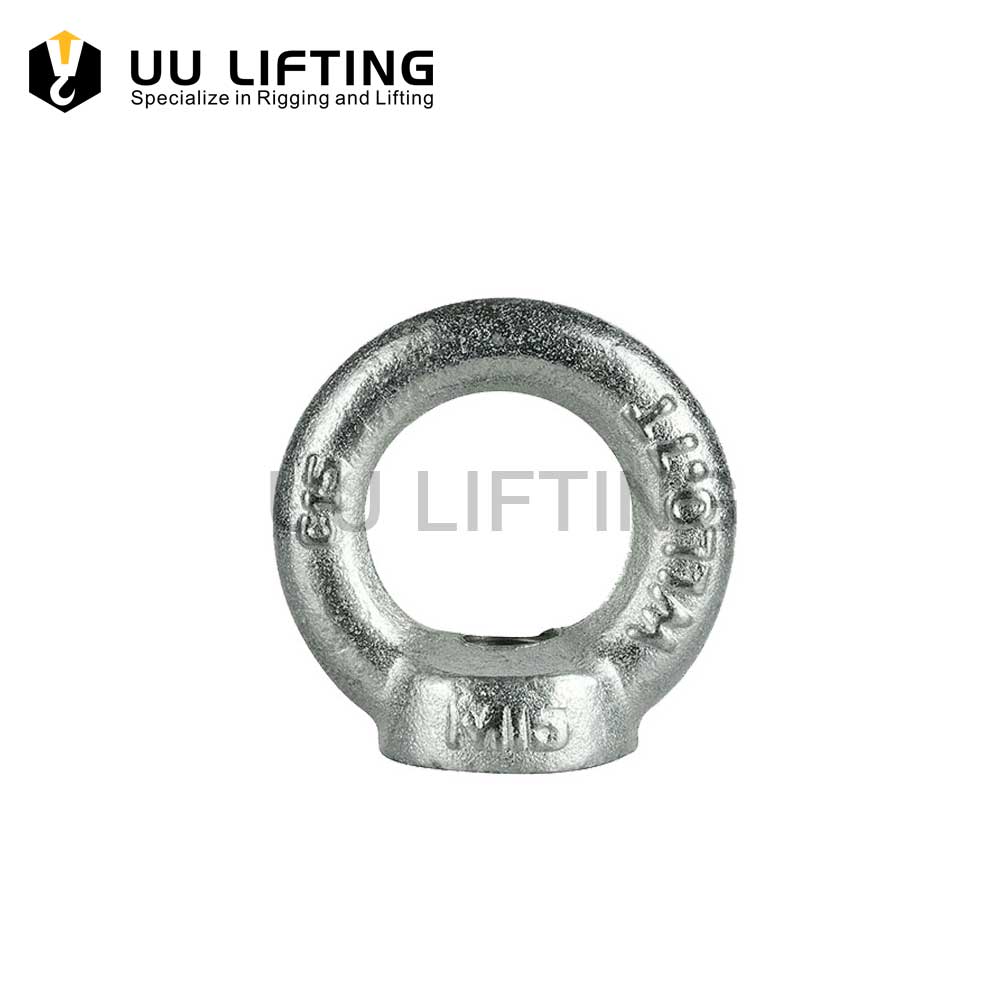

DIN 582 Eye Nut

The DIN 582 eye nut is a shouldered, or collared, lifting eye with metric threads. Lifting eye nuts are female threaded and are designed for use with a threaded shank.

Specification

Additional information

Material

High Tensile Steel / C15

Sizes

From 6mm to 64mm

Surface

Electro-Galvanized (Zinc Plated)

Standard

DIN Type

Application

Overhead Lifting, Lashing, Towing

Description

DIN 582 Eye Nut Specifications:

MaterialHigh Tensile Steel / C15 or C15E
Surface finishHot Dipped Galvanized / Electro-Galvanized (Zinc Plated)
SizesFrom 6mm to 64mm
ProcessingDrop Forged , Machining , Quenched and Tempered
HS code732690

DIN 582 Eye Nut Sizes:

DIN582 Eye Nut Sizes

DIN582 Eye Nut Sizes
SizeW.L.LDimensions (mm)Weight Each
(mm)(ton.)d1d2d3d4ehkkg/pc
M60.07M617281663160.06
M80.14M820362063680.08
M100.23M10254525845100.17
M120.34M123054301053120.18
M140.49M143563351262140.29
M160.7M163563351262140.29
M201.2M 204072401471160.45
M221.5M224581451680180.67
M241.8M245090501690200.87
M272.5M275090501890200.88
M303.2M30651086018109241.66
M334.3M33651086022109241.72
M364.6M36751267022128282.65
M396.1M39751267026128282.80
M427M42851448030147324.03
M458M45851448030147324.25
M488.6M481001669035168366.38
M529.9M521001669035168366.66
M5617.5M5611018410038187428.80
M6416M64120206110422084812.40

DIN 582 Eye Nut

DIN 582 Eye Nuts are generally used as a removable lifting point where a rated nut can be utilized. Also can be used as a termination for chain, wire rope and other assemblies where required. The following guidelines for lifting eye nuts DIN 582 have to be observed in addition to the load values in the above table. The eye nut must be fully screwd in to ideally contact the two mating faces. Both threads must be of an equal length and base material of equal strength to that of the nut. The official DIN standard sheet specifies the additional sizes M42, M48, M56, M64, M72 x 6, M80 x 6 and M100 x 6.

The DIN 582 eye nut is a shouldered, or collared, lifting eye with metric threads. Lifting eye nuts are female-threaded and are designed for use with a threaded shank. They are primarily used for permanent mounting to industrial machinery or equipment for lifting, rigging, or lashing or as an anchor point for other rigging hardware. While the shoulder pattern provides excellent stability at the base of the eye to accommodate angular loads, consult specifications for WLLs before conducting lifts. Eye Nuts are recommended primarily for zero-degree, in-line lifts. WLLs are reduced significantly for non-axial loads.

Non-machined lifting eye bolts and lifting eye nuts are usually supplied as semi-finished forged pieces (sand-blasted).White zinc-plated lifting eye bolts and nuts (minimum 8 microns) and hot-dip galvanized lifting eye bolts and nuts (minimum 78 microns) are also ready for immediate delivery. Other surface treatments are available upon request (yellow zinc plating, dacromet, painting, etc.).

OUR FACTORY
Raw materials of our products are made of high-quality steel that meets the standards, and the raw materials are traceable. And multiple production lines and machines minimize lead times for rigging and lifting equipment.
RAW-MATERIAL
Raw Material
Forged-Plant
Forged
Cast Process
Cast
Chain Process
Chain Machine
Heat Treatment Plant
Heat Treatment
Powder Plastified Plant
Powder Plastified
Package Plant
Package
Warehouse Plant
Warehouse
MANUFACTURING PROCESSES
With eight automatic forging and semi-automatic forging line of up to 1600ton press machines and specialized drillng, tapping, heat treatment and inspection equipment. Strict and standardized production process ensures you receive perfect products.
MANUFACTURING-PROCESSES-shackle
QUALITY CONTROL
All rigging and lifting products are subjected to strict working tension and breaking the tension test. Complied with ISO9001 and CE certification. Our promise to you: Guaranteed safety at work for people and materials.
