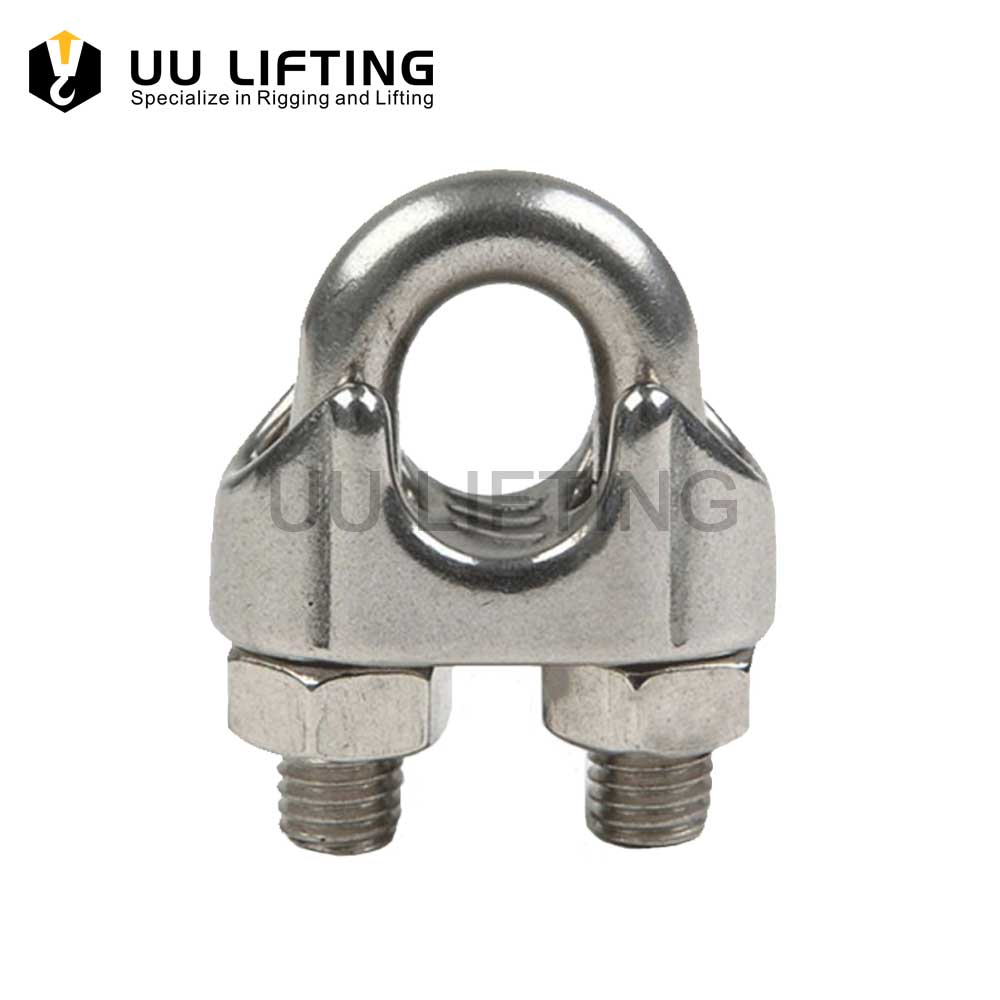

DIN741 Stainless Steel Wire Rope Clips

The DIN741 Stainless Steel Wire Rope Clip is a type of hardware used for creating loops in wire ropes or securing wire ropes’ ends.

Specification

Additional information

Material

grade 316 or 304 stainless steel

Surface finish

High polished finish

Sizes

From 3mm to 22mm

Technique Procedure

Precision cast

Description

DIN741 Stainless Steel Wire Rope Clips Specifications:

MOQ1 Pallet, 1 Ton or 3000USD
MaterialGrade 316 or 304 stainless steel
Surface finishHigh polished finish
SizesFrom 3mm to 22mm
Technique ProcedurePrecision cast
HS code732690

DIN741 Stainless Steel Wire Rope Clips Sizes:

DIN741 Stainless Steel Wire Rope Clips Sizes

DIN741 Stainless Steel Wire Rope Clips Sizes
Diameter Rope(mm.)Dimensions(mm.)
ABCDEFG
3910124102116
41010124102217
51111135102319
61312155112623
81614196153028
101918228173434
122019228183636
1425233010224447
1629263312265051
1932293812305463
2237334414346171



DIN741 Stainless Steel Wire Rope Clips Sizes

The DIN741 Stainless Steel Wire Rope Clip is a type of hardware used for creating loops in wire ropes or securing wire ropes’ ends. It is designed according to the DIN 741 standard, which specifies the dimensions and requirements for this kind of clip. Made of stainless steel, it is resistant to corrosion and suitable for various applications, especially where durability and strength are required, such as in marine environments or heavy-duty lifting. The clip usually consists of a U-shaped bolt, a saddle, and two nuts, allowing for easy installation and adjustment.

OUR FACTORY
Raw materials of our products are made of high-quality steel that meets the standards, and the raw materials are traceable. And multiple production lines and machines minimize lead times for rigging and lifting equipment.
RAW-MATERIAL
Raw Material
Forged-Plant
Forged
Cast Process
Cast
Chain Process
Chain Machine
Heat Treatment Plant
Heat Treatment
Powder Plastified Plant
Powder Plastified
Package Plant
Package
Warehouse Plant
Warehouse
MANUFACTURING PROCESSES
With eight automatic forging and semi-automatic forging line of up to 1600ton press machines and specialized drillng, tapping, heat treatment and inspection equipment. Strict and standardized production process ensures you receive perfect products.
MANUFACTURING PROCESSES
QUALITY CONTROL
All rigging and lifting products are subjected to strict working tension and breaking the tension test. Complied with ISO9001 and CE certification. Our promise to you: Guaranteed safety at work for people and materials.
