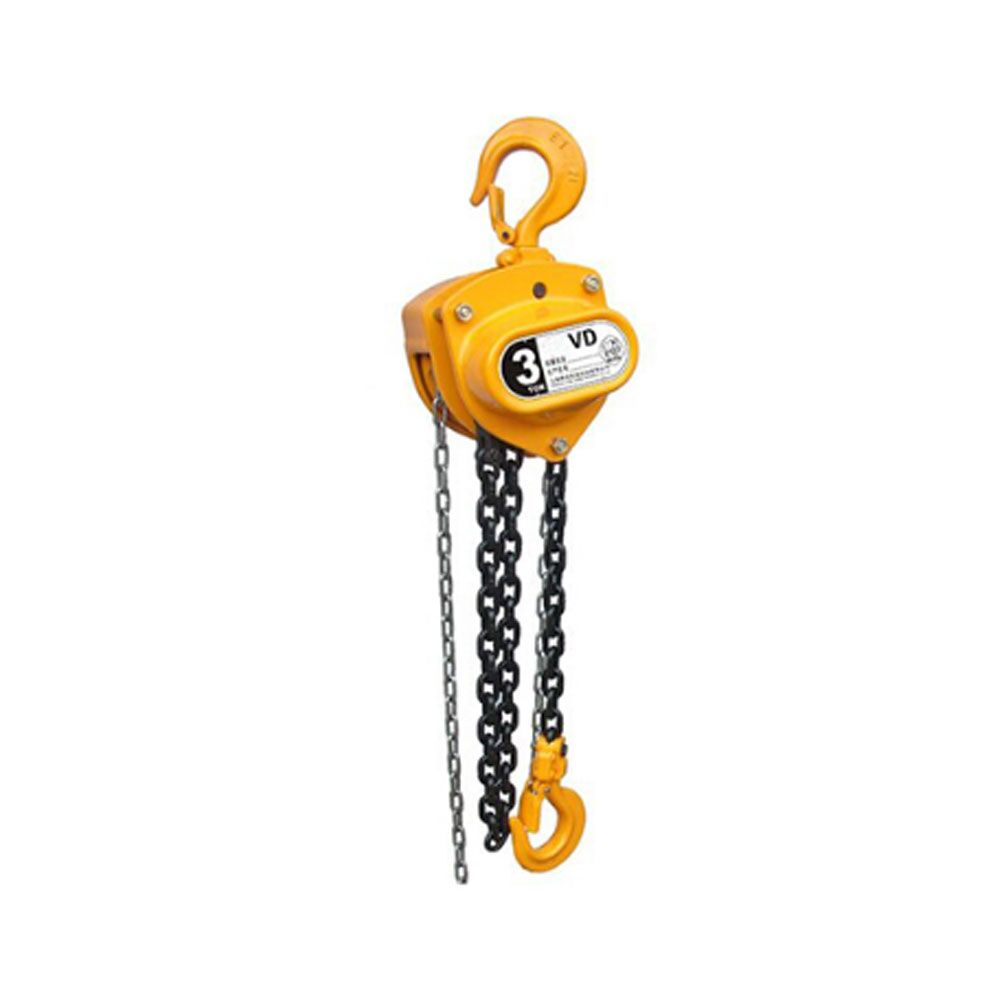

Double Bearing VD Chain Hoist

VD type chain hoist is an improved product, the mechanism is more reasonable, the volume is small, the Japanese double bearing design chain pulls more smoothly, avoids the phenomenon of chain kack, etc.

Specification

Additional information

Capacities

0.5T to 30T

Certificate

CE and ISO9001

Production Process

Automatic Double-Pawl Braking System

Surface Treatment

Drop forged Hooks and Hook Holders

Description

VD type chain hoist is an improved product, the mechanism is more reasonable, the volume is small, the Japanese double bearing design chain pulls more smoothly, avoids the phenomenon of chain kack, etc., close to the market, has been selling well in domestic and foreign markets, is a kind It is widely used and portable. It can be used for industrial, agricultural construction, mining and other machine installations, cargo lifting, vehicle unloading, etc. It is especially suitable for open-air and non-power operation

VD type double bearing chain hoists

  1. Japanese technology, high-end embossing process of the shell
  2. Low-alloy structural board, safe and reliable, durable
  3. Adopt 80-level high-strength lifting chain, high safety factor and long service life
  4. Smooth rotation, high efficiency, hand Small pulling force
  5. Double pawl and double guide wheel structure, safer and more reliable. Theproduct has been widely used in nuclear power, thermal power transmission and transformation, etc.Compact design-smaller body and lightweight design for low headroom applications and use in confined areas.Alloy steel hook-industrial rated hooks rotate360 degrees for easy rigging.

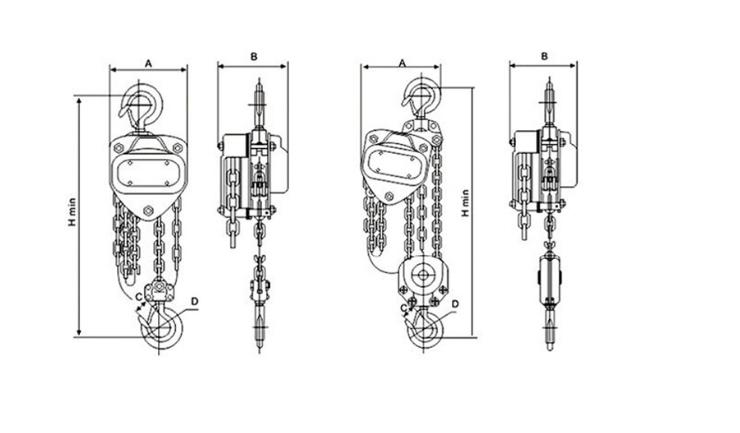

VD Chain Hoist

model VD-1/2 VD-1 VD-1 1/2 VD-2 VD-3 VD-5 VD-10 VD-20 VD-30 VD-50
Lifting weight (tons) 0.5 1 1.5 2 3 5 10 20 30 50
Standard lifting height (m) 2.5 2.5 2.5 3 3 3 3 3 3 3
Test load (tons) 0.75 1.5 2.25 3 4.5 7.5 12.5 25 27.5 62.5
Minimum distance between two hooks (mm) 270 270 368 444 486 616 700 890 980 1300
Bracelet pull at full load (Newton) 225 309 343 314 343 383 392 392 450*2 450*2
Lifting chain number 1 1 1 1 2 2 4 8 12 twenty two
Lifting chain round steel diameter (mm) 6 6 8 6 8 10 10 10 10 10
Packing weight (kg) 12 13 20 17 28 45 83 193
Packing size (length X width X height) cm 28X21X17 30X24X18 34X29X20 33X25X19 38X30X20 45X35X24 62X50X28 70X46X75
Weight (kg) for each additional 1 meter of lifting height 1.6 1.6 1.9 2.2 3 4.6 9.6 19.4 28.3 50



OUR FACTORY
Raw materials of our products are made of high-quality steel that meets the standards, and the raw materials are traceable. And multiple production lines and machines minimize lead times for rigging and lifting equipment.
RAW-MATERIAL
Raw Material
Forged-Plant
Forged
Cast Process
Cast
Chain Process
Chain Machine
Heat Treatment Plant
Heat Treatment
Powder Plastified Plant
Powder Plastified
Package Plant
Package
Warehouse Plant
Warehouse
MANUFACTURING PROCESSES
With eight automatic forging and semi-automatic forging line of up to 1600ton press machines and specialized drillng, tapping, heat treatment and inspection equipment. Strict and standardized production process ensures you receive perfect products.
MANUFACTURING-PROCESSES-shackle
QUALITY CONTROL
All rigging and lifting products are subjected to strict working tension and breaking the tension test. Complied with ISO9001 and CE certification. Our promise to you: Guaranteed safety at work for people and materials.
G70 Chain Test
Chain Test
Clamp Test
Clamp Test
Hook Test
Hook Test
Link Test
Link Test
Shackle Tension Test
Shackle Tension Test
Snap Hook Test
Snap Hook Test
