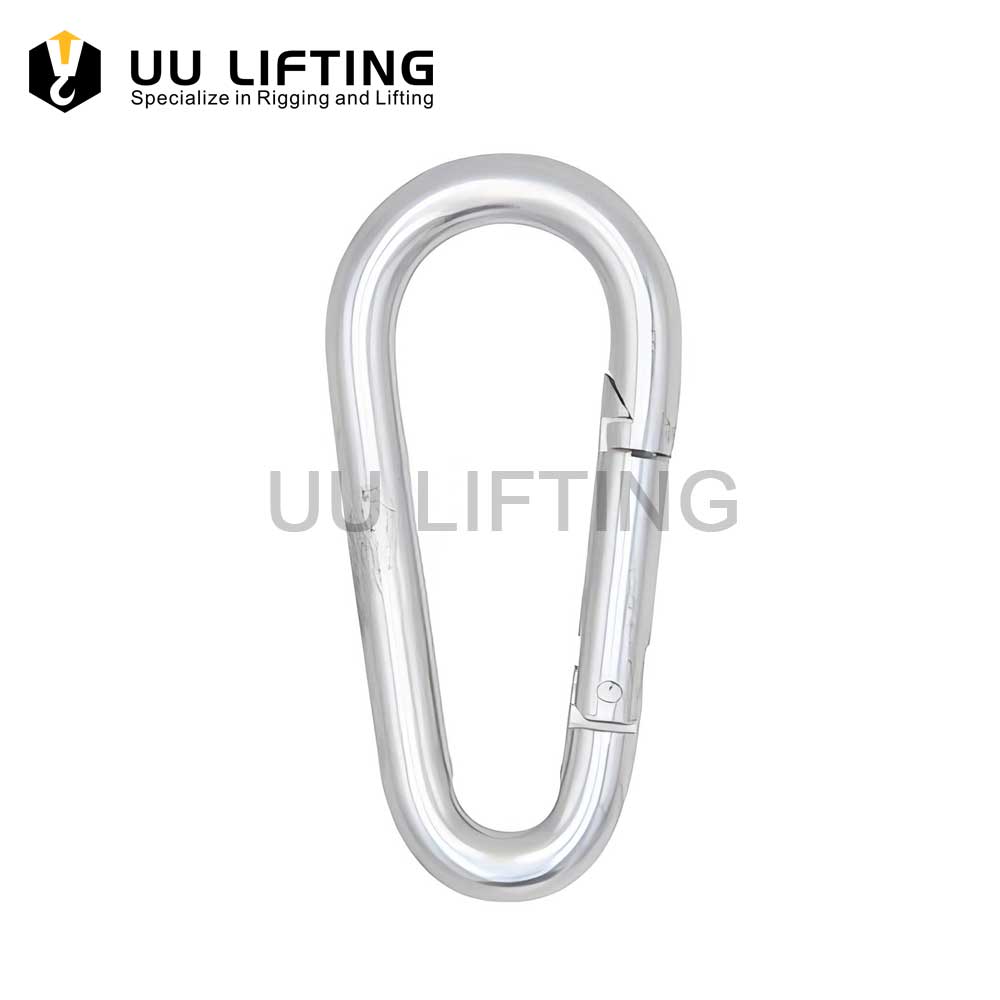

Egg Type Snap Hook

Categories Carabiner Snap Hooks and Quick Links, Rigging Hardware

Egg Type Snap Hook can connect ropes, chains, cables, or end links quickly. They are commonly used in many industries, including marine boat hardware, camping, and dog leashes.

Specification

Additional information

Sizes	From 5X50mm to 12X140mm
Application	Marine, Sports, Climbing, Architectural, Industrial, Security

Description

Egg Type Snap Hook Specifications:

MOQ	1 Pallet, 1 Ton or 3000USD
Size	From 5X50mm to 12X140mm

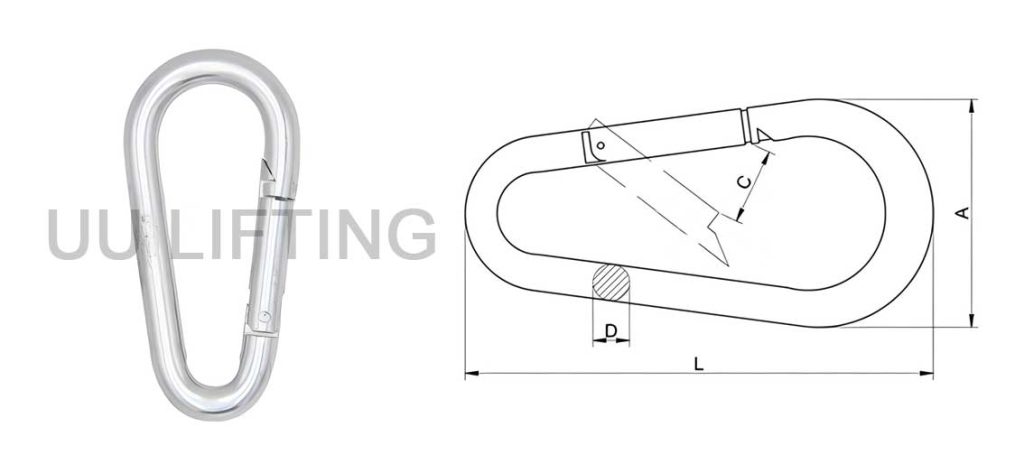

Egg Type Snap Hook Sizes：

Egg Type Snap Hook Sizes
Size (mm)	SWL (lbs)	Dimensions (mm)				Weight (kg/100pcs)
Size (mm)	SWL (lbs)	A	C	D	L	Weight (kg/100pcs)
5X50	100.00	25.00	7.00	5.00	50.00	1.60
6X60	140.00	30.00	8.00	6.00	60.00	2.60
7X70	200.00	35.00	10.00	7.00	70.00	4.35
8X80	250.00	40.00	11.00	8.00	80.00	6.40
9X90	280.00	45.00	12.00	9.00	90.00	9.30
10X100	400.00	50.00	15.00	10.00	100.00	12.50
11X120	500.00	57.00	17.00	11.00	120.00	19.50
12X140	600.00	67.00	21.00	12.00	140.00	25.00

OUR FACTORY

Raw materials of our products are made of high-quality steel that meets the standards, and the raw materials are traceable. And multiple production lines and machines minimize lead times for rigging and lifting equipment.

MANUFACTURING PROCESSES

With eight automatic forging and semi-automatic forging line of up to 1600ton press machines and specialized drillng, tapping, heat treatment and inspection equipment. Strict and standardized production process ensures you receive perfect products.

QUALITY CONTROL

All rigging and lifting products are subjected to strict working tension and breaking the tension test. Complied with ISO9001 and CE certification. Our promise to you: Guaranteed safety at work for people and materials.
