Endless Webbing Slings

Specification

Additional information

Safety factor

5:1, 6:1, 7:1, 8:1

Width

25-300MM

Length

LayeUL

One layer to four layeUL

Color

Color code

Characteristic

PU impregnated ,Low elongation

Standard

ISO4878 EN1492-1 ASME B30.9

Certificate

CE/GS

Package

Single packed in shrinking foil or plastic with Certificate of Conformity

Customized

Logo Print on the webbing is available

Description

The endless webbing sling is economical, and many ways exist to change different focus points. We can make single-layer or multi-layer flat ring slings according to customer needs. The safety factor from 5:1 to 8:1 is available. We make these products according to ISO4878 and EN1492-1, complying with GS CE safety requirements. CustomeUL could choose a special length base on special requirements.

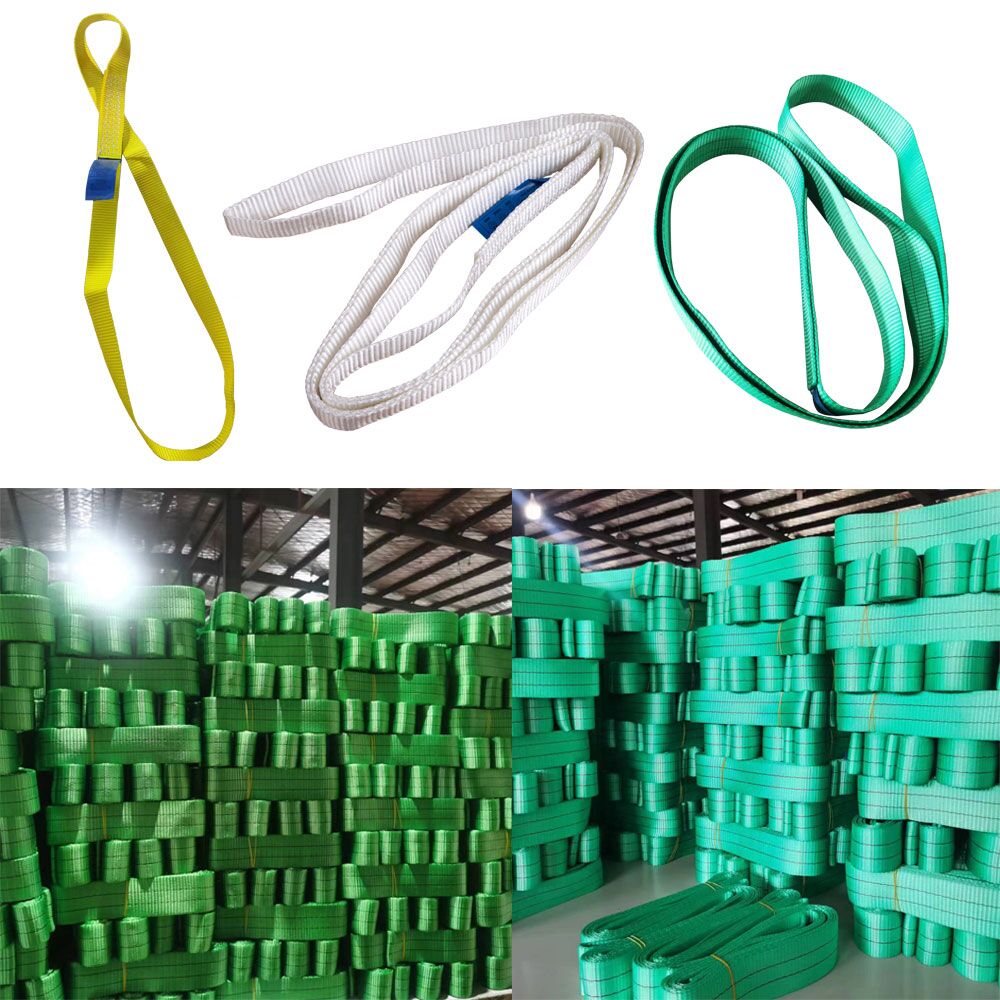

Endless Webbing Slings-4

Model WLL Popular Color Approx Approx Width(mm)
Thickness 5:1 7:1
(mm)
UL050-01 500KG WHITE 3 25MM 25MM
UL075-02 750KG WHITE 3 35MM 35MM
UL080-03 800KG WHITE 3 35MM 35MM
UL12-04 1200KG WHITE 3 50MM 50MM
UL15-05 1500KG WHITE 3 50MM 50MM
UL10-06 1000KG Violet 3 25MM 30MM/50MM
UL20-07 2000KG Green 3 50MM 50MM/60MM
UL30-08 3000KG Yellow 3.5 75MM 90MM
DIN60005-2006 EN1492-1+A1:2008



Understand the Different Types of Endless Webbing Slings.

Before choosing the right endless webbing sling for your needs, it’s important to understand the different types available. The most common types include polyester, nylon, and polypropylene slings. Polyester slings are known for their strength and durability, while nylon slings are more flexible and resistant to abrasions. Polypropylene slings are lightweight and affordable but not as strong as polyester or nylon. Consider the weight and type of load you will be lifting when selecting the material for your endless webbing sling.

Determine the Load Capacity You Need.

The load capacity of an endless webbing sling is the maximum weight it can safely lift. Determining the load capacity you need before selecting a sling is important. To do this, you’ll need to know the weight of the load you’ll be lifting and any additional factors that may affect the load, such as the angle of the lift or the number of slings being used. Always choose a sling with a load capacity that exceeds the weight of your load to ensure safe lifting.

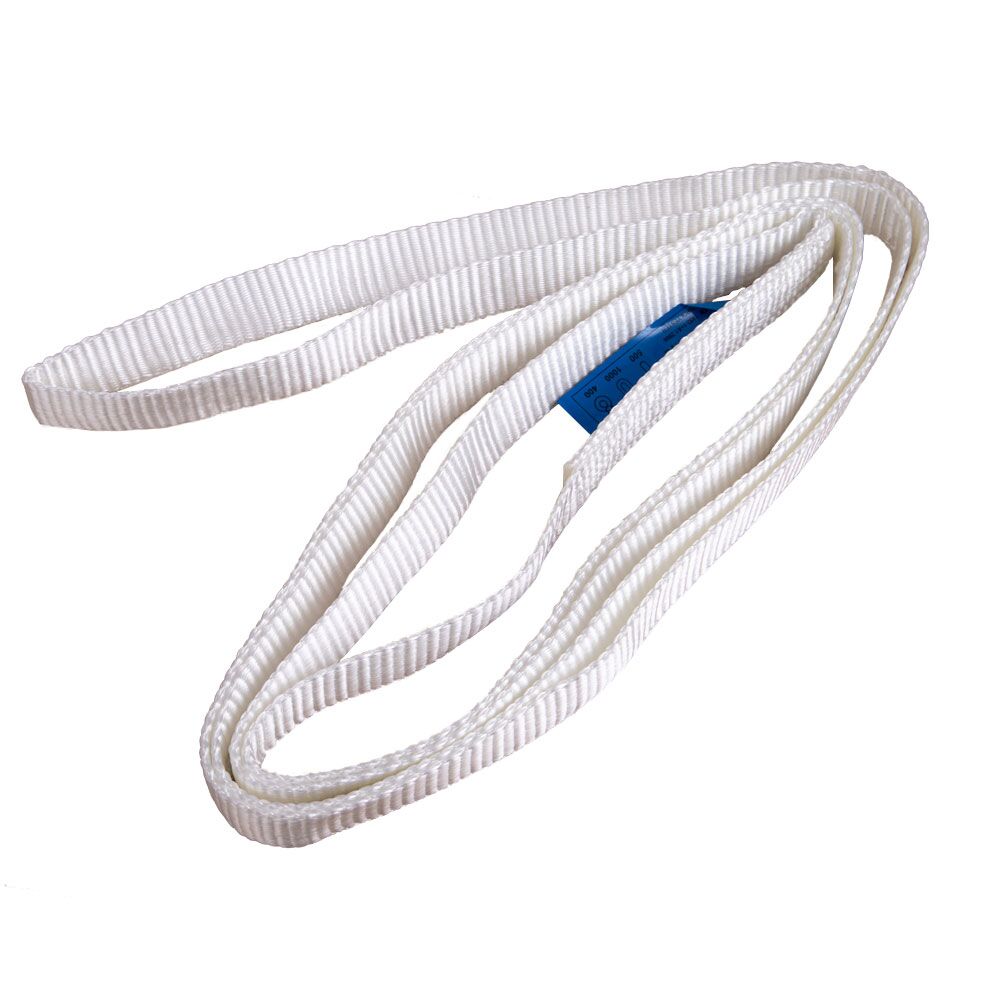

Endless Webbing Slings-3
Endless Webbing Slings

Consider the Length and Width of the Sling.

When choosing an endless webbing sling, it’s important to consider the length and width of the sling. The length of the sling will determine how much of the load it can support, while the width will affect the overall strength and durability of the sling. Be sure to choose a sling that is long enough to safely support your load and wide enough to provide the necessary strength and durability. Additionally, consider the sling’s material, as different materials may have different load capacities and durability levels.

Look for Durability and Strength.

When selecting an endless webbing sling, it’s crucial to prioritize durability and strength. The sling should be able to withstand the weight of the load without breaking or tearing. Look for slings made from high-quality materials such as polyester or nylon, which are known for their strength and durability. Additionally, consider the weight capacity of the sling and ensure that it can safely support the weight of your load. Don’t compromise on quality when it comes to selecting an endless webbing sling, as it could lead to dangerous and costly accidents.

POLYESTER SLINGS PROCESS
The polyester slings process is roughly divided into: 1. Purchasing raw materials 2. Warping 3. Ribbon 4. Testing 5. Dyeing 6. Cutting 7. Sewing 8. Testing 9. Packing 10. Loading
Raw Material
1. Raw Material
Warping
2. Warping
Webbing
3. Webbing
Testing
4. Testing
Dyeing
5. Dyeing
Cutting
6. Cutting
Sewing
7. Sewing
Examination
8. Examination
Packing
9. Packing
Loading
10. Loading
