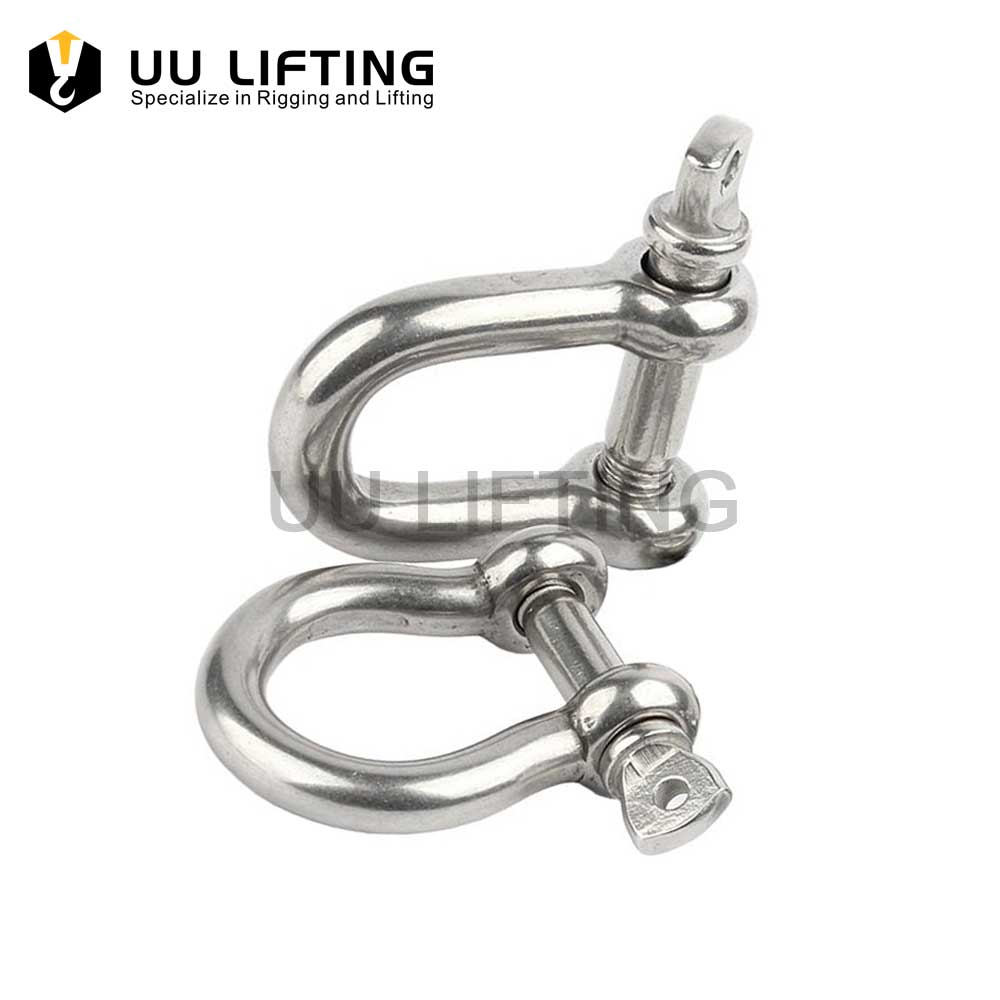

EU/JIS Stainless Steel Bow Shackle

EU/JIS Stainless Steel Bow Shackle Sizes
Size	A (mm)		B (mm)		C (mm)		D (mm)		E (mm)		Work Load Limit (kg)
mm	EU	JIS	EU	JIS	EU	JIS	EU	JIS	EU	JIS	EU	JIS
4	16	16	8	8	8	8	4	4	12	14		50
5	20	19	10	10	10	10	5	5	15	16		80
6	24	25	12	12	12	12	6	6	18	20		100
8	32	32	16	16	16	16	8	8	24	24		200
10	40	38	20	20	20	20	10	10	30	28		320
12	48	48	24	24	24	24	12	12	36	36		520
14	56	50	28	28	28	28	14	14	42	38		700
16	64	55	32	32	32	32	16	16	48	40		800
18	72	62	36	36	36	36	18	18	54	43		990
20	76	68	40	40	40	40	20	20	60	46		1100
22	88	82	44	44	44	44	22	22	66	56		1500
25	00	95	50	50	50	50	25	25	75	68		2100
28	112	108	56	56	56	56	28	28	84	74		3000
32	128	120	64	64	64	64	32	32	96	84		3500
36	144	135	72	72	72	72	36	36	108	92		4600
38	152	152	76	76	76	76	38	38	38	38		5000

What is an EU/JIS Stainless Steel Bow Shackle?

The EU/JIS Stainless Steel Bow Shackle is a specialized type of bow shackle, also referred to as an anchor shackle. It serves as a connecting piece primarily used for hoisting and traction operations. Its name comes from its characteristic bow-like shape. These shackles are bow-shaped, load-bearing connecting systems that are designed to be used with removable pins to secure connections. Manufactured from stainless steel, they are designed to meet EU (European Union) and JIS (Japanese Industrial Standards) specifications.

Advantages of EU/JIS Stainless Steel Bow Shackle

EU/JIS Stainless Steel Bow Shackles offer several key benefits, making them suitable for a variety of demanding applications:

• Corrosion Resistance: Being made from stainless steel, these shackles are inherently resistant to rust and corrosion. This makes them ideal for use in harsh environments, particularly where they might be exposed to water, saltwater, and various chemicals.
• Strength and Durability: Stainless steel provides high strength and durability, allowing these shackles to withstand heavy loads and significant stress without compromising their structural integrity. This makes them well-suited for heavy-duty applications.
• Longevity: The combination of corrosion resistance and inherent strength means that stainless steel shackles generally have a longer operational lifespan compared to shackles made from other materials. This long-term reliability can make them a cost-effective choice over time.
• Low Maintenance: Due to their natural resilience to rust and corrosion, stainless steel shackles typically require less maintenance, which can save time and resources on upkeep.
• Quality Manufacturing Process: These shackles are often produced through a rigorous forging process, which can include specialized drilling, tapping, heat treatment, and inspection, ensuring a high-quality product.
• Strong Load-Bearing Capacity: Designed as connecting pieces for items like chains and rope rigging, they possess a solid structure capable of handling significant loads.
