Description

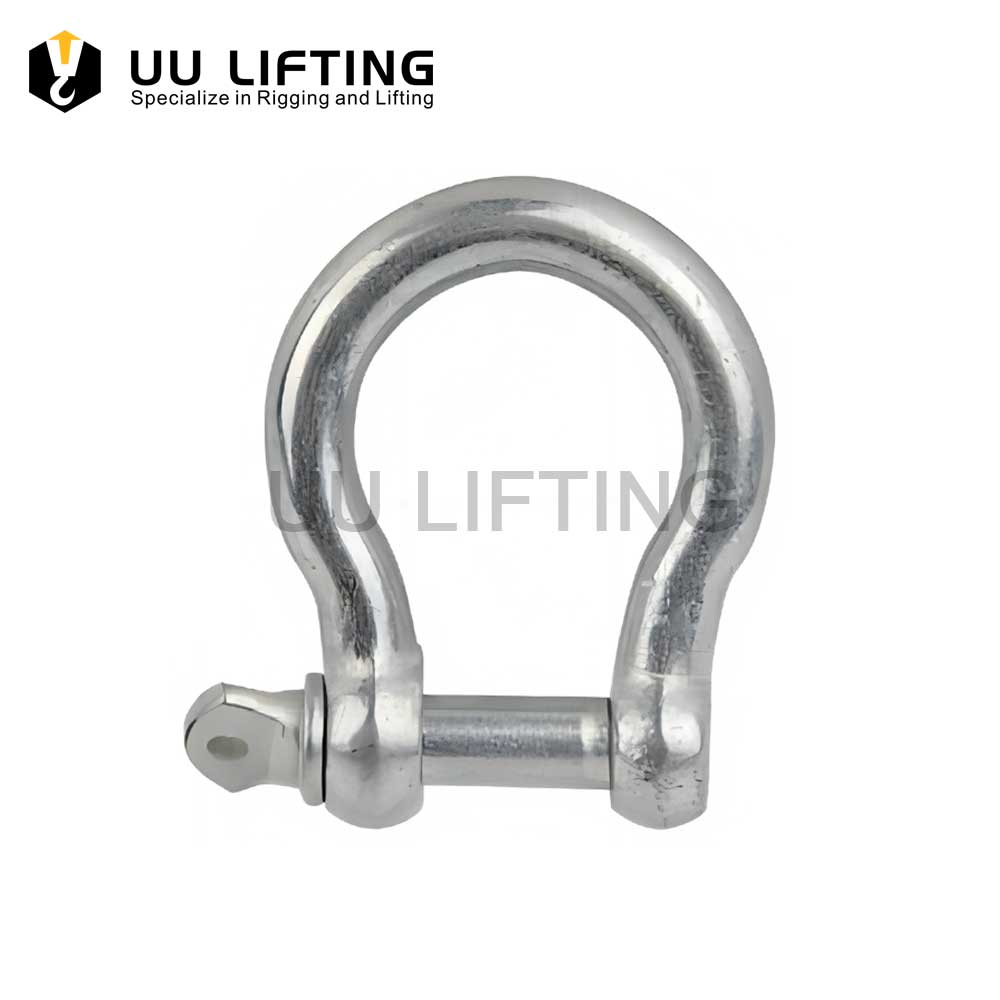

European Type Large Bow Shackle Specifications:

MOQ1 Pallet, 1 Ton or 3000USD
ComponentQ235
Surface finishElcectro-Galvanized(Zinc Plated)
SizesFrom 5mm-0.08ton to 50mm-8ton
Technique ProcedureFree Forged
HS code732690

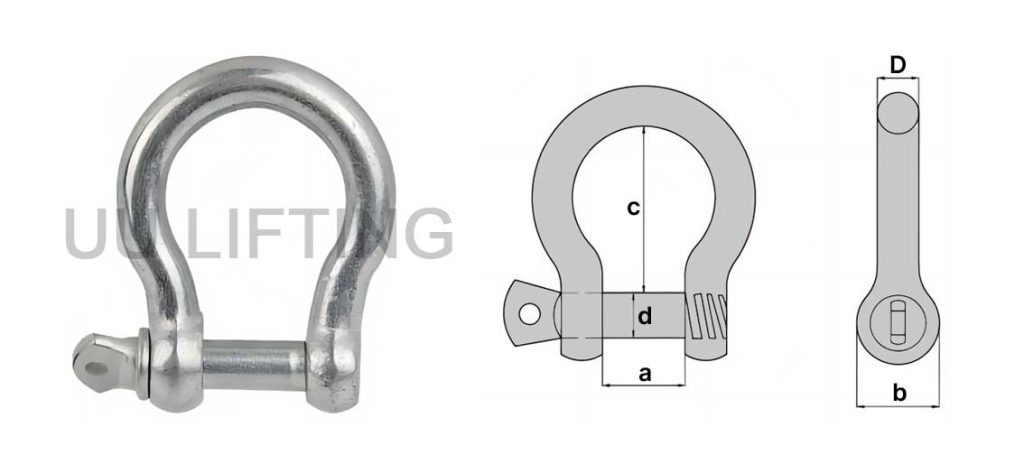

European Type Large Bow Shackle Sizes:

European Type Large Bow Shackle Sizes



European Type Large Bow Shackle Sizes
Size (mm)Weight (kg/100pcs)S.W.L. (kg)Dimension (mm)
Ddacb
5802.25101911
610046132514
820088163218
103201510193820
114002011224423
125203012255126
168005816326433
2011009220387640
22150014922448950
252100230255110057
283000357285711568
323500495326412773
385000805387615285
4570001438459018096
508000201250102200108
FORGING PROCESS
With eight automatic forging and semi-automatic forging line of up to 1600ton press machines and specialized drillng, tapping, heat treatment and inspection equipment. Strict and standardized production process ensures you receive perfect products.
Moulds
Moulds
Forging
Forging
Clearance Procssing
Clearance Procssing
Half Finished
Half Finished
Machining Workshop
Machining Workshop
Drill Hole
Drill Hole
Heat Treatment
Heat Treatment
Painting
Painting
Salt Spray Test
Salt Spray Test
Tension Test
Tension Test
Packing
Packing
Shipping
Shipping
QUALITY CONTROL
All rigging and lifting products are subjected to strict working tension and breaking the tension test. Complied with ISO9001 and CE certification. Our promise to you: Guaranteed safety at work for people and materials.
G70 Chain Test
Chain Test
Clamp Test
Clamp Test
Hook Test
Hook Test
Link Test
Link Test
Shackle Tension Test
Shackle Tension Test
Snap Hook Test
Snap Hook Test
