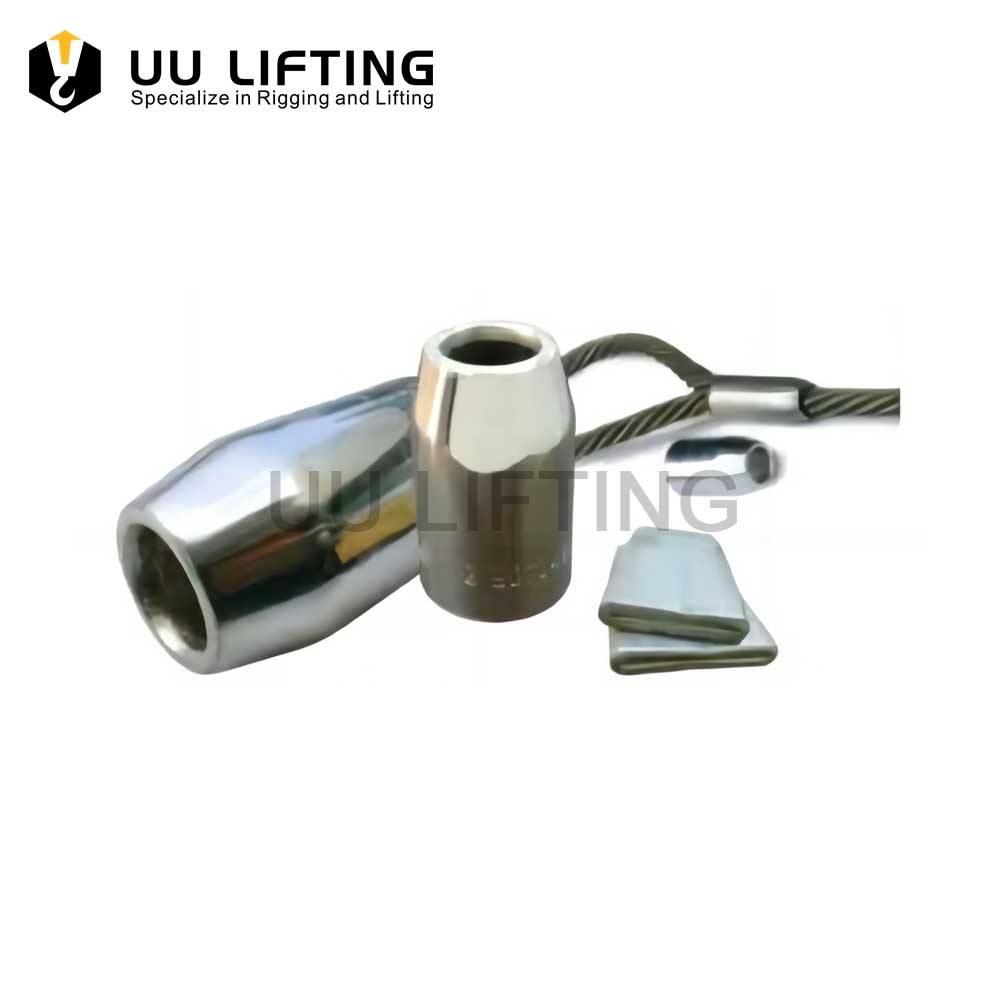

Flemish EYE Steel Swaging Sleeves(S-505)

Experience unparalleled quality with UULIFTING, China’s premier Flemish eye steel swage ferrules manufacturer. Catering to diverse needs, we offer an extensive range of wire rope ferrules and swage sleeves, ensuring compatibility with various ropes and applications.

Specification

Additional information

Sizes	From 1/4" to 6"
Surface	Galvanized / Self-colored
Application	Overhead Lifting, Lashing, Towing

Description

Flemish EYE Steel Swaging Sleeves(S-505) Specifications:

Material	Aluminium
Surface finish	Galvanized / Self-colored
Sizes	From 1/4″ to 6″
Processing	Extruded and squeezed by ferrule crimping tool & machined

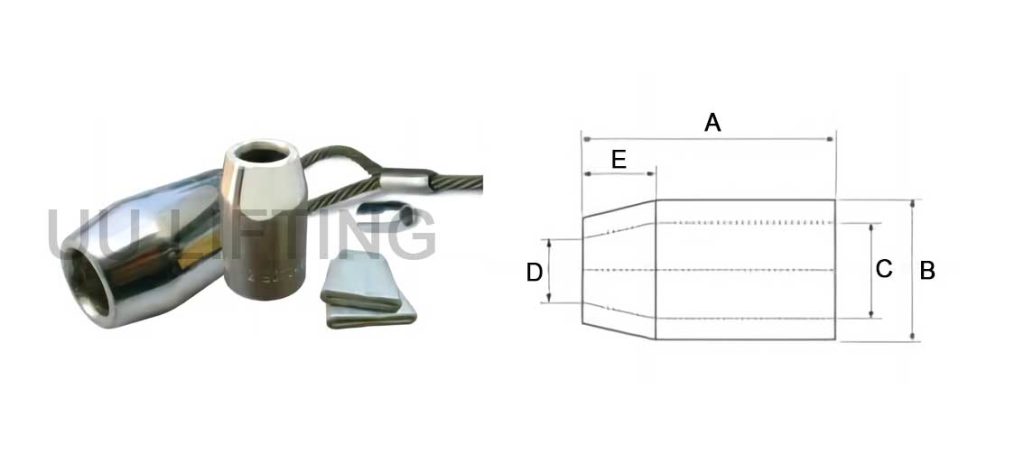

Flemish EYE Steel Swaging Sleeves(S-505) Sizes：

Flemish EYE Steel Swaging Sleeves Sizes
For Wire Size	Dimension (in)					Max.After Swage Dimensions	Weight Kgs/100Pcs
(in）	A	B	D	E	C	(in)	Weight Kgs/100Pcs
1/4"	1	0.66	0.31	0.28	0.47	0.57	2.27
5/16"	1.5	0.91	0.38	0.44	0.62	0.75	6.36
3/8"	1.5	0.91	0.47	0.39	0.66	0.75	6.36
7/16"	2	1.22	0.53	0.65	0.85	1.01	15
1/2"	2	1.22	0.63	0.56	0.91	1.01	13
9/16"	2.75	1.47	0.7	0.63	1.03	1.24	29
5/8"	2.75	1.47	0.75	0.63	1.09	1.24	26
3/4"	3.19	1.72	0.91	0.84	1.28	1.46	40
7/8"	3.56	2.03	1.03	1	1.53	1.68	60
1"	4	2.28	1.16	1.13	1.72	1.93	89
1-1/8"	4.8	2.5	1.28	1.25	1.94	2.13	118
1-1/4"	5.19	2.78	1.44	1.41	2.16	2.32	161
1-3/8"	5.81	3	1.56	1.56	2.38	2.52	192
1-1/2"	6.25	3.25	1.69	1.69	2.63	2.71	227
1-3/4"	7.25	3.84	1.94	1.97	3.13	3.1	366
2"	8.5	4.38	2.25	2.25	3.63	3.56	514
2-1/4"	9.56	5.03	2.5	2.53	4.03	4.12	879
2-1/2"	10.5	5.5	2.75	2.81	4.5	4.5	1068
2-3/4"	11.5	5.75	3	3.09	4.75	4.7	1271
3"	12	6	3.25	3.38	5	4.96	1335
3-1/4"	13	6.5	3.86	3.54	5.43	5.37	1650
3-1/2"	14	7	3.88	3.94	5.84	5.77	2106
3-3/4"	15	7.5	4.06	4.25	6.31	6.23	2497
4"	16	8.13	4.38	4.5	6.81	6.69	3087
4-1/2"	18	9.13	4.88	5.06	7.66	7.45	4540
5"	20	10.52	5.5	5.63	8.73	8.28	6600
6"	24	12.54	6.5	6.75	10.2	9.93	12300

OUR FACTORY

Raw materials of our products are made of high-quality steel that meets the standards, and the raw materials are traceable. And multiple production lines and machines minimize lead times for rigging and lifting equipment.

MANUFACTURING PROCESSES

With eight automatic forging and semi-automatic forging line of up to 1600ton press machines and specialized drillng, tapping, heat treatment and inspection equipment. Strict and standardized production process ensures you receive perfect products.

QUALITY CONTROL

All rigging and lifting products are subjected to strict working tension and breaking the tension test. Complied with ISO9001 and CE certification. Our promise to you: Guaranteed safety at work for people and materials.
