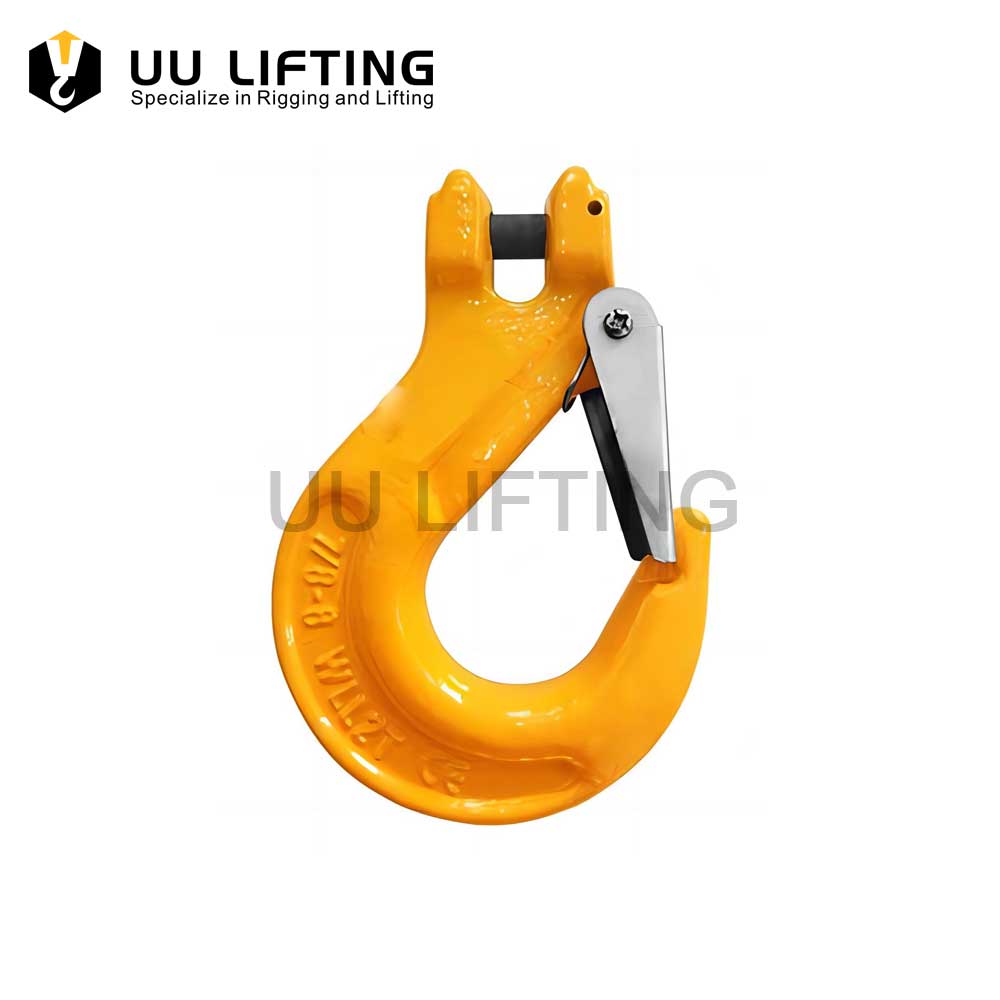

G80 Clevis Sling Hook with Latch

The G80 Clevis Sling Hook with Latch is made of high-quality alloy steel. Designed for lifting equipment operation and use with G80 alloy chain.

Specification

Additional information

Material

Alloy Steel

Surface Treatment

Powder Painted

Size

From 6mm to 32mm

Safety factor

4:1

Application

Overhead Lifting, Lashing, Towing

Description

G80 Clevis Sling Hook with Latch Specifications:

MOQ1 Pallet, 1 Ton or 3000USD
MaterialAlloy Steel
Surface FinishPowder plasticized
SizesFrom 6mm to 32mm
Technique ProcedureDrop forged
Safety Factor4:1
HS code732690

G80 Clevis Sling Hook with Latch Sizes:

G80 Clevis Sling Hook with Latch Sizes

G80 Clevis Sling Hook with Latch Sizes
SizeWeight (kg)W.L.L (t)Dimension (mm)
KBARHE
6-80.411.275328352326
7/8-80.65285379.53732.529
10-81.053.21044913463539
13-81.675.312856.516.55642.547
16-83.71815070.521.5605455
20-86.0512.51807724795861
22-810.51521391271016272
26-814.521.2250117301157585
32-82731.53171503514088106
OUR FACTORY
Raw materials of our products are made of high-quality steel that meets the standards, and the raw materials are traceable. And multiple production lines and machines minimize lead times for rigging and lifting equipment.
RAW-MATERIAL
Raw Material
Forged-Plant
Forged
Cast Process
Cast
Chain Process
Chain Machine
Heat Treatment Plant
Heat Treatment
Powder Plastified Plant
Powder Plastified
Package Plant
Package
Warehouse Plant
Warehouse
MANUFACTURING PROCESSES
With eight automatic forging and semi-automatic forging line of up to 1600ton press machines and specialized drillng, tapping, heat treatment and inspection equipment. Strict and standardized production process ensures you receive perfect products.
MANUFACTURING-PROCESSES-shackle
QUALITY CONTROL
All rigging and lifting products are subjected to strict working tension and breaking the tension test. Complied with ISO9001 and CE certification. Our promise to you: Guaranteed safety at work for people and materials.
G70 Chain Test
Chain Test
Clamp Test
Clamp Test
Hook Test
Hook Test
Link Test
Link Test
Shackle Tension Test
Shackle Tension Test
Snap Hook Test
Snap Hook Test
