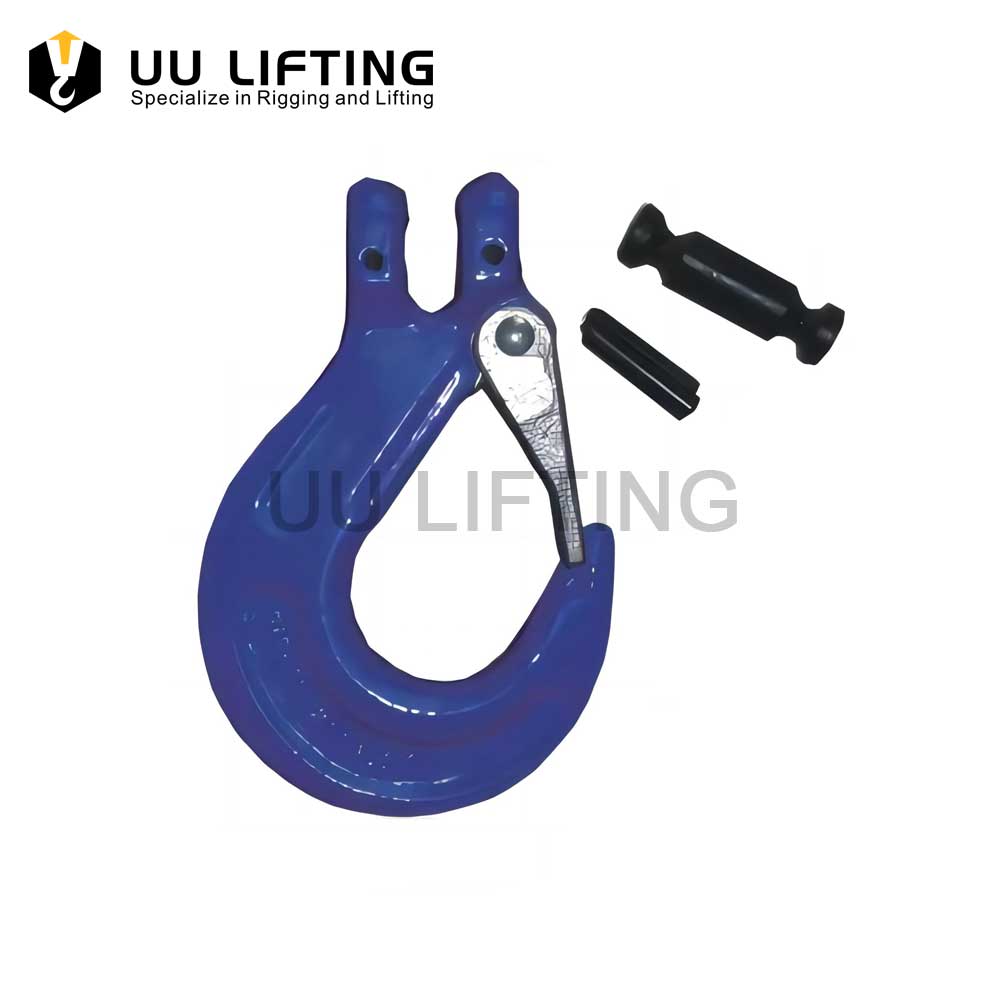

G100 Clevis Sling Hook with Latch

G100 Clevis Sling Hook with Latch

Categories , Tags , , ,

When choosing a G100 Clevis Sling Hook with Latch, you can consider things like the length, depth, and height of the hook. Larger hooks may have a higher working load limit, but they also require larger chains.

Specification

Additional information

Material

Alloy Steel
Surface Treatment

Powder Painted
ASK FOR A QUOTE

Description

G100 Clevis Sling Hook with Latch Specifications：

MOQ1 Pallet, 1 Ton or 3000USD
MaterialAlloy Steel
Surface FinishPowder plasticized
W.L.LFrom 1.4t to 19t
Technique ProcedureDrop forged

G100 Clevis Sling Hook with Latch Sizes：

G100 Clevis Sling Hook with Latch Sizes

G100 Clevis Sling Hook with Latch Sizes
SizeW.L.L.B.LDimension (mm)Weight
(t)(t)ABEHML(kg/pc)
6-101.45.67.53218.52168.51090.33
8-102.5109.5372527.5881340.7
10-1041612482833.5105.5161.51.3
13-106.726.8155938421342032.3
16-10104017.5704450160.52483.6
20-10166425855256190.52977.3
22-101976271006662214.532612.1
OUR FACTORY
Raw materials of our products are made of high-quality steel that meets the standards, and the raw materials are traceable. And multiple production lines and machines minimize lead times for rigging and lifting equipment.
RAW-MATERIAL
Raw Material
Forged-Plant
Forged
Cast Process
Cast
Chain Process
Chain Machine
Heat Treatment Plant
Heat Treatment
Powder Plastified Plant
Powder Plastified
Package Plant
Package
Warehouse Plant
Warehouse
MANUFACTURING PROCESSES
With eight automatic forging and semi-automatic forging line of up to 1600ton press machines and specialized drillng, tapping, heat treatment and inspection equipment. Strict and standardized production process ensures you receive perfect products.
MANUFACTURING-PROCESSES-shackle
QUALITY CONTROL
All rigging and lifting products are subjected to strict working tension and breaking the tension test. Complied with ISO9001 and CE certification. Our promise to you: Guaranteed safety at work for people and materials.
G70 Chain Test
Chain Test
Clamp Test
Clamp Test
Hook Test
Hook Test
Link Test
Link Test
Shackle Tension Test
Shackle Tension Test
Snap Hook Test
Snap Hook Test
