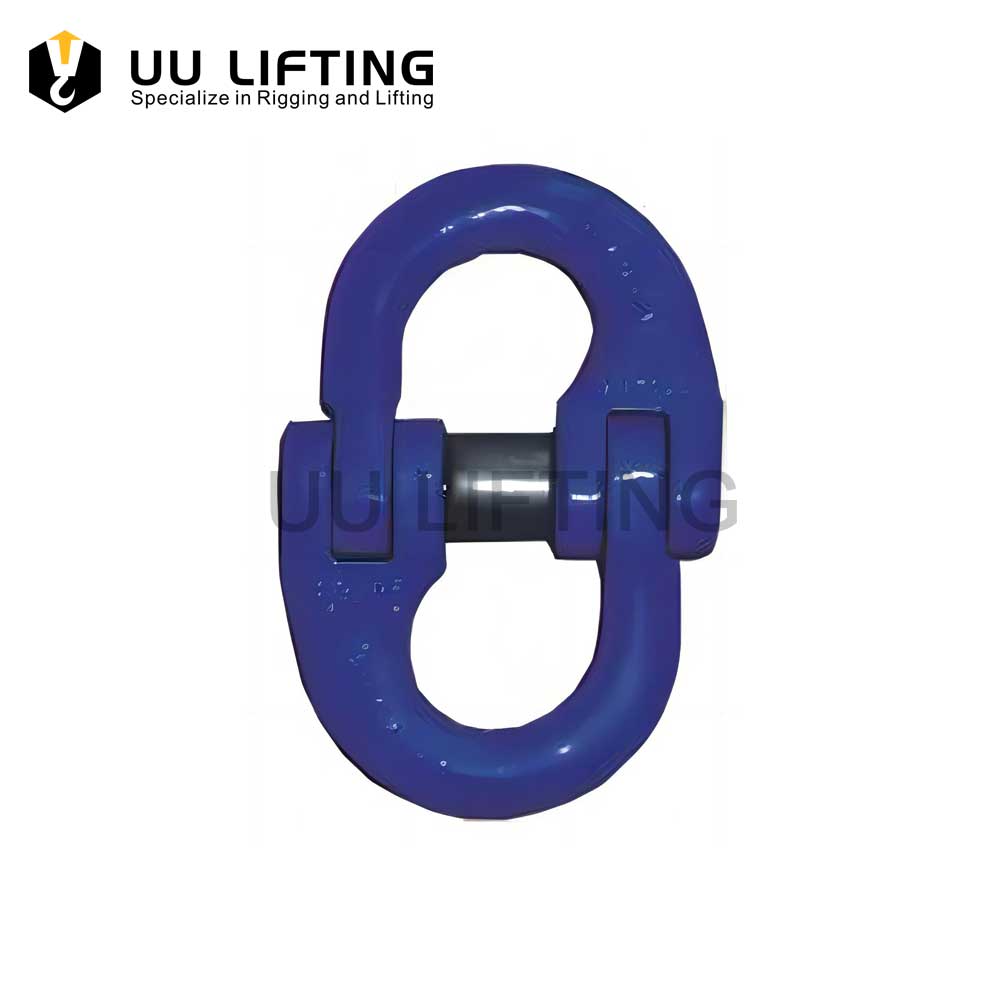

G100 Connecting Link

The G100 Connecting Link is a sling fitting that can be used to connect a sling with a hook, master link, or other sling components. It is made from quenched and tempered alloy steel and has a WLL that is at least 25% greater than traditional G80 products.

Specification

Additional information

Material

Alloy Steel

Surface Treatment

Powder Painted

Description

G100 Connecting Link Specifications:

MOQ1 Pallet, 1 Ton or 3000USD
MaterialAlloy Steel
Surface FinishPowder plasticized
W.L.LFrom 1.4t to 39.3t
Technique ProcedureDrop forged

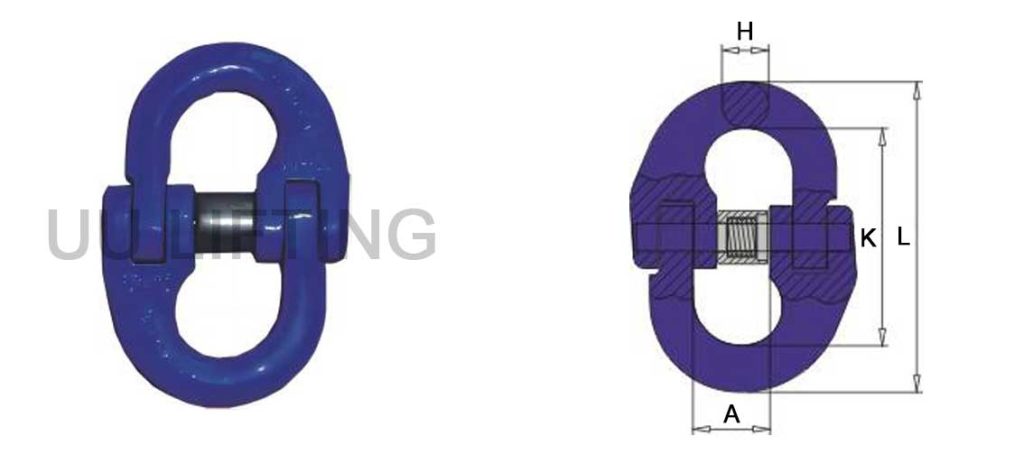

G100 Connecting Link Sizes:

G100 Connecting Link Sizes

G100 Connecting Link Sizes
SizeW.L.L.B.LDimension (mm)Weight
(t)(t)HAKL(kg/pc)
6-101.45.67.61444.5600.1
8-102.5101018.561.584.50.22
10-1041612.6237297.20.45
13-106.726.816.827.5891271.15
16-1010402133.51031451.75
18-10166424.5421161752.7
22-10197627481351934.02
26-1026.510632611642285.1
32-1039.3157.240801942748.05
