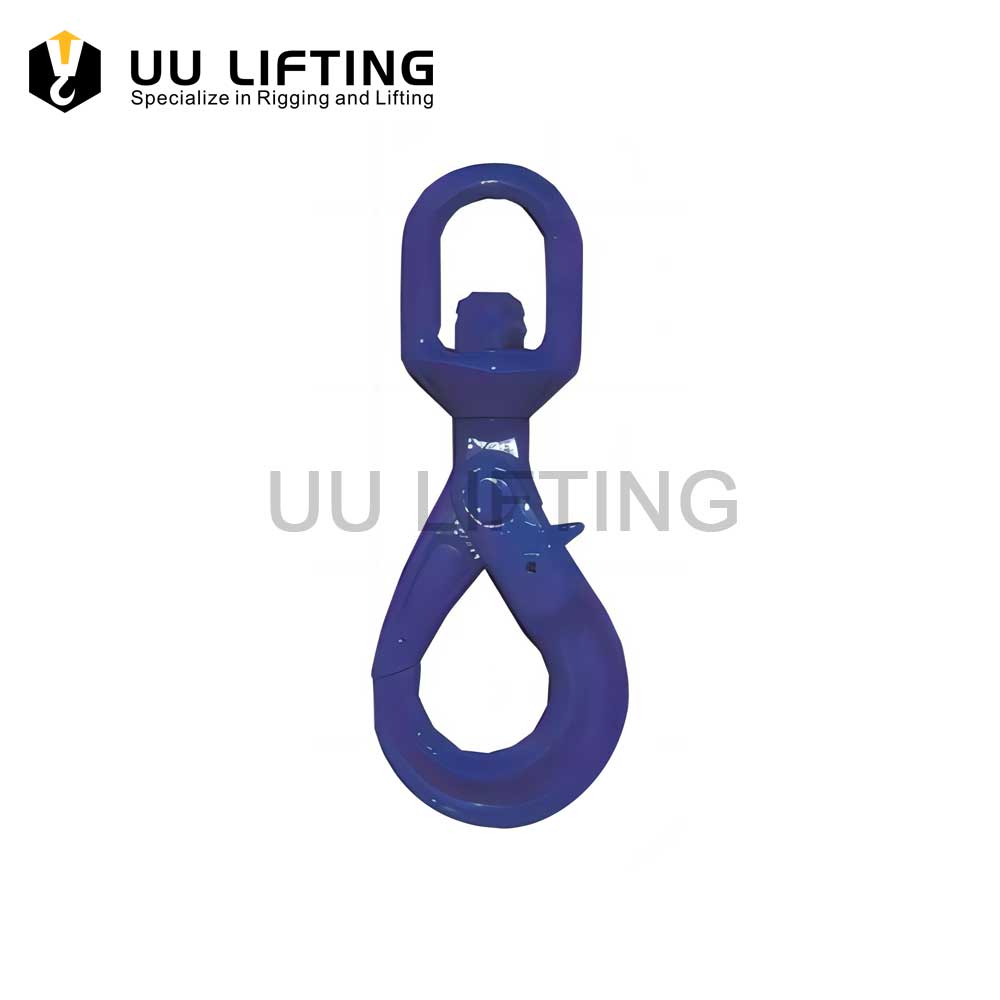

G100 Swivel Self-Locking Hook

G100 Swivel Self-Locking Hook

Categories , Tags , , ,

G100 swivel self-locking hooks can rotate in any direction and have a locking latch that prevents the hook from catching on the edge of the carrier bed. Some G100 swivel self-locking hooks are made from grade 100 alloy steel and have a heavy-duty latch that will close automatically once a load is applied.

Specification

Additional information

Material

Alloy Steel
Surface Treatment

Powder Painted
ASK FOR A QUOTE

Description

G100 Swivel Self-Locking Hook Specifications：

MOQ1 Pallet, 1 Ton or 3000USD
MaterialAlloy Steel
Surface FinishPowder plasticized
W.L.LFrom 1.4t to 19t
Technique ProcedureDrop forged

G100 Swivel Self-Locking Hook Sizes：

G100 Swivel Self-Locking Hook Sizes

G100 Swivel Self-Locking Hook Sizes
SizeW.L.L.B.LDimension (mm)Weight
(t)(t)BCDEHML(kg/pc)
6-101.45.632.52311.52820701840.6
8-102.51036281335.526902291.1
10-10416423515.545301092692
13-106.726.850401753.540.5138.53304
16-101040615621.56250.5170.54136.8
18-10166472622676.562192.546312.5
22-101976979433806620557217.1
OUR FACTORY
Raw materials of our products are made of high-quality steel that meets the standards, and the raw materials are traceable. And multiple production lines and machines minimize lead times for rigging and lifting equipment.
RAW-MATERIAL
Raw Material
Forged-Plant
Forged
Cast Process
Cast
Chain Process
Chain Machine
Heat Treatment Plant
Heat Treatment
Powder Plastified Plant
Powder Plastified
Package Plant
Package
Warehouse Plant
Warehouse
MANUFACTURING PROCESSES
With eight automatic forging and semi-automatic forging line of up to 1600ton press machines and specialized drillng, tapping, heat treatment and inspection equipment. Strict and standardized production process ensures you receive perfect products.
MANUFACTURING-PROCESSES-shackle
QUALITY CONTROL
All rigging and lifting products are subjected to strict working tension and breaking the tension test. Complied with ISO9001 and CE certification. Our promise to you: Guaranteed safety at work for people and materials.
G70 Chain Test
Chain Test
Clamp Test
Clamp Test
Hook Test
Hook Test
Link Test
Link Test
Shackle Tension Test
Shackle Tension Test
Snap Hook Test
Snap Hook Test
