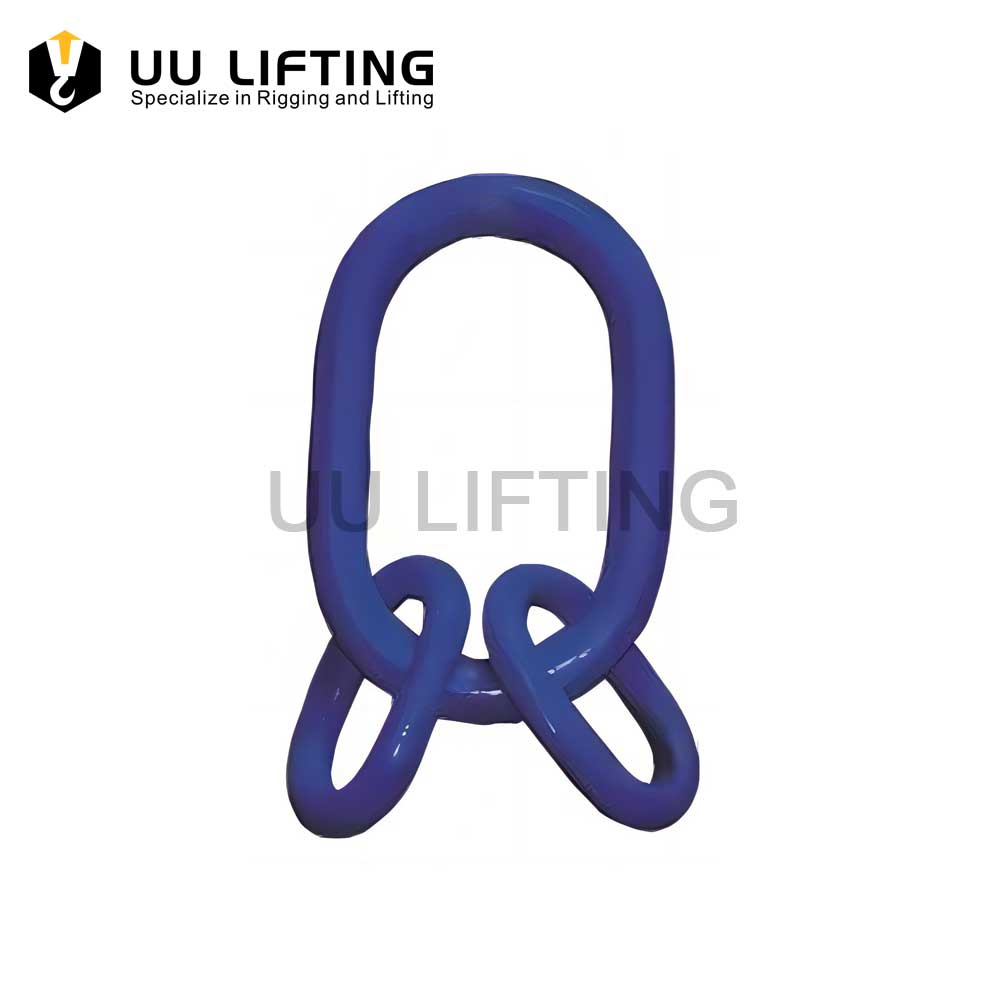

G100 Welded Master Link Assembly

G100 Welded Master Link Assembly

Categories , Tag

G100 Welded Master Link Assemblies are used to assemble G100 chains and other G100 accessories. They are made with high quality alloy steel and are forged with special alloy steel that is high in intensity and toughness. G100 Master Link Assemblies are designed for 3-4 leg chain, wire rope, and webbing slings.

Specification

Additional information

Material

Alloy Steel
Surface Treatment

Powder Painted
ASK FOR A QUOTE

Description

G100 Welded Master Link Assembly Specifications：

MOQ1 Pallet, 1 Ton or 3000USD
MaterialAlloy Steel
Surface FinishPowder plasticized
W.L.LFrom 3t to 21.2t
Technique ProcedureDrop forged

G100 Welded Master Link Assembly Sizes：

G100 Welded Master Link Assembly Sizes

G100 Welded Master Link Assembly Sizes
SizeW.L.L.B.LDimension (mm)Weight
(t)(t)ABDabd(kg/pc)
6-1031213575195425131.3
8-105.321.21609023703416.52.33
13-10832180100278540193.7
16-1014562001103311550236.5
20-1021.284.826014036140652710.1
OUR FACTORY
Raw materials of our products are made of high-quality steel that meets the standards, and the raw materials are traceable. And multiple production lines and machines minimize lead times for rigging and lifting equipment.
RAW-MATERIAL
Raw Material
Forged-Plant
Forged
Cast Process
Cast
Chain Process
Chain Machine
Heat Treatment Plant
Heat Treatment
Powder Plastified Plant
Powder Plastified
Package Plant
Package
Warehouse Plant
Warehouse
MANUFACTURING PROCESSES
With eight automatic forging and semi-automatic forging line of up to 1600ton press machines and specialized drillng, tapping, heat treatment and inspection equipment. Strict and standardized production process ensures you receive perfect products.
MANUFACTURING-PROCESSES-shackle
QUALITY CONTROL
All rigging and lifting products are subjected to strict working tension and breaking the tension test. Complied with ISO9001 and CE certification. Our promise to you: Guaranteed safety at work for people and materials.
G70 Chain Test
Chain Test
Clamp Test
Clamp Test
Hook Test
Hook Test
Link Test
Link Test
Shackle Tension Test
Shackle Tension Test
Snap Hook Test
Snap Hook Test
