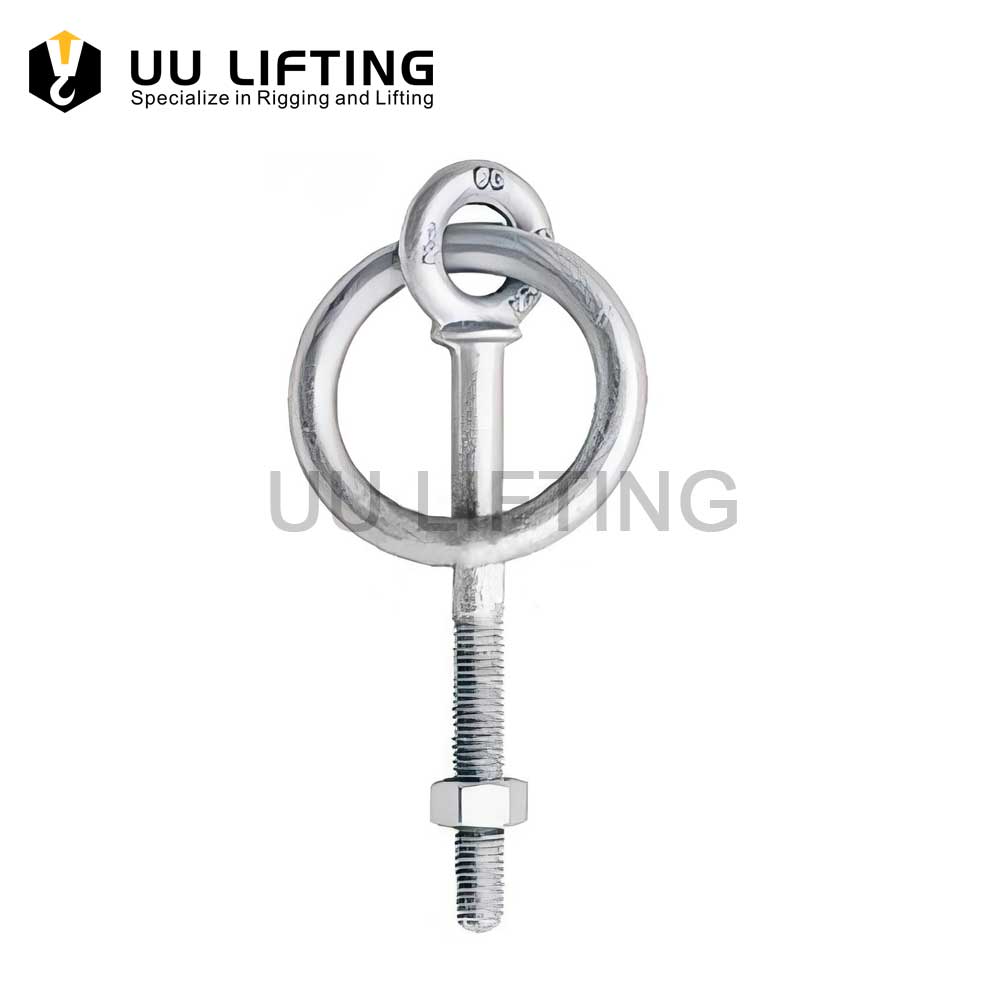

G257 US Type Nut Ring Bolt

Categories Eye Bolts, Rigging Hardware

G257 US Type Nut Ring Bolts are used as rigging or connecting elements and are often used when a high load needs to be lifted.

Specification

Additional information

Size	From 3/8"×4-1/2" to 1/2"×6"

Description

G257 US Type Nut Ring Bolt Specifications:

MOQ	1 Pallet, 1 Ton or 3000USD
Size	From 3/8"×4-1/2" to 1/2"×6"

G257 US Type Nut Ring Bolt Sizes：

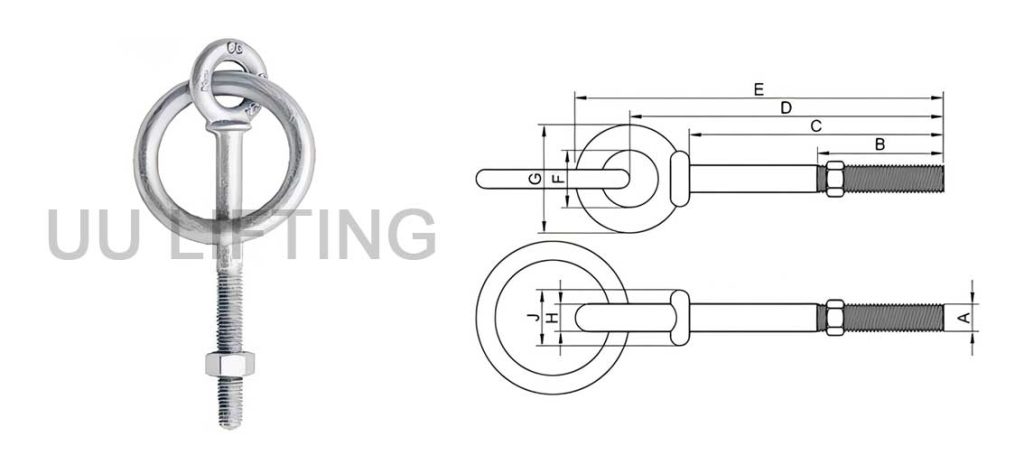

G257 US Type Nut Ring Bolt Sizes
Size (inch)	Dimensions (inch)								W.L.L	Weight (lb/100pcs)
Size (inch)	A	B	C	D	E	F	G	H	Ibs	Weight (lb/100pcs)
3/8"×4-1/2"	0.38	2.50	4.50	7.66	0.38	1.38	2.00	0.66	1200	56.60
1/2"×6"	0.50	3.00	6.00	10.00	0.50	1.75	2.50	0.91	2200	100.00

OUR FACTORY

Raw materials of our products are made of high-quality steel that meets the standards, and the raw materials are traceable. And multiple production lines and machines minimize lead times for rigging and lifting equipment.

MANUFACTURING PROCESSES

With eight automatic forging and semi-automatic forging line of up to 1600ton press machines and specialized drillng, tapping, heat treatment and inspection equipment. Strict and standardized production process ensures you receive perfect products.

QUALITY CONTROL

All rigging and lifting products are subjected to strict working tension and breaking the tension test. Complied with ISO9001 and CE certification. Our promise to you: Guaranteed safety at work for people and materials.
