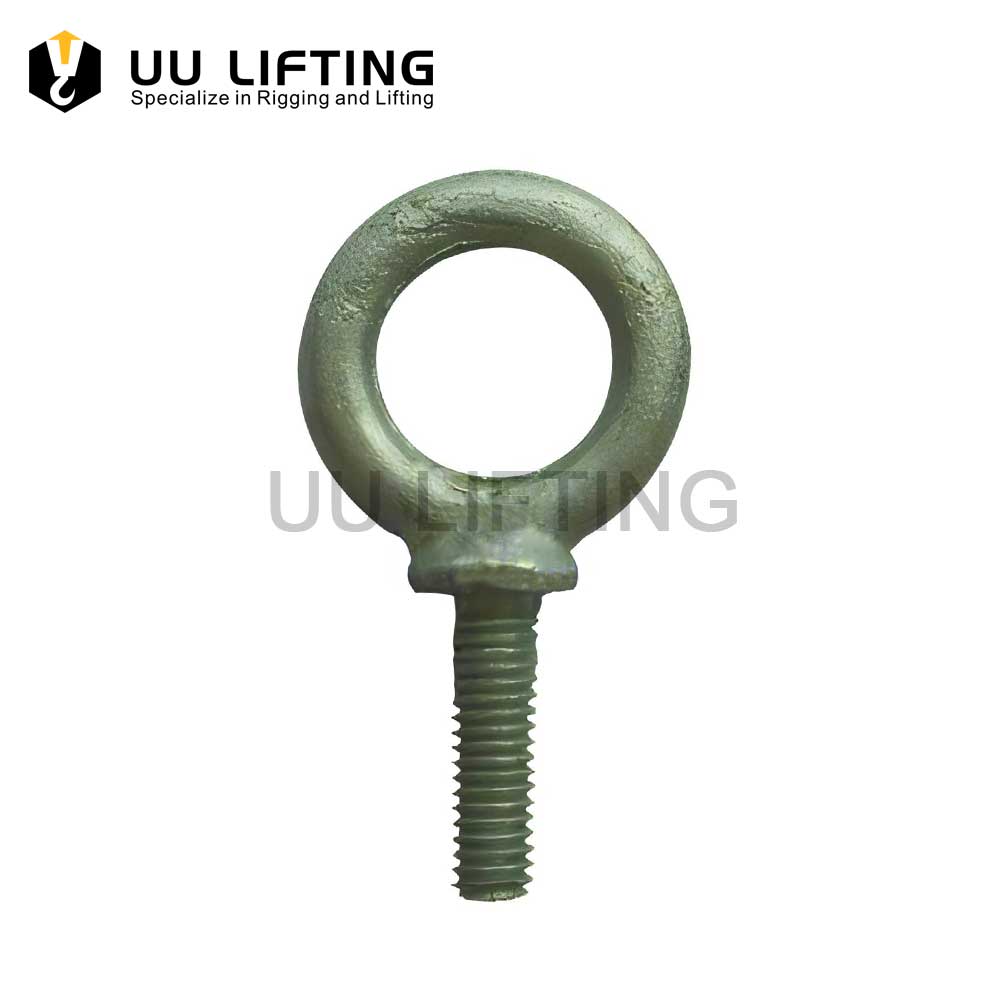

G279 US Type Nut Ring Bolt

Categories Eye Bolts, Rigging Hardware

A G279 US Type Nut Ring Bolt is a shoulder-type machinery eye bolt that can be used for in-line pulls and angular loads. It is designed to meet the requirements of ASME B30.26, which includes specifications for identification, ductility, design factor, proof load, and temperature.

Specification

Additional information

Size	From 1/4"×1" to 1-1/2"×3-1/2"

Description

G279 US Type Nut Ring Bolt Specifications:

MOQ	1 Pallet, 1 Ton or 3000USD
Size	From 1/4"×1" to 1-1/2"×3-1/2"

G279 US Type Nut Ring Bolt Sizes：

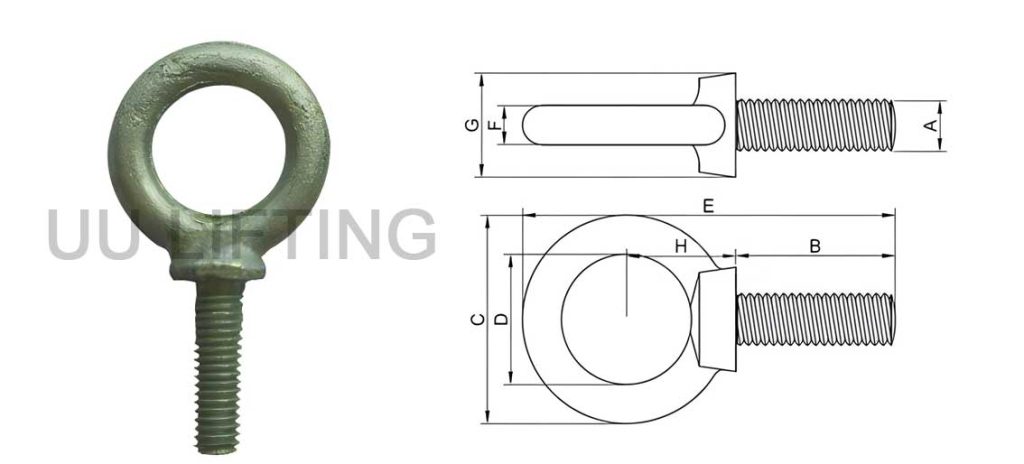

G279 US Type Nut Ring Bolt Sizes
Size (inch)	WLL (lbs)	Dimensions (inch)							Weight (lb/100pcs)
Size (inch)	WLL (lbs)	A	B	C	D	E	F	G	Weight (lb/100pcs)
1/4"×1"	650.00	37001	1.02	1.13	0.78	2.29	0.19	0.53	5.00
5/16"×1-1/8"	1200.00	5/16-18	1.15	1.38	0.88	2.74	0.25	0.59	9.00
3/8"×1-1/4"	1550.00	37849	1.27	1.62	1.00	3.07	0.31	0.69	15.00
1/2"×1-1/2"	2600.00	36935	1.53	1.95	1.19	3.70	0.38	0.91	28.00
5/8"×1-3/4"	5200.00	38575	1.79	2.38	1.38	4.45	0.50	1.13	55.00
3/4"×2"	7200.00	37721	2.05	2.76	1.50	5.07	0.63	1.38	96.00
7/8"×2-1/4"	10600.00	39303	2.31	3.25	1.75	5.87	0.75	1.56	154.00
1"×2-1/2"	13300.00	45299	2.57	3.76	2.00	6.66	0.88	1.81	238.00
1-1/4"×3"	21000.00	1 1/4-7	3.09	4.50	2.50	7.95	1.00	2.28	399.00
1-1/2"×3-1/2"	24000.00	1 1/2-6	3.60	5.50	3.00	9.49	1.25	2.75	720.00

OUR FACTORY

Raw materials of our products are made of high-quality steel that meets the standards, and the raw materials are traceable. And multiple production lines and machines minimize lead times for rigging and lifting equipment.

MANUFACTURING PROCESSES

With eight automatic forging and semi-automatic forging line of up to 1600ton press machines and specialized drillng, tapping, heat treatment and inspection equipment. Strict and standardized production process ensures you receive perfect products.

QUALITY CONTROL

All rigging and lifting products are subjected to strict working tension and breaking the tension test. Complied with ISO9001 and CE certification. Our promise to you: Guaranteed safety at work for people and materials.
