G291 US Type Nut Eye Bolt

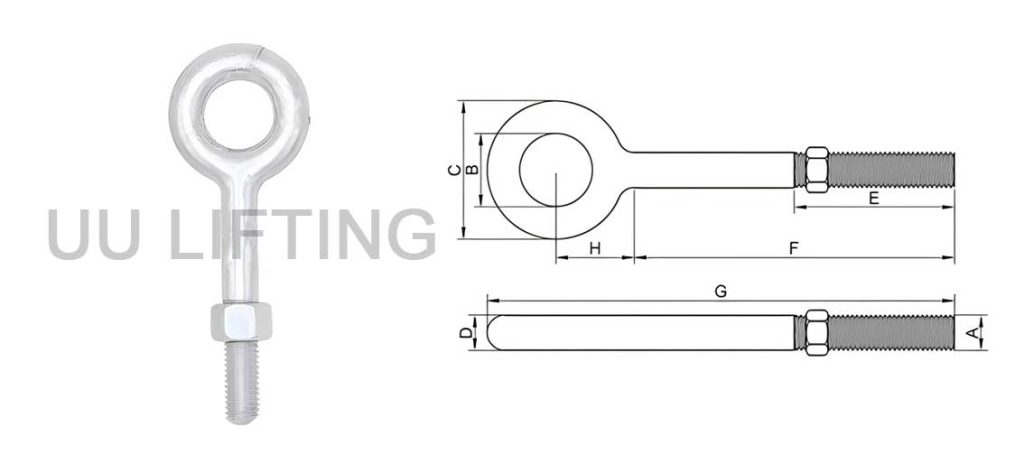

G291 US Type Nut Eye Bolt Sizes
Size (inch)	WLL (lbs)	Dimensions (inch)								Weight (lb/100pcs)
		A	B	C	D	E	F	G	H
1/4"×2"	500	0.25	0.50	1.00	0.25	1.50	2.00	3.06	0.56	6.00
1/4"×4"	500.00	0.25	0.50	1.00	0.25	2.50	4.00	5.06	0.56	13.50
5/16"×2-1/4"	800.00	0.31	0.62	1.25	0.31	1.50	2.25	3.56	0.69	18.75
5/16"×4-1/4"	800.00	0.31	0.62	1.25	0.31	2.50	4.25	5.56	0.69	25.00
3/8"×2-1/2"	1200.00	0.38	0.75	1.50	0.38	1.50	2.50	4.12	0.88	24.33
3/8"×4-1/2"	1200.00	0.38	0.75	1.50	0.38	2.50	4.50	6.12	0.88	37.50
3/8"×6"	1200.00	0.38	0.75	1.50	0.38	2.50	6.00	7.62	0.88	43.75
1/2"×3-1/4"	2200.00	0.50	1.00	2.00	0.50	1.50	3.25	5.38	1.12	50.00
1/2"×6"	2200.00	0.50	1.00	2.00	0.50	3.00	6.00	8.12	1.12	62.50
1/2"×8"	2200.00	0.50	1.00	2.00	0.50	3.00	8.00	10.12	1.12	75.00
1/2"×10"	2200.00	0.50	1.00	2.00	0.50	3.00	10.00	12.12	1.12	88.00
1/2"×12"	2200.00	0.50	1.00	2.00	0.50	3.00	12.00	14.12	1.12	100.00
5/8"×4"	3500.00	0.62	1.25	2.50	0.62	2.00	4.00	6.69	1.44	101.25
5/8"×6"	3500.00	0.62	1.25	2.50	0.62	3.00	6.00	8.69	1.44	120.00
5/8"×8"	3500.00	0.62	1.25	2.50	0.62	3.00	8.00	10.69	1.44	131.00
5/8"×10"	3500.00	0.62	1.25	2.50	0.62	3.00	10.00	12.69	1.44	162.50
5/8"×12"	3500.00	0.62	1.25	2.50	0.62	4.00	12.00	14.69	1.44	175.00
3/4"×4-1/2"	5200.00	0.75	1.50	3.00	0.75	2.00	4.50	7.69	1.69	185.90
3/4"×6"	5200.00	0.75	1.50	3.00	0.75	3.00	6.00	9.19	1.69	180.00
3/4"×8"	5200.00	0.75	1.50	3.00	0.75	3.00	8.00	11.19	1.69	200.00
3/4"×10"	5200.00	0.75	1.50	3.00	0.75	3.00	10.00	13.19	1.69	237.50
3/4"×12"	5200.00	0.75	1.50	3.00	0.75	4.00	12.00	15.19	1.69	251.94
3/4"×15"	5200.00	0.75	1.50	3.00	0.75	5.00	15.00	18.19	1.69	300.00
7/8"×5"	7200.00	0.88	1.75	3.50	0.88	2.50	5.00	8.75	2.00	275.00
7/8"×8"	7200.00	0.88	1.75	3.50	0.88	4.00	8.00	11.75	2.00	325.00
7/8"×12"	7200.00	0.88	1.75	3.50	0.88	4.00	12.00	15.75	2.00	400.00
1"×6"	10000.00	1.00	2.00	4.00	1.00	3.00	6.00	10.31	2.31	425.00
1"×9"	10000.00	1.00	2.00	4.00	1.00	4.00	9.00	13.31	2.31	452.00
1"×12"	10000.00	1.00	2.00	4.00	1.00	4.00	12.00	16.31	2.31	550.00
1"×18"	10000.00	1.00	2.00	4.00	1.00	7.00	18.00	22.31	2.31	650.00
1-1/4"×8"	15200.00	1.25	2.50	5.00	1.25	4.00	8.00	13.38	2.88	750.00
1-1/4"×12"	15200.00	1.25	2.50	5.00	1.25	4.00	12.00	17.38	2.88	900.00
1-1/4"×20"	15200.00	1.25	2.50	5.00	1.25	6.00	20.00	25.38	2.88	1150.00

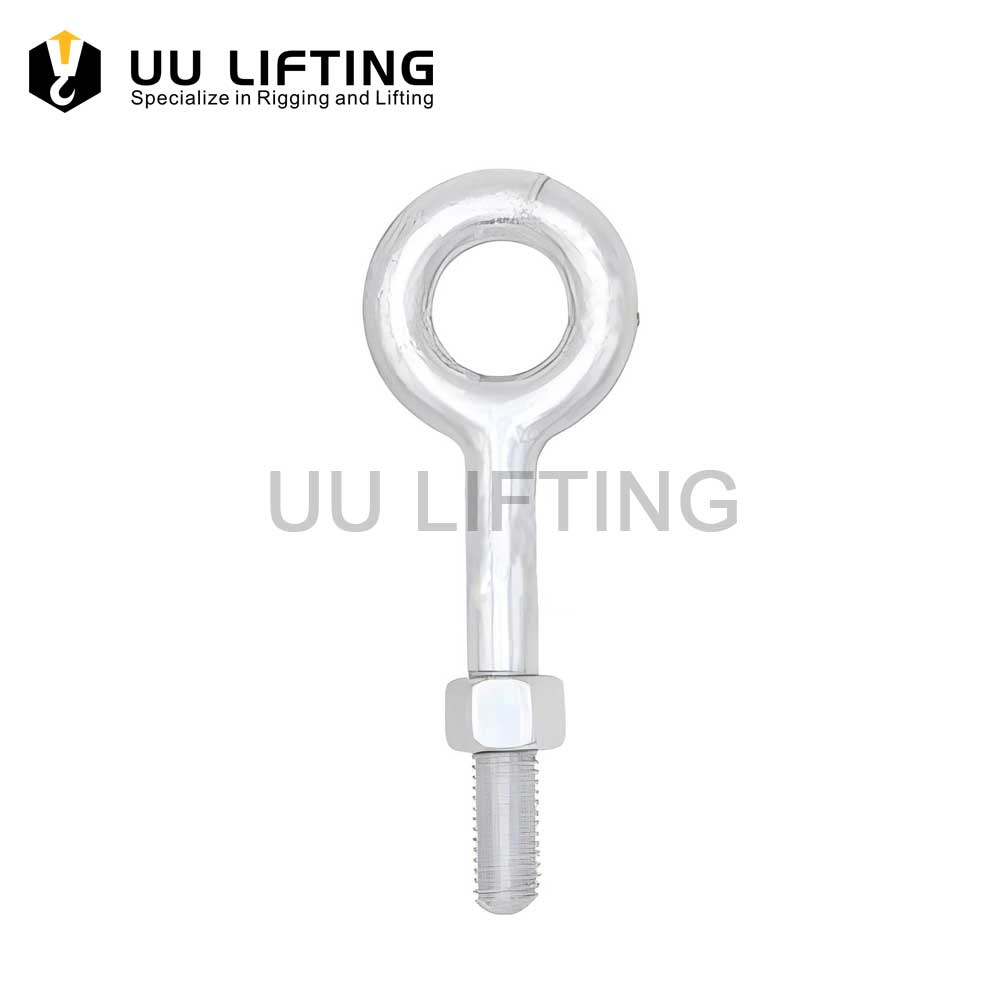

What is a G291 US Type Nut Eye Bolt?

The G291 US Type Nut Eye Bolt is a type of threaded bolt distinguished by a ring or eye at one end. It is specifically designed to connect rigging hardware to a surface or object. These bolts are commonly manufactured from forged steel that has been quenched and tempered. This construction allows them to be threaded into various materials, including wood, steel, or concrete.

Key Features and Advantages of the G291 US Type Nut Eye Bolt

The G291 US Type Nut Eye Bolt offers several advantages stemming from its design and material composition. It is considered a convenient tool for rigging applications. A significant advantage is its material strength; being made from forged steel that is quenched and tempered ensures durability and reliability under load. This makes it suitable for demanding tasks. Furthermore, its application versatility is a key benefit, as it can be securely fastened to different base materials like wood, steel, or concrete, broadening its usability across various projects. The G291 US Type Nut Eye Bolt is available in a range of sizes, from 1/4″ ×2″ to 1-1/4″ ×20″. Correspondingly, it offers a broad spectrum of working load limits (WLL), ranging from 500 lbs to 15,200 lbs, accommodating diverse lifting and securing requirements.
