G80 Clevis Shortening Grab Hook

The Grade 80 clevis shortening grab hook, crafted from heat-treated alloy steel for enduring wear resistance, boasts a robust powder plasticized finish designed to withstand the elements over time.

Specification

Additional information

Material

Alloy Steel

Surface Treatment

Powder Painted

Safety factor

4:1

Standard

EN1677-4

Description

G80 Clevis Shortening Grab Hook Specifications:

MOQ1 Pallet, 1 Ton or 3000USD
MaterialAlloy Steel
Surface FinishPowder plasticized
SizesFrom 6mm to 26mm
Technique ProcedureDrop forged
Safety Factor4:1
HS code732690

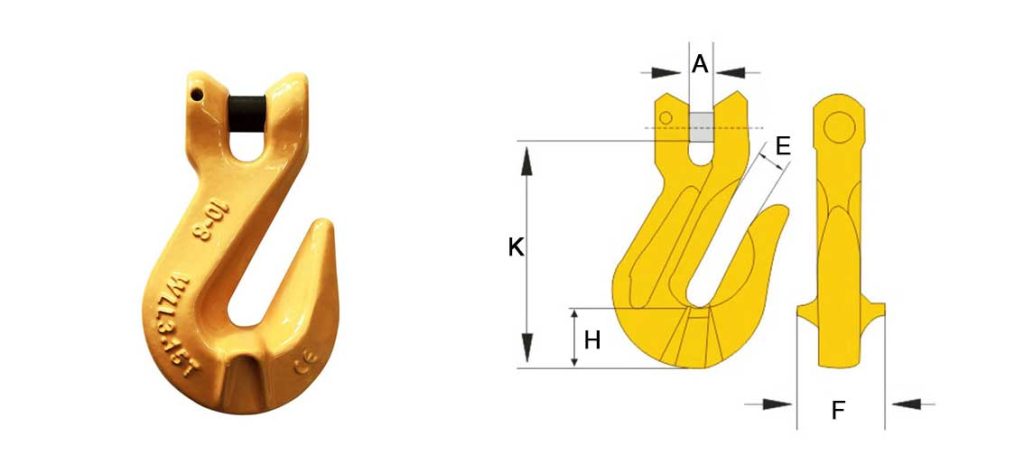

G80 Clevis Shortening Grab Hook Sizes:

G80 Clevis Shortening Grab Hook Sizes

G80 Clevis Shortening Grab Hook Sizes
SizeWeight (kg)W.L.L (t)Dimension (mm)
KFAHE
6-80.121.27526.7817.78.3
7/8-80.2428933.59.518.511
10-80.683.21264612.52913
13-81.35.3163.557.51542.516.5
16-82.288183.57018.545.719
20-84.2512.521984235624
22-86.315254902768.527
26-814.521.2309102307730

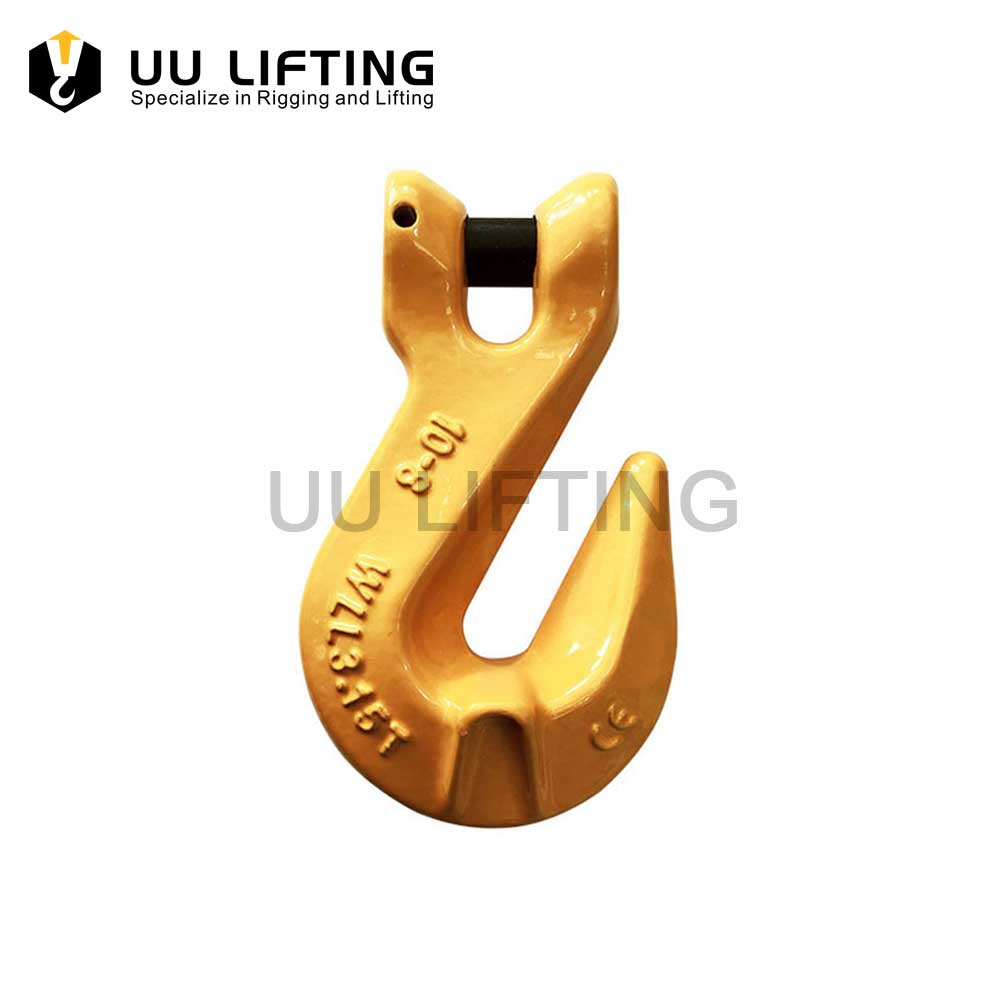

G80 Clevis Shortening Grab Hook

Clevis Shortening Grab Hook

All Grade 8 lifting components sold by UU LIFTING comply fully with the relevant section of EN1677, they are forged from alloy steel, they are crack detected following heat treatment and finally proof tested to 2.5 times working load. The full compliance of these components means that they can be used in chain slings certified to EN 818-4, for use in a temperature range of -40°C up to 200°C without reduction in working load limit.

Clevis grab hooks/g80 chain connector are constructed from heavy duty alloy steel so that their proof load is 2.5 times the work load limit. The braced saddle of the hook allows a more secure hookup and reduces wear and tear, and the almost round section resists bending. The clevis fitting of these chain components allow direct connection to the correct size of chain only. These clevis grab hooks are designed for use with grade 80 chain for shortening chain sling or holding the required length of chain in place, the hook’s slim gap prevents slip-off by allowing full engagement.

The G80 clevis shortening grab hook is made of high-quality alloy steel. Specially manufactured by forging and other techniques and surface treatment, the hook has the characteristics of high strength, exquisite appearance, easy to use but durable. It can be used as an accessory for lifting or as a trailer accessory.It can used on Heavy Industry, Mining, Water Treatment, Healthcare, Retail Industry, Food & Beverage, General Industry, Oil & Gas, Automotive Industry.

If you are interested in our products,pls contact with us now.

OUR FACTORY
Raw materials of our products are made of high-quality steel that meets the standards, and the raw materials are traceable. And multiple production lines and machines minimize lead times for rigging and lifting equipment.
RAW-MATERIAL
Raw Material
Forged-Plant
Forged
Cast Process
Cast
Chain Process
Chain Machine
Heat Treatment Plant
Heat Treatment
Powder Plastified Plant
Powder Plastified
Package Plant
Package
Warehouse Plant
Warehouse
MANUFACTURING PROCESSES
With eight automatic forging and semi-automatic forging line of up to 1600ton press machines and specialized drillng, tapping, heat treatment and inspection equipment. Strict and standardized production process ensures you receive perfect products.
MANUFACTURING-PROCESSES-shackle
QUALITY CONTROL
All rigging and lifting products are subjected to strict working tension and breaking the tension test. Complied with ISO9001 and CE certification. Our promise to you: Guaranteed safety at work for people and materials.
G70 Chain Test
Chain Test
Clamp Test
Clamp Test
Hook Test
Hook Test
Link Test
Link Test
Shackle Tension Test
Shackle Tension Test
Snap Hook Test
Snap Hook Test
