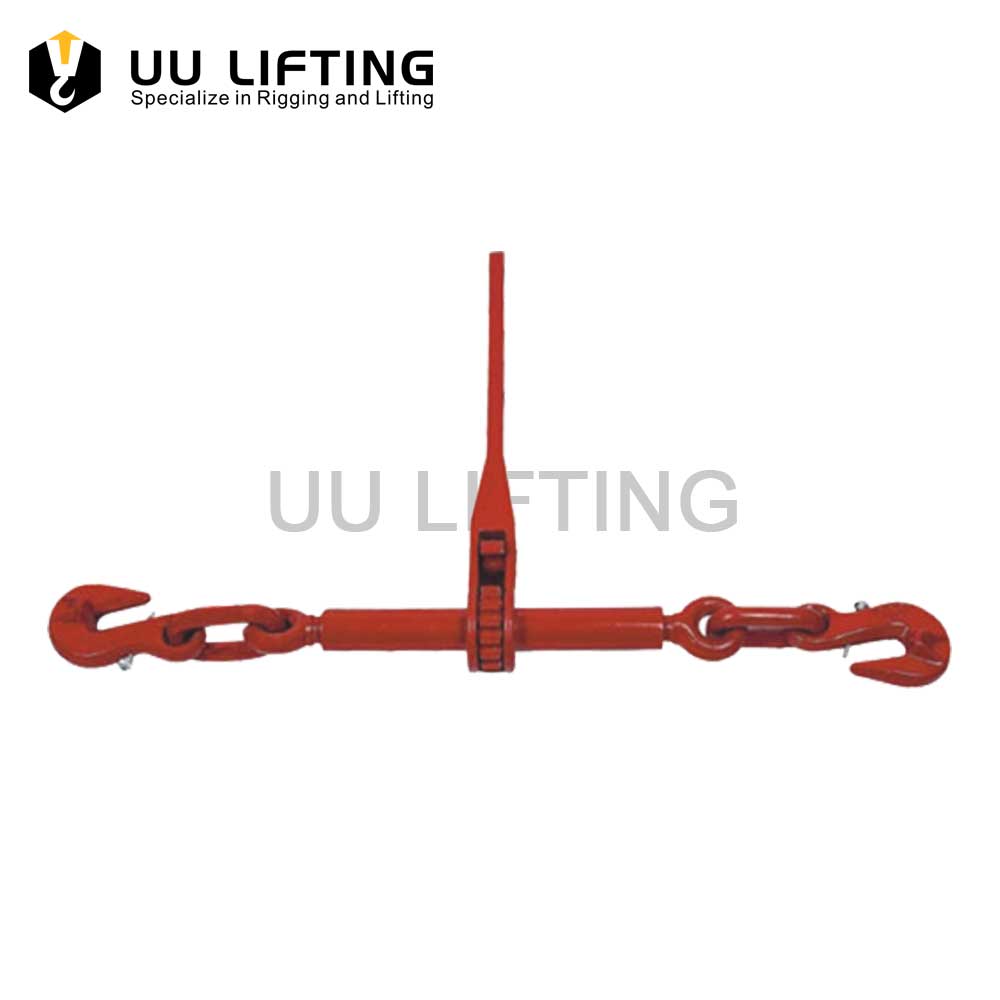

G80 En Standard Load Binder

Categories Load Binders, Rigging Hardware Tag Grade 8/80 Components

Specification

Additional information

Material	High Tensile Steel
Surface finish	Powder Coating
Sizes	From 6mm to 16mm
Technique Procedure	Drop Forged, Machining, Quenched and Tempered

Description

G80 En Standard Load Binder Specifications:

MOQ	1 Pallet, 1 Ton or 3000USD
Material	Alloy Steel
Surface finish	Hot Dipped Galvanized/Powder coated
Sizes	From 6mm to 16mm
Technique Procedure	Drop Forged, Machining, Quenched and Tempered
HS code	732690

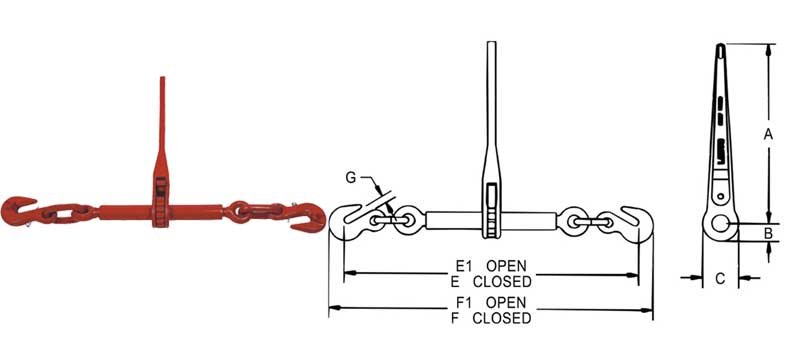

G80 En Standard Load Binder Sizes：

G80 En Standard Load Binder Sizes
Min-Max Chain Size (mm)	Working Load Limit (LC)	Proof Load (KN)	Minimum Ultmate Strength (KN)	Weight Each (KG)	Handle Length (in.)	Barrel Length (in.)	Take Up (in.)	Dimensions (in.)
Min-Max Chain Size (mm)	Working Load Limit (LC)	Proof Load (KN)	Minimum Ultmate Strength (KN)	Weight Each (KG)	Handle Length (in.)	Barrel Length (in.)	Take Up (in.)	A	B	C	E	E1	F	F1	G
6	22	33	45.2	1.78	7.16	6.3	4.65	7.16	0.89	1.77	17.40	22.04	19.20	23.84	0.35
8	40	60	80.4	4.55	13.42	9.92	8	13.32	1.30	2.60	23.78	31.78	26.14	34.14	0.47
10	63	94.5	126	5.75	13.92	9.92	8	13.92	1.30	2.60	23.82	31.82	26.93	34.93	0.63
13	100	150	212	8.56	13.92	9.92	8	13.92	1.30	2.60	25.90	33.90	29.57	34.57	0.72
16	160	240	322	13.4	13.42	11	10	13.92	1.30	2.60	26.50	34.80	31.60	39.90	0.92

OUR FACTORY

Raw materials of our products are made of high-quality steel that meets the standards, and the raw materials are traceable. And multiple production lines and machines minimize lead times for rigging and lifting equipment.

MANUFACTURING PROCESSES

With eight automatic forging and semi-automatic forging line of up to 1600ton press machines and specialized drillng, tapping, heat treatment and inspection equipment. Strict and standardized production process ensures you receive perfect products.

QUALITY CONTROL

All rigging and lifting products are subjected to strict working tension and breaking the tension test. Complied with ISO9001 and CE certification. Our promise to you: Guaranteed safety at work for people and materials.
