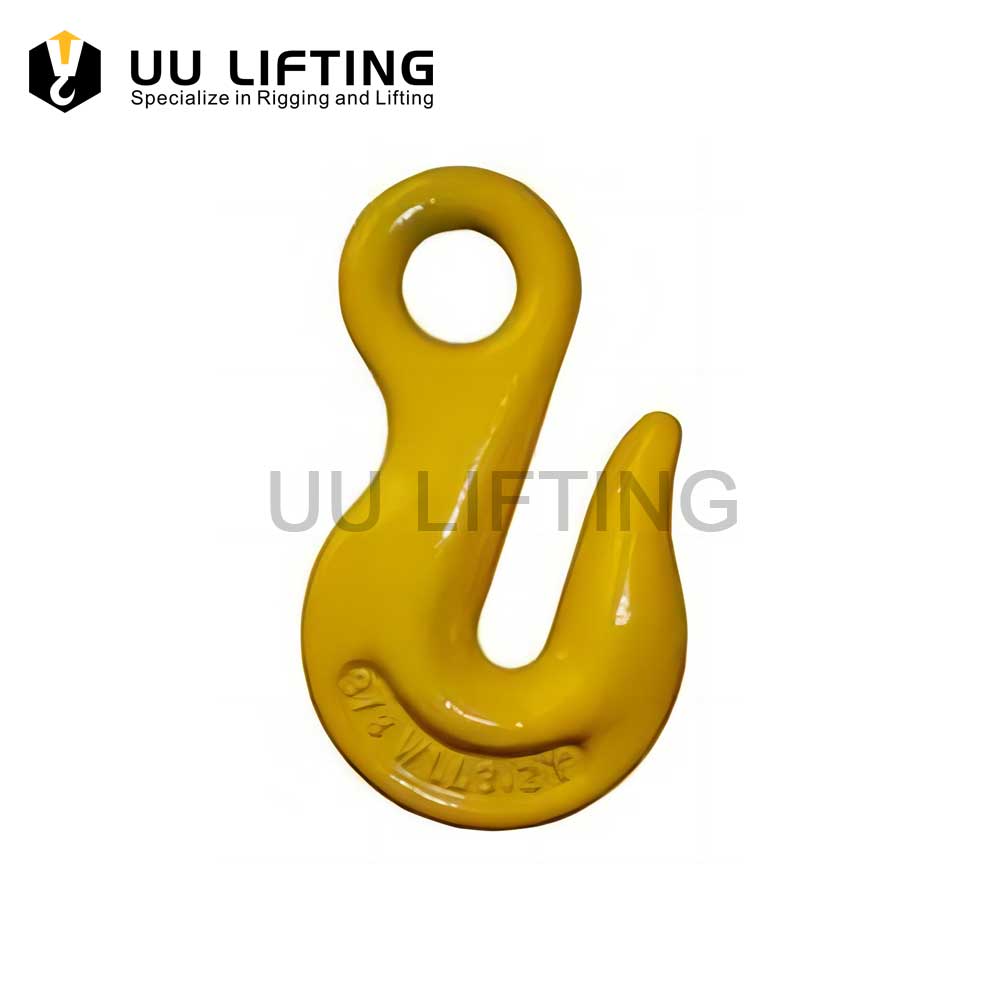

G80 Eye Shortening Grab Hook

Categories Hooks, Rigging Hardware Tags G80 Chain Connector, Grab Hooks, Grade 8/80 Components, Grade 8/80 Hooks, Lifting Hook

The Grade 80 eye shortening grab hook features a unique shallow throat opening designed to latch onto a chain link securely and prevent slipping. Unlike ordinary grab hooks, its shortening design ensures a full chain link is held for a tighter grip, enhancing safety. This hook offers the versatility to adjust the chain length on a sling and supports back-hooking, adding to its practicality in various lifting scenarios.

Specification

Additional information

Material	Alloy Steel
Surface Treatment	Powder Painted
Size	From 6mm to 32mm
Safety factor	4:1
Application	Overhead Lifting, Lashing, Towing

Description

G80 Eye Shortening Grab Hook Specifications：

MOQ	1 Pallet, 1 Ton or 3000USD
Material	Alloy Steel
Surface Finish	Powder plasticized
Sizes	From 6mm to 32mm
Technique Procedure	Drop forged
Safety Factor	4:1
HS code	732690

G80 Eye Shortening Grab Hook Sizes：

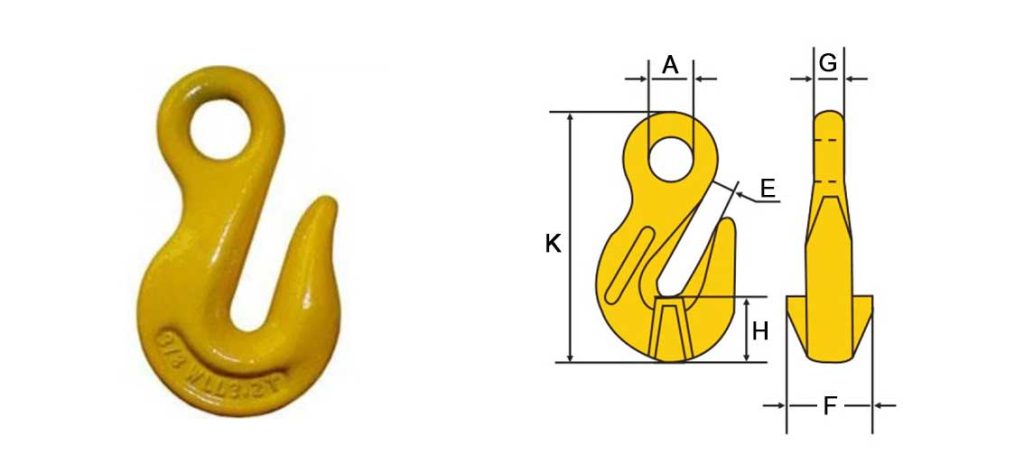

G80 Eye Shortening Grab Hook Sizes
Size	Weight (kg)	W.L.L (t)	Dimension (mm)
Size	Weight (kg)	W.L.L (t)	K	G	F	A	H	E
6-8	0.135	1.2	75.2	8	22	13.5	16	8
7/8-8	0.25	2	88.5	9	35	17	18.5	10.8
10-8	0.7	3.2	121.5	14.5	47	20	29	13
13-8	1.325	5.3	158	17	58	26	42.8	16.5
16-8	2.3	8	169	22	71	30	45.7	19.2
20-8	4.6	12.5	219	23	98	37	56	24
22-8	8.2	15	259	26	110	44	68	28
26-8	9.8	21.2	298	30	124	48	77	30
32-8	19.4	31.5	361	36	138	57	95	38

OUR FACTORY

Raw materials of our products are made of high-quality steel that meets the standards, and the raw materials are traceable. And multiple production lines and machines minimize lead times for rigging and lifting equipment.

MANUFACTURING PROCESSES

With eight automatic forging and semi-automatic forging line of up to 1600ton press machines and specialized drillng, tapping, heat treatment and inspection equipment. Strict and standardized production process ensures you receive perfect products.

QUALITY CONTROL

All rigging and lifting products are subjected to strict working tension and breaking the tension test. Complied with ISO9001 and CE certification. Our promise to you: Guaranteed safety at work for people and materials.
