G80 Master Link A-342

G80 US Type Master Link A-342

Categories , Tags ,

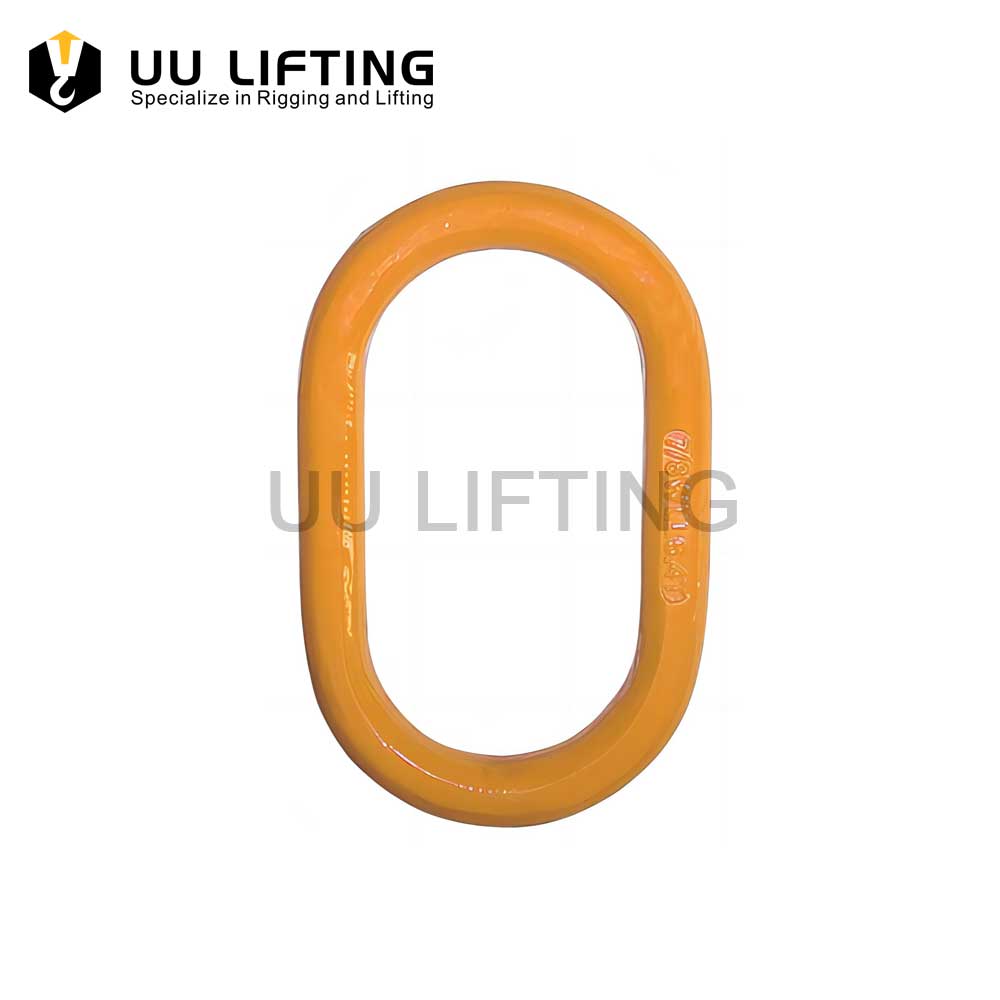

The G80 master link, often called an oblong link, accommodates single and multi-leg slings. Its broad shape ensures appropriate spacing for multi-leg lifting and facilitates straightforward attachment to hoists, cranes, slings, and winches, directly or through a shackle, as required.

Specification

Additional information

Material

Alloy Steel
Surface Treatment

Powder Painted
ASK FOR A QUOTE

Description

G80 US Type Master Link A-342 Specifications：

MOQ1 Pallet, 1 Ton or 3000USD
MaterialAlloy Steel
Surface FinishPowder plasticized
W.L.LFrom 2t to 115t
Technique ProcedureDrop forged

G80 US Type Master Link A-342 Sizes：

G80 Master Link A-342 Sizes

G80 Master Link A-342 Sizes
SizeWeight (kg)W.L.L (t)Dimension (mm)
ABD
1/2"0.45212763.514
5/8"0.73.251527616
3/4"1.044.751407020
7/8"1.476.41609022
7/8"1.5781788922
1"2.1111788925
1-1/4"4.21622011032
1-1/2"7.2521.727014038
1-3/4"11.5528.430515245
2"16.563535517850
2-1/4"24.54535019050
2-1/2"32.15043022063
2-3/4"42.56045025070
3"50.127045027075
3-1/4"59.118048025080
3-1/2"79.419050027090
4"115100600300100
OUR FACTORY
Raw materials of our products are made of high-quality steel that meets the standards, and the raw materials are traceable. And multiple production lines and machines minimize lead times for rigging and lifting equipment.
RAW-MATERIAL
Raw Material
Forged-Plant
Forged
Cast Process
Cast
Chain Process
Chain Machine
Heat Treatment Plant
Heat Treatment
Powder Plastified Plant
Powder Plastified
Package Plant
Package
Warehouse Plant
Warehouse
MANUFACTURING PROCESSES
With eight automatic forging and semi-automatic forging line of up to 1600ton press machines and specialized drillng, tapping, heat treatment and inspection equipment. Strict and standardized production process ensures you receive perfect products.
MANUFACTURING-PROCESSES-shackle
QUALITY CONTROL
All rigging and lifting products are subjected to strict working tension and breaking the tension test. Complied with ISO9001 and CE certification. Our promise to you: Guaranteed safety at work for people and materials.
G70 Chain Test
Chain Test
Clamp Test
Clamp Test
Hook Test
Hook Test
Link Test
Link Test
Shackle Tension Test
Shackle Tension Test
Snap Hook Test
Snap Hook Test
