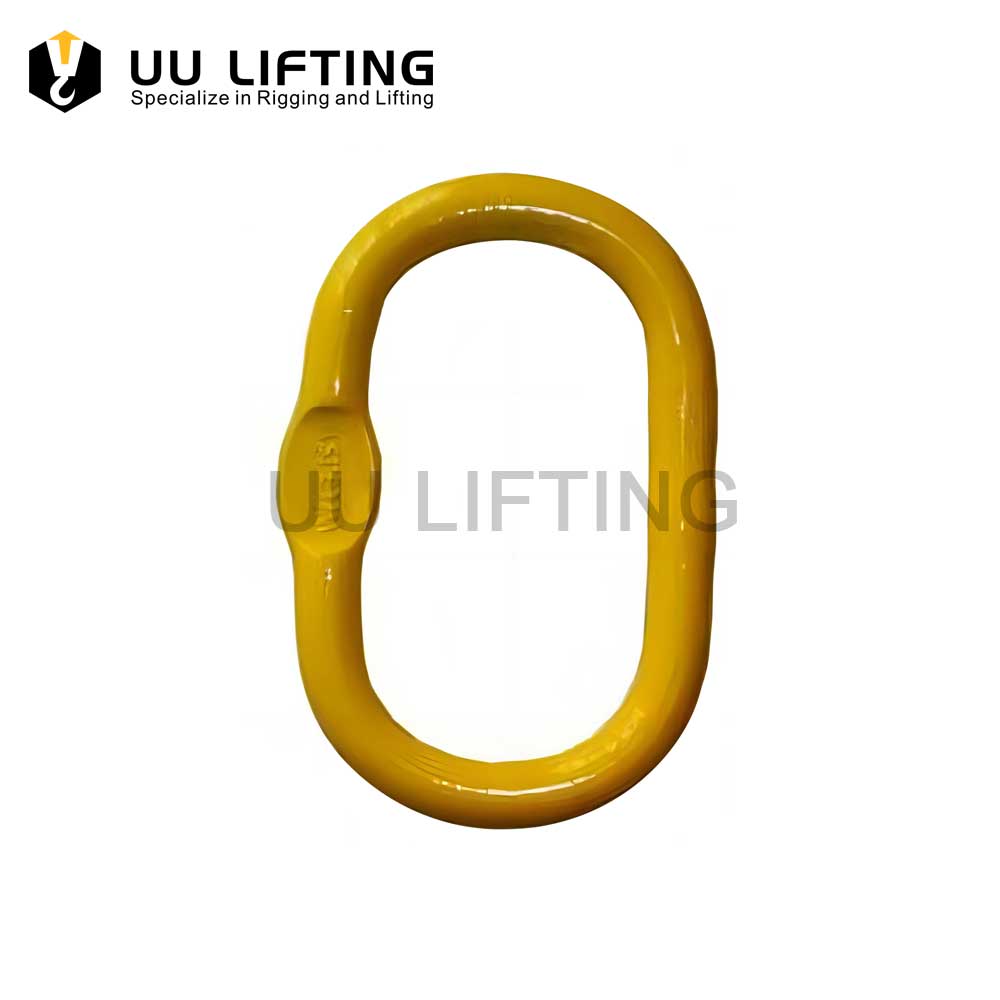

G80 US Type Welded Master Link A344

G80 US Type Welded Master Link A344

Categories , Tags ,

The Grade 80 welded master link, often referred to as a welded oblong link, is characterized by its spacious inside width and length. This design provides ample space for both single and multiple leg slings.

Specification

Additional information

Material

Alloy Steel
Surface Treatment

Powder Painted
ASK FOR A QUOTE

Description

G80 US Type Welded Master Link A344 Specifications：

MOQ1 Pallet, 1 Ton or 3000USD
MaterialAlloy Steel
Surface FinishPowder plasticized
W.L.LFrom 1.12t to 45t
Technique ProcedureDrop forged

G80 US Type Welded Master Link A344 Sizes：

G80 US Type Welded Master Link A344 Sizes

G80 US Type Welded Master Link A344 Sizes
N.W (kg)Chain (in)W.L.L (t)Wire Rope (5:1)W.L.L (t) RopeDimension (mm)
1 Leg2 LegsABDS
0.271/41.121.61.6100±560±512±16+0.5
9/321.5—
0.389/321.52.122.5100±560±514±17.6±0.5
5/162—
0.855/1622.84160±690±518±18.4±0.5
3/83.15—
1.23/83.154.256.5160±690±520±110.5±0.5
1/25.3—
1.631/25.37.58180±6100±522±113.5±0.5
5/88—
2.135/8811.211.5180±6100±525±116.5±0.5
19mm11.2—
3.813/412.5—11.8270±7140±628+1/-219±0.5
5.0519mm11.21616270±7140±632+1/-219±0.5
7/815—
6.837/81521.224285±7155±636+1/-220±0.5
121.2—
8.928mm25—25300±8160±640+1/-226±0.5
12.8121.23031.5340±10180±645+1/-226±0.5
1-1/431.5—
17.31-1/431.54545390±10215±751+1/-232±0.5
