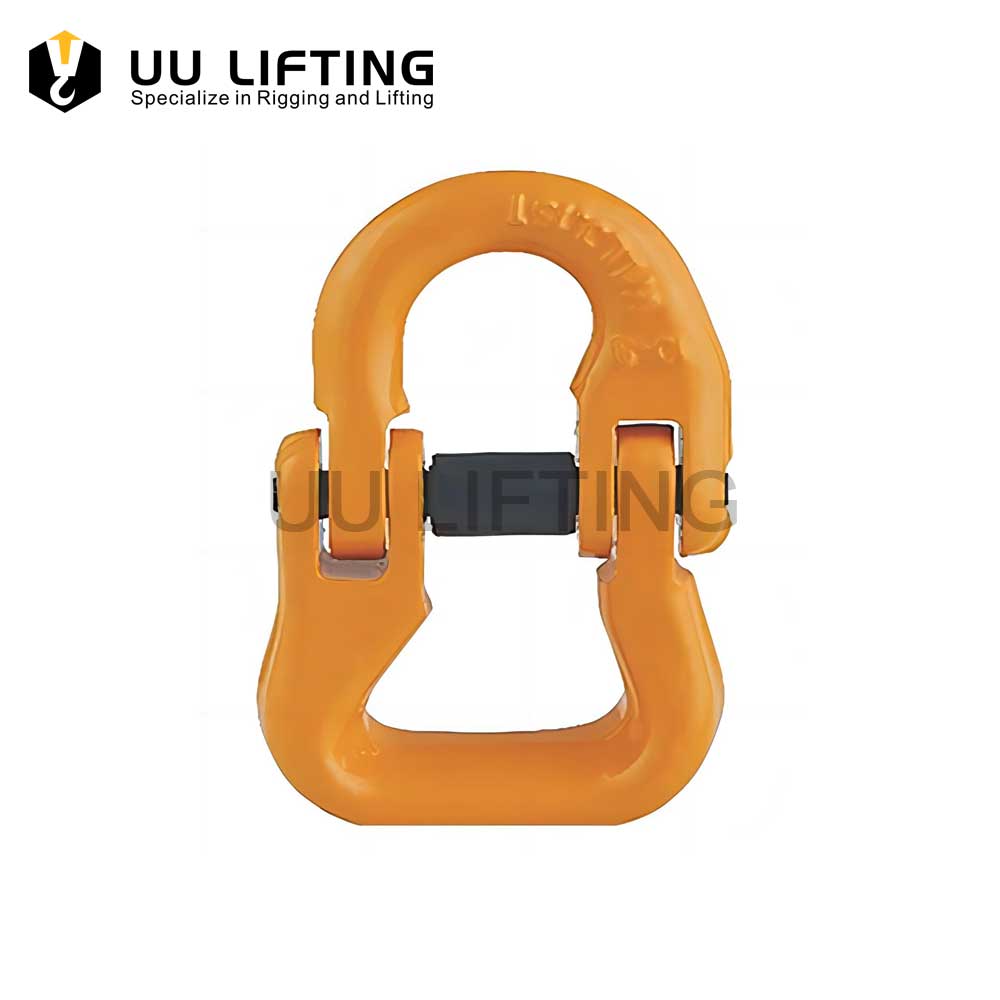

G80 Webbing Sling Connecting Link

G80 Webbing Sling Connecting Link

Categories , Tag

Crafted from super alloy steel with high strength, low weight, and lasting durability, this product is specifically designed for quick attachment to webbing slings. It features clear markings of “G80” or “8” for straightforward identification and is perfectly compatible with webbing slings. The locking pin can be easily removed to facilitate this connection.

Specification

Additional information

Material

Alloy Steel
Surface Treatment

Powder Painted
Size

From 6mm to 32mm
Safety factor

4:1
Application

Overhead Lifting, Lashing, Towing
ASK FOR A QUOTE

Description

G80 Webbing Sling Connecting Link Specifications：

MOQ1 Pallet, 1 Ton or 3000USD
MaterialAlloy Steel
Surface FinishPowder plasticized
SizesFrom 6mm to 32mm
Technique ProcedureDrop forged
Safety Factor4:1
HS code732690

G80 Webbing Sling Connecting Link Sizes：

G80 Webbing Sling Connecting Link Sizes

G80 Webbing Sling Connecting Link Sizes
SizeWeight (kg)W.L.L (T)Dimension (mm)
ABKWGD
6-80.21.215605640187
7/8-80.322061.563.740249.5
10-80.683.22466833930.511
13-81.475.3288893.75536.816.5
16-82.3834.510812065.545.219.8
20-83.312.5411291388051.823
22-86.8915501911801267026
26-810.6221.258228.4209.51523230
32-818.9231.572.52522791609155
OUR FACTORY
Raw materials of our products are made of high-quality steel that meets the standards, and the raw materials are traceable. And multiple production lines and machines minimize lead times for rigging and lifting equipment.
RAW-MATERIAL
Raw Material
Forged-Plant
Forged
Cast Process
Cast
Chain Process
Chain Machine
Heat Treatment Plant
Heat Treatment
Powder Plastified Plant
Powder Plastified
Package Plant
Package
Warehouse Plant
Warehouse
MANUFACTURING PROCESSES
With eight automatic forging and semi-automatic forging line of up to 1600ton press machines and specialized drillng, tapping, heat treatment and inspection equipment. Strict and standardized production process ensures you receive perfect products.
MANUFACTURING-PROCESSES-shackle
QUALITY CONTROL
All rigging and lifting products are subjected to strict working tension and breaking the tension test. Complied with ISO9001 and CE certification. Our promise to you: Guaranteed safety at work for people and materials.
G70 Chain Test
Chain Test
Clamp Test
Clamp Test
Hook Test
Hook Test
Link Test
Link Test
Shackle Tension Test
Shackle Tension Test
Snap Hook Test
Snap Hook Test
