G80 Weld D Ring With Wrap

Categories Hooks, Rigging Hardware Tags Grade 8/80 Components, Grade 8/80 Hooks, Lifting Hook

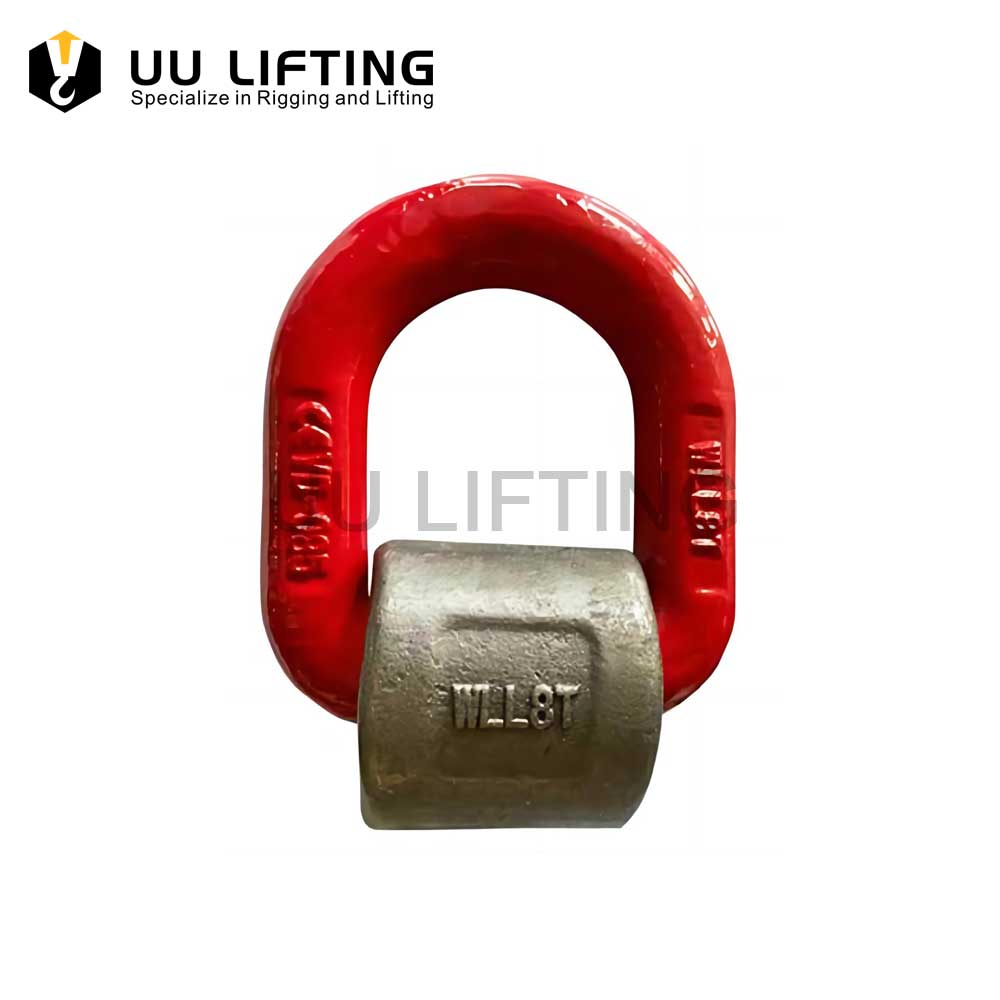

The G80 forged D ring with spring, crafted from high-quality forged alloy steel, features elevated sections on either side of the ring to enhance its connectivity. Its support is exceptional, particularly when there’s uneven force on the ring’s sides or when it’s welded onto a non-uniform surface.

Specification

Additional information

Material	Alloy Steel
Surface Treatment	Powder Painted
Application	Overhead Lifting, Lashing, Towing

Description

G80 Weld D Ring With Wrap Specifications：

MOQ	1 Pallet, 1 Ton or 3000USD
Material	Alloy Steel
Surface Finish	Powder plasticized
W.L.L	From 1.12t to 15t
Technique Procedure	Drop forged

G80 Weld D Ring With Wrap Sizes：

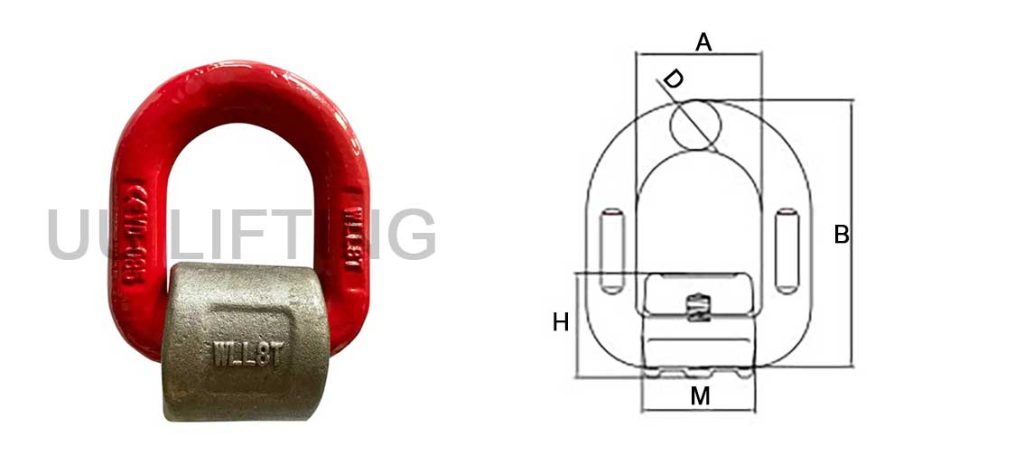

G80 Weld D Ring With Wrap Sizes
W.L.L (t)	B.L. (t)	Dimension (mm)					Weight (kg)
W.L.L (t)	B.L. (t)	A±1	2B±2	D±1	M±1.2	H±0.3	Weight (kg)
1.12	4.48	41	78.5	13	37	35	0.4
2	8	42	88	14	40	37	0.47
3.15	12.8	45	94	17	42.5	40	0.69
5.3	21.2	55	118	22	61	52	1.46
8	32	70	141	26.5	70.5	57	2.5
15	60	97	188	34	90	77	5.79

OUR FACTORY

Raw materials of our products are made of high-quality steel that meets the standards, and the raw materials are traceable. And multiple production lines and machines minimize lead times for rigging and lifting equipment.

MANUFACTURING PROCESSES

With eight automatic forging and semi-automatic forging line of up to 1600ton press machines and specialized drillng, tapping, heat treatment and inspection equipment. Strict and standardized production process ensures you receive perfect products.

QUALITY CONTROL

All rigging and lifting products are subjected to strict working tension and breaking the tension test. Complied with ISO9001 and CE certification. Our promise to you: Guaranteed safety at work for people and materials.
