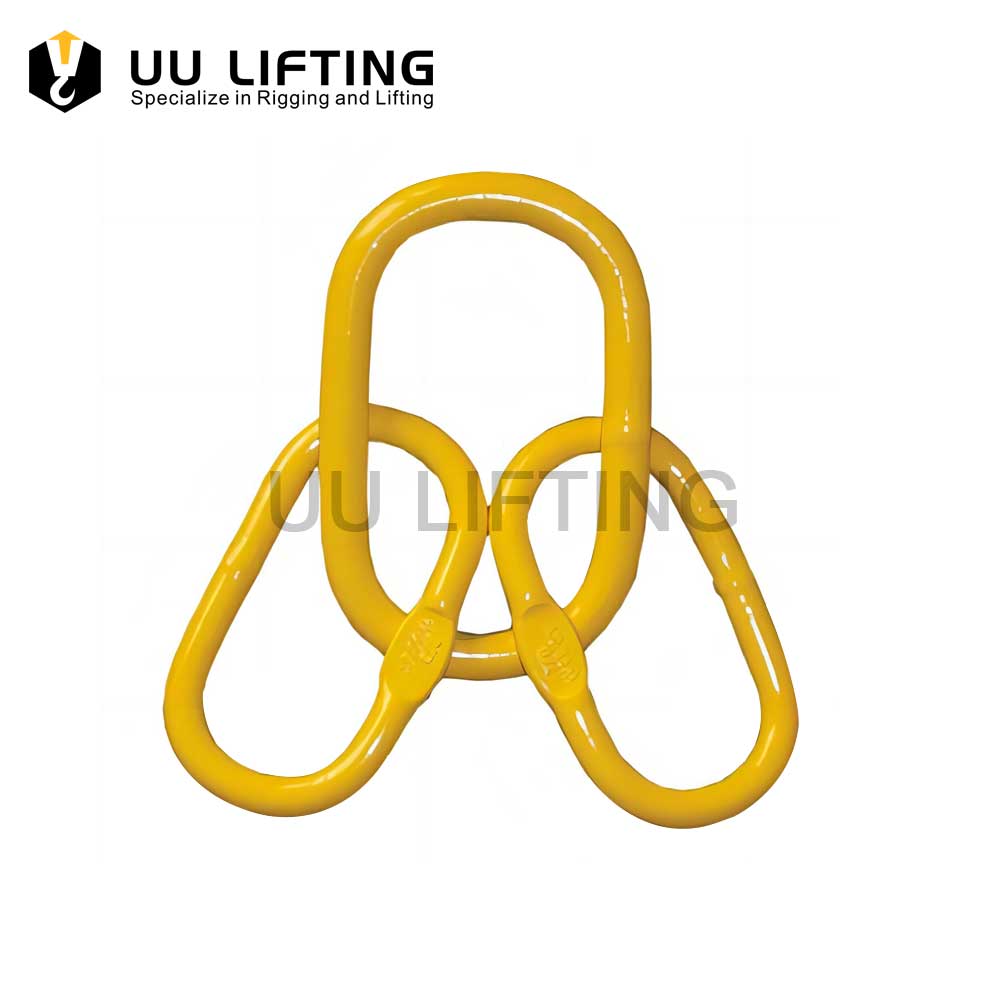

G80 Welded Master Link Assembly A-347

The A-347 Welded Master Link Assembly, crafted for safe rigging and lifting tasks, features ample inside dimensions to accommodate crane hooks and sling hardware comfortably. Its sturdy and dependable design ensures reliable performance.

Specification

Additional information

Material

Alloy Steel

Surface Treatment

Powder Painted

Description

G80 Welded Master Link Assembly A-347 Specifications:

MOQ1 Pallet, 1 Ton or 3000USD
MaterialAlloy Steel
Surface FinishPowder plasticized
W.L.LFrom 2t to 40t
Technique ProcedureDrop forged

G80 Welded Master Link Assembly A-347 Sizes:

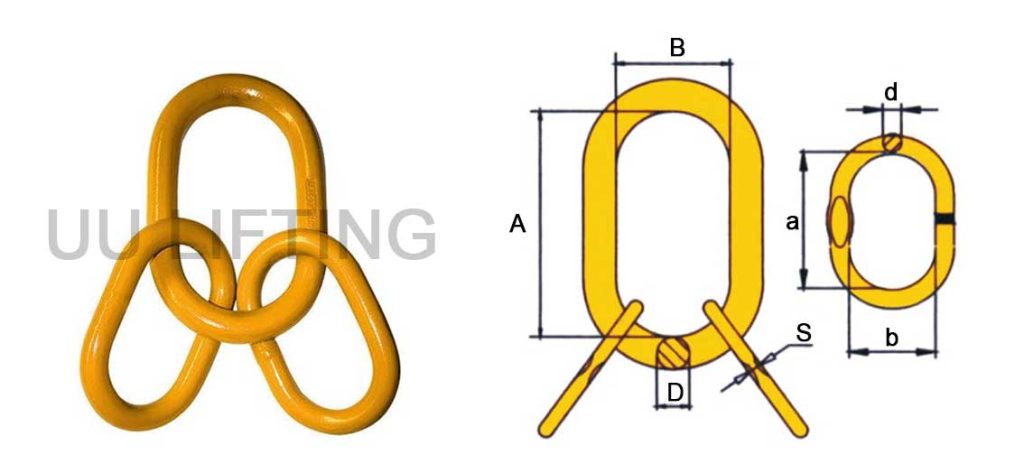

G80 Master Link Assessbly A-345 Sizes

G80 Welded Master Link Assembly A-347 Sizes
SizeChain (4:1)Wire Rope (5:1)Weight (kg/pc)Dimension (mm)
W.L.L/tB.L/tW.L.L/tB.L/tABDabds
1/2"2.49.62100.8210060148540126
11/16"3.212.82.512.51.6160901810060147.6
5/8"3.212.82.512.51.61160901810060147.6
3/4"5204201.95160902010060147.6
7/8"8326.4323.161801002215070188.4
1-1/8"12489.6486.7527014028160902213.5
1-1/4"17.469.613.969.59.31270140321801002516.5
1-1/2"2184--18.43001604027014031-
1-3/4"30120--26.43401804528515536-
2"40160--42.913501905134018045-
OUR FACTORY
Raw materials of our products are made of high-quality steel that meets the standards, and the raw materials are traceable. And multiple production lines and machines minimize lead times for rigging and lifting equipment.
RAW-MATERIAL
Raw Material
Forged-Plant
Forged
Cast Process
Cast
Chain Process
Chain Machine
Heat Treatment Plant
Heat Treatment
Powder Plastified Plant
Powder Plastified
Package Plant
Package
Warehouse Plant
Warehouse
MANUFACTURING PROCESSES
With eight automatic forging and semi-automatic forging line of up to 1600ton press machines and specialized drillng, tapping, heat treatment and inspection equipment. Strict and standardized production process ensures you receive perfect products.
MANUFACTURING-PROCESSES-shackle
QUALITY CONTROL
All rigging and lifting products are subjected to strict working tension and breaking the tension test. Complied with ISO9001 and CE certification. Our promise to you: Guaranteed safety at work for people and materials.
G70 Chain Test
Chain Test
Clamp Test
Clamp Test
Hook Test
Hook Test
Link Test
Link Test
Shackle Tension Test
Shackle Tension Test
Snap Hook Test
Snap Hook Test
