Description

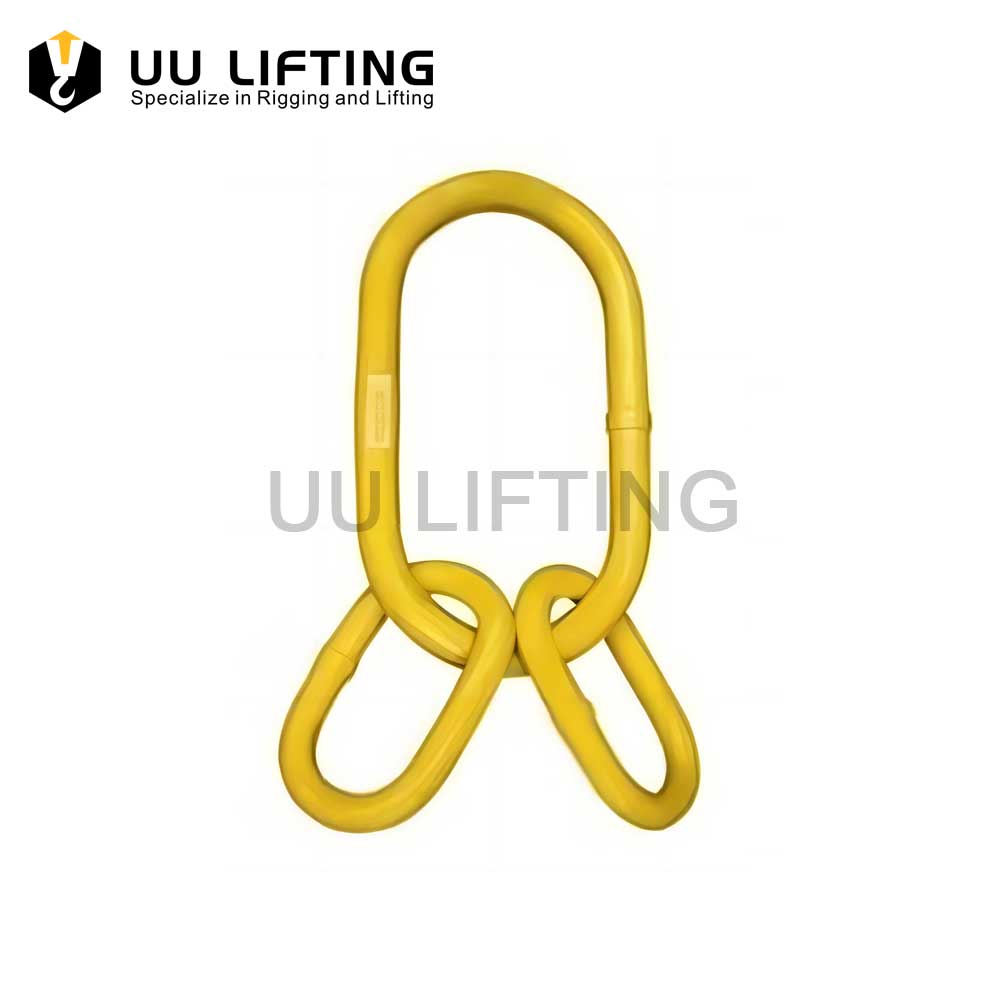

G80 Welded Master Link Assembly A-346 Specifications:

MOQ1 Pallet, 1 Ton or 3000USD
MaterialAlloy Steel
Surface FinishPowder plasticized
W.L.LFrom 2.36t to 63t
Technique ProcedureDrop forged

G80 Welded Master Link Assembly A-346 Sizes:

G80 Welded Master Link Assembly A-346 Sizes

G80 Welded Master Link Assembly A-346 Sizes
SizeWeight (kg)W.L.L (t)Dimension (mm)
ABDabd
6-81.272.361357518542514
7-81.333.151357518603814
8-82.194.251609022703416
10-83.816.718010025854018
13-86.0811.2200110321155022
16-811.3817260140361406525
18-820.0921.23401804518011032
20-823.8326.53501905018011032
22-827.1431.83551785018010038
26-835.14454002005620011540
28-847.00504302206318010045
32-866.46634602507220011050

Alloy Steel Forged G80 Welded Master Link Assembly

Master Link Assembly

The master link Assembly is a combined lifting link composed of a main link and two or more sublinks, where the main link is full die forging and the sublinks are welded. When using the ultimate working load, the included angle of the sublinks must be less than 120°. The mother link is mainly used to assemble the spreader.

The master link Assembly is mainly used to assemble the spreader; it connects the double-ring buckle and the chain and is assembled into synthetic rigging for hoisting heavy objects and equipment. The characteristics are that it can transmit long-distance loads, bear various loads and variable loads (load range: 1-500T), has a significant bearing safety factor (4~5 times), has good soft performance, is safe and reliable use, and is lightweight. Easy to carry and transport. It has high tensile strength, fatigue strength, and impact toughness. Under high-speed working conditions, it has good wear resistance, shock resistance, and good running stability. It has good corrosion resistance and can typically work in harsh environments with various harmful media.

The G80 Welded Master Link Assembly is made of high-quality alloy steel. Designed for lifting equipment operation and use with G80 alloy chain, G80 hook, or other g80 chain connector. Specially manufactured by forging and different techniques and surface treatment, the link has high strength, exquisite appearance, and is easy to use but durable. It can be used as an accessory for lifting or trailer accessory. It can used in the Heavy Industry, Mining, Water Treatment, Healthcare, Retail Industry, Food & Beverage, General Industry, Oil & Gas, and Automotive Industry.

The use of the G80 Welded Master Link Assembly should be stopped in the following situations during use:

1. The vital link is twisted and deformed more than 10 degrees

2. Cracks appear on the surface of the strength ring

3. The wear of the strong link body exceeds 10 degrees

Special Note: When using the operator, do not stand under the lifting machine and the lifting sling during the lifting process.
