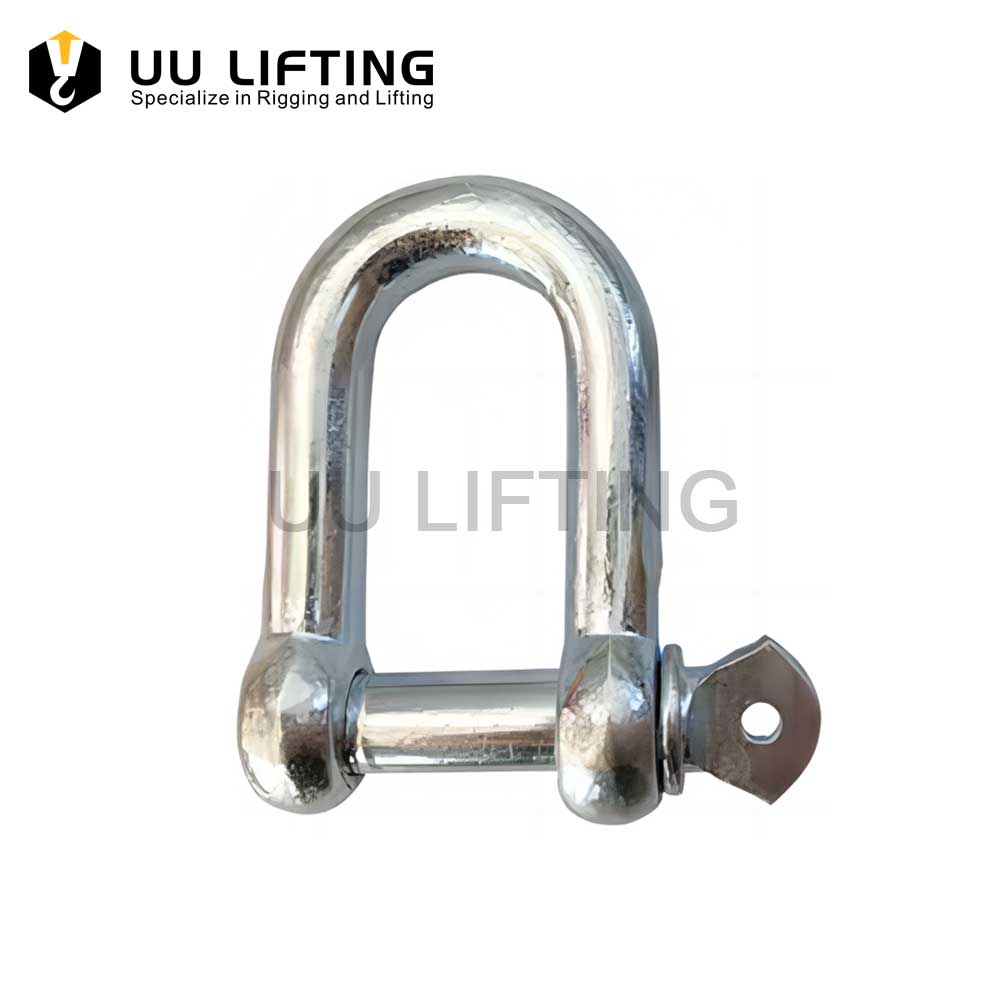

European Type Large Dee Shackle

European Type Large Dee Shackle is produced out of Q235 carbon steel with sizes from M5-M50, WLL range from 80kg to 8000kg.

Specification

Additional information

Size

From 5mm to 50mm

S.W.L

From 80kgs to 8000kgs

Surface Treatment

Electrco galvanzied

Package

PP Bag / Carton.  Plywood/Steel pallet

DOWNLOAD

Description

European Type Large Dee Shackle Specifications:

MOQ1 Pallet, 1 Ton or 3000USD
ComponentQ235
Surface finishElcectro-Galvanized(Zinc Plated)
SizesFrom 5mm-0.08ton to 50mm-8ton
Technique ProcedureFree Forged
HS code732690

European Type Large Dee Shackle Sizes:

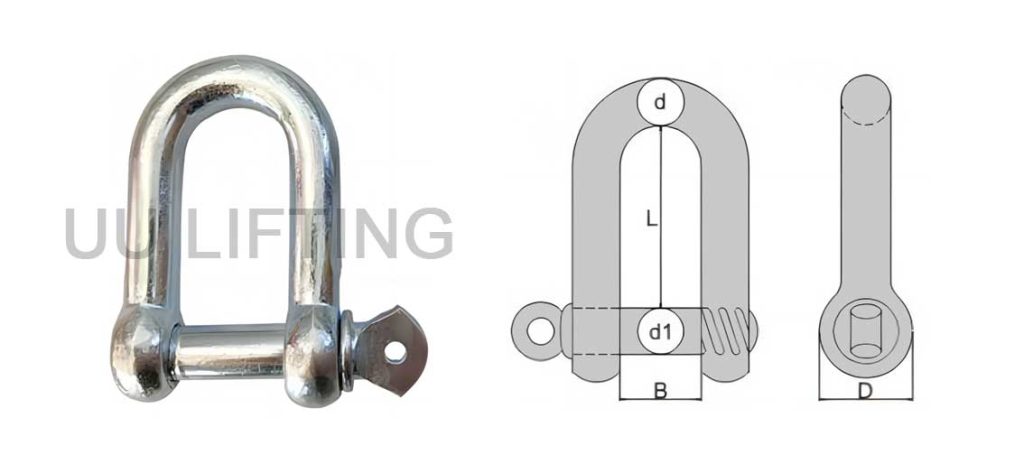

European Type Large Dee Shackle Sizes

European Type Large Dee Shackle Sizes
Size (mm)Weight (kg/pc)Work Load Limit (kg)Dimension (mm)
BDLd/d1
50.019801110195
60.0341001413256
80.072001816328
100.1332020193810
120.2452026255112
160.580033326416
200.8110040387620
221.3150050448922
2522100575110025
2833000685711528
324.33500736412732
386.755000857615238
4412.57000969018045
5017.5800010810220050

European Type Large D Shackle

Our hammer-forging large shackles are designed to meet European standards. Galvanized large dee European shackles are produced from Q235 carbon steel with sizes from M5-M50, WLL range from 80 kg to 8000 kg. Hammer forging workmanship was used in the production, and all European standard large shackles can be finished in self-color, hot-dipped galvanized, electro-galvanized, painted, or dacromet. European Type large bow shackles, large dee shackles, trawling shackles with square head screw pins, and trawling shackles with round head screw pins are available. If you are looking for any large European standard shackles, pls do not hesitate to contact us.

Screw pin Large Dee Shackle is a very versatile clevis for marine, agricultural, and industrial applications; Used for coupling chain and wire rope, convenient, strong, durable, and does not rust.

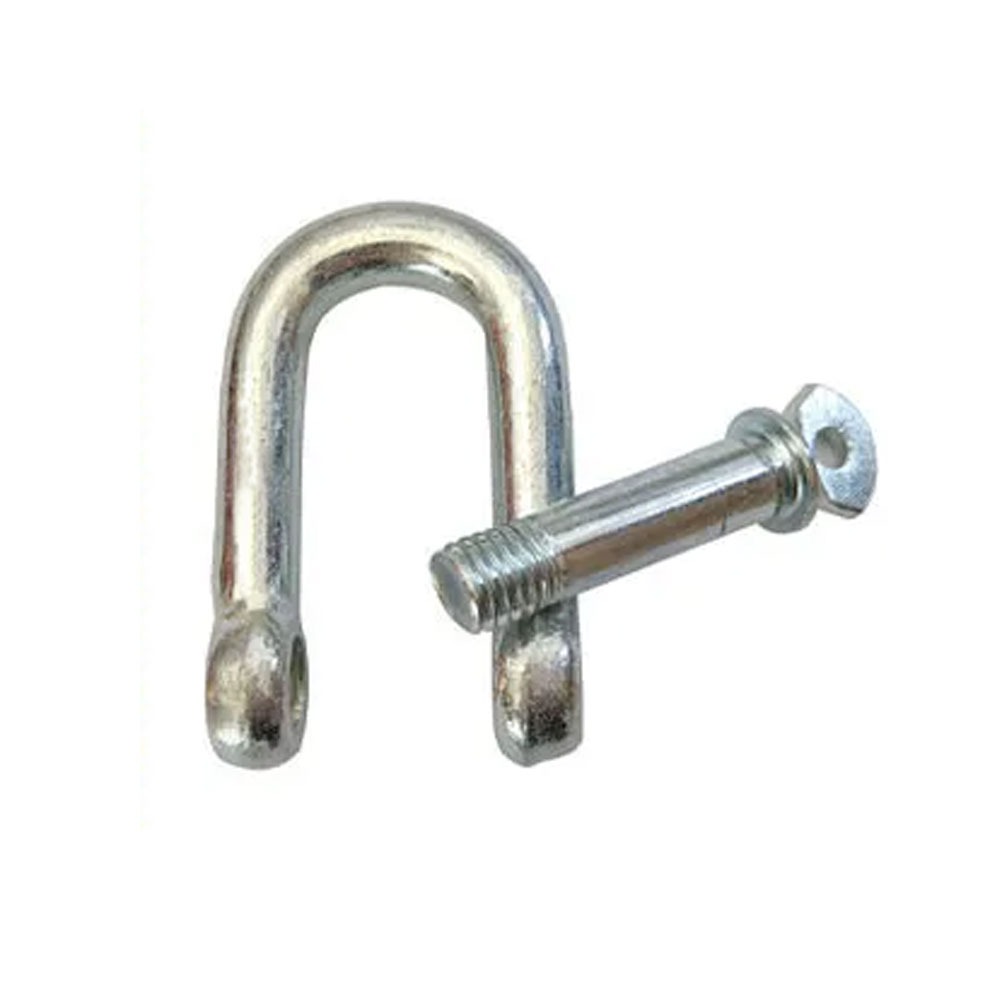

European-Type-Electro-Galvanized-Large-Dee-Shackle-1

European-Type-Electro-Galvanized-Large-Dee-Shackle-2







European-Type-Electro-Galvanized-Large-Dee-Shackle-4

JIS-type shackles US type forged shackles also can be available. Shackles are widely used in electric power, metallurgy, petroleum, machinery, railway, chemical industry, port, mining, construction, and other industries.

US type Shackle use and precautions
1. The shackle should be smooth and flat, and no defects such as cracks, sharp edges, and overheating are allowed.
2. It is strictly forbidden to use cast iron or cast steel shackles. The buckle body can be forged from killed steel, and the shaft pin can be machined after bar forging.
3. Do not drill holes or weld repairs on the shackles. After the buckle body and the shaft pin are permanently deformed, they shall not be repaired.
4. When using, the buckle body and the latch should be checked, and there should be no serious wear, deformation, and fatigue cracks.
5. When using, the horizontal spacing must not be under tension, and the shaft pin must be inserted with a safety pin.
6. After the shaft pin is correctly assembled, the width of the buckle body should not be significantly reduced, and the threaded connection is good.
7. The use of the shackle shall not exceed the specified safe load.
