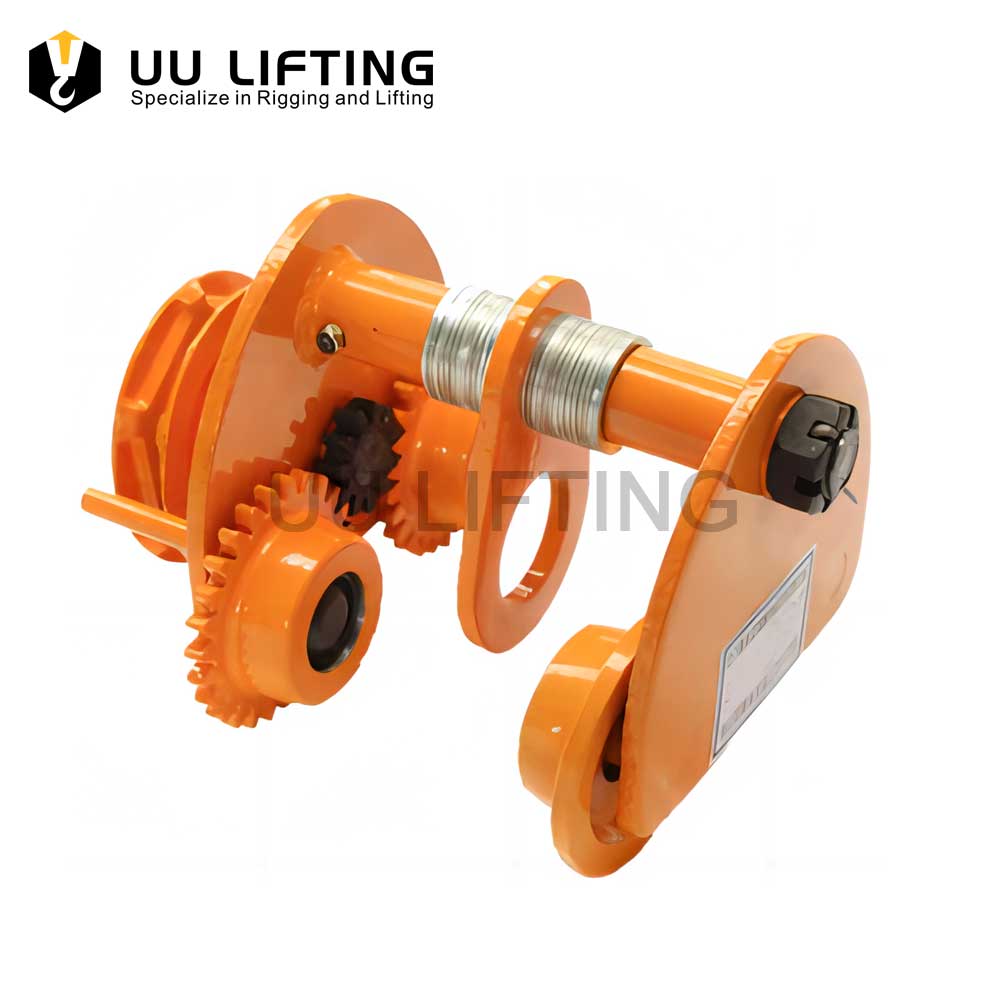

GCL-B Gear Trolley

Categories Gear Trolleys, Lift Tools & Handling Equipments

The GCL-B Geared Trolley, powered and maneuvered via a chain, features a compact design with minimal installation size and efficient power transfer. Its standout characteristic is the anti-collision capability, allowing it to operate along the lower flange of I-shaped rails smoothly.

Specification

Additional information

Rated Load	From 0.5Ton to 10Ton
I Beam Track Width	From 68mm to 203mm
Net Weight	From 4.2kg to 58kg

Description

GCL-B Gear Trolley Specifications:

GCL-B Gear Trolley Sizes
Rated Load	Test Load (t)	Minimum Orankle DIA (m)	Main Size (mm)					I Beam Track Width GB706-88 (mm)	Net Weight (kg)	Gross Weight (kg)
Rated Load	Test Load (t)	Minimum Orankle DIA (m)	A	B	C	H	F	M	Net Weight (kg)	Gross Weight (kg)
1/2	0.825	0.9	176	175	185	95	3	68-115	4.2	4.5
1	1.25	1	196	202	235	130		68-125	9.05	9.2
2	2.25	1.1	221	227	260	160		88-145	12.15	12.4
3	3.25	1.3	241	275	315	175		100-150	17.7	18
5	5.25	1.4	286	300	350	190		100-175	30	30.35
10	12.5	1.5	400	400	480	330		125-203	58	63

What is a GCL-B Gear Trolley?

A GCL-B Geared Trolley is a type of drive trolley that is powered and maneuvered using a chain. It is designed to operate along the lower flange of I-shaped rails. This trolley is part of the lift tools and handling equipment category.

Key Features and Advantages of the GCL-B Gear Trolley

The GCL-B Gear Trolley offers several notable features and advantages that make it a practical choice for material handling:

It features a compact structure and small installation dimensions, which means it doesn’t require a large amount of space for setup.
The trolley provides good and efficient power transmission.
A standout characteristic is its anti-collision function, which allows it to move freely and smoothly along the lower flange of an I-shaped rail.
The GCL-B Gear Trolley is available with rated load capacities ranging from 0.5 tons to 10 tons and can fit I-beam track widths from 68mm to 203mm.
