Gear Trolley

Gear Trolley Sizes
Rated Load	Test Load (t)	Minimum Orankle DIA (m)	Main Size (mm)					I Beam Track Width GB706-88 (mm)	Net Weight (kg)	Gross Weight (kg)
			A	B	C	H	F	M
1/2	0.825	0.9	176	200	190	110	3	68-115	4.2	4.5
1	1.25	1	196	235	220	130		68-125	10	10
2	2.25	1.1	216	260	220	125		88-145	13.3	13.5
3	3	1	236	325	300	175		100 -150	20	21
5	5.25	1.4	281	365	340	200		100 -175	32.6	33
10	13	2	420	440	400	240		125 -203	85	90
20	25	1.6	420	640	450	240		125 -203	145	150
30	38	2	450	800	420	240		150-225	180	185

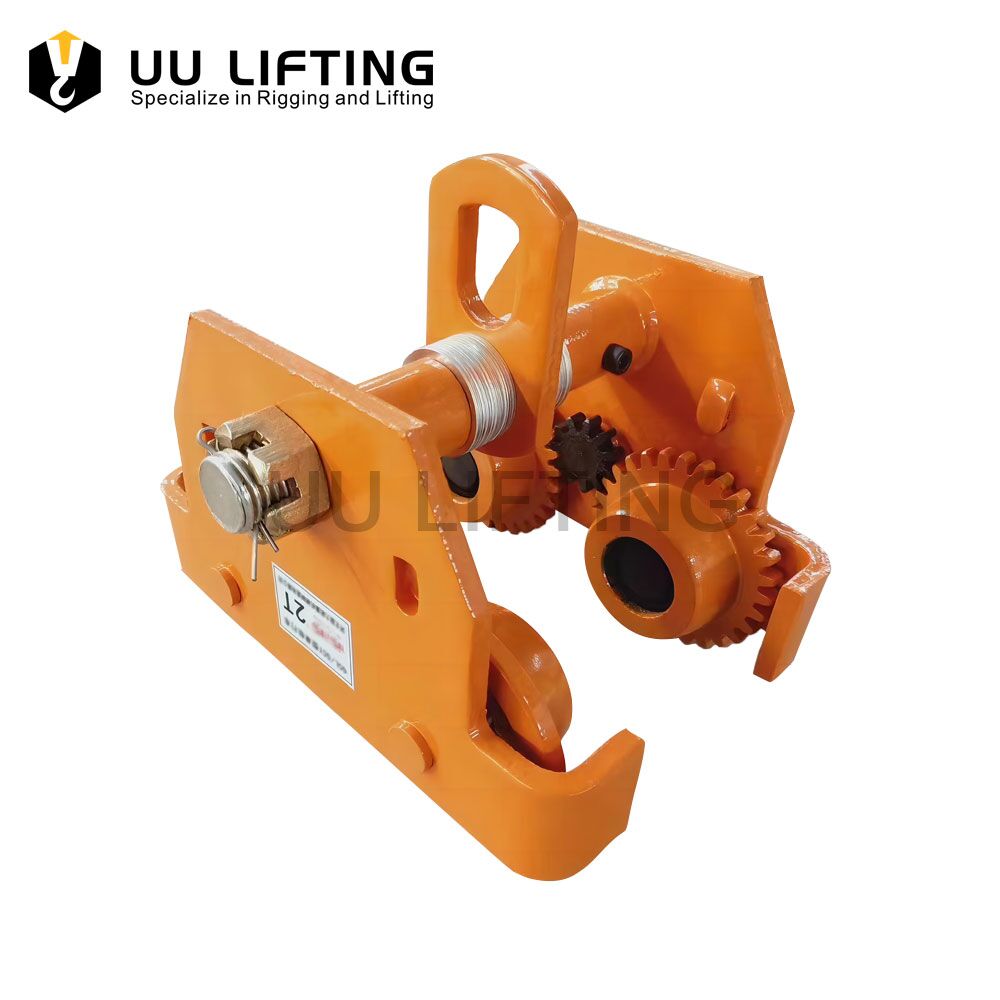

What is a Gear Trolley?

A gear trolley is a device used for carrying loads or transporting material from one point to another. It facilitates the movement of materials or loads between locations. Gear trolleys are part of a broader category of lift tools and handling equipment.

Advantages and Features of Gear Trolleys

When selecting a gear trolley, several aspects are essential to evaluate. These include its size and mobility.

Size and Capacity

Gear trolleys are available in multiple dimensions to suit different needs. The rated load capacity can range significantly, from 0.5 tons up to 30 tons. The net weight of the trolley itself also varies, from as light as 4.2 kg to as heavy as 180 kilograms, depending on its size and load capacity. They are designed to fit various I-beam track widths, typically from 68mm to 225mm.

Mobility

The ease of movement, or mobility, is a key feature of gear trolleys. Some production carts are more mobile than others, and this is a factor to consider during selection.

Construction and Materials

The raw materials used in the production of these trolleys are typically high-quality steel that meets established standards. Furthermore, these raw materials are traceable, ensuring quality control.

Production and Lead Times

Manufacturers often have multiple production lines and machines, which helps minimize lead times for rigging and lifting equipment, such as gear trolleys.
