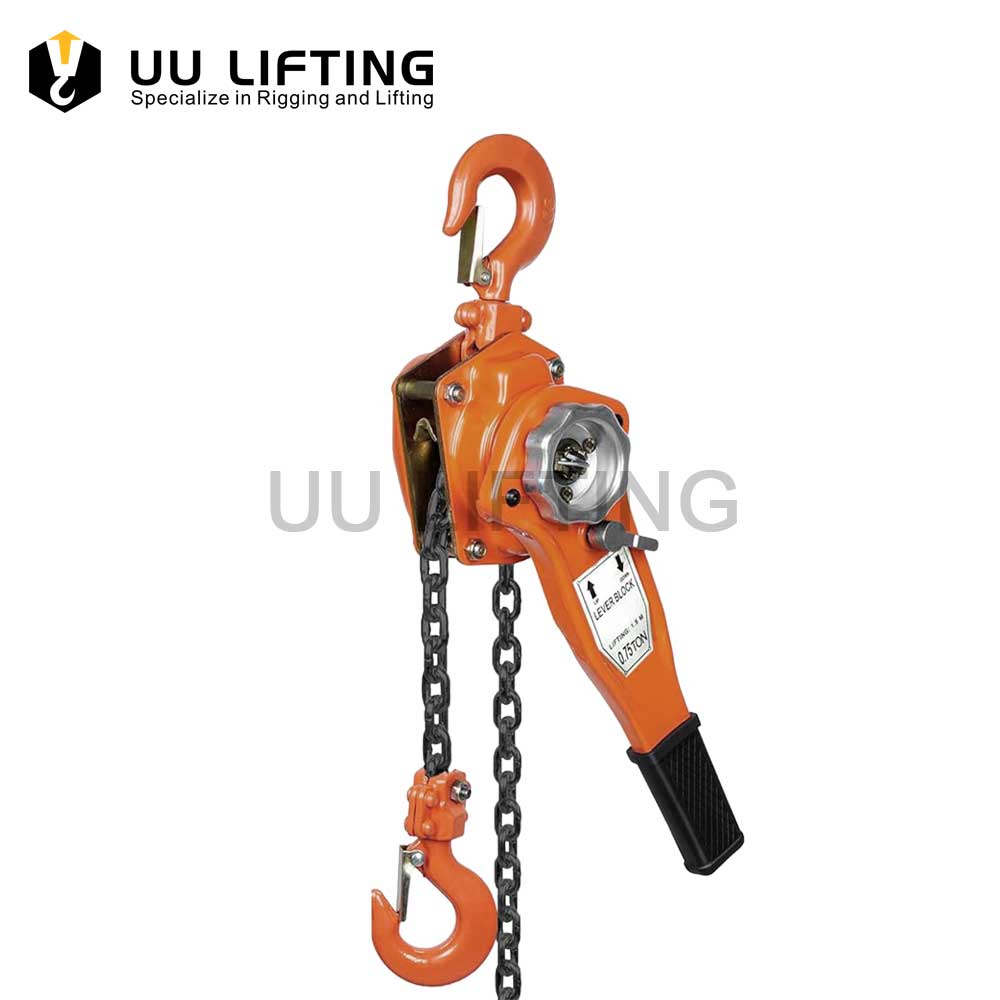

HSH Type Manual Lever Block

HSH Type Manual Lever Block Specifications
Model	Unit	HSH-0.75T	HSH-1.5T	HSH-3T	HSH-6T	HSH-9T
Capacity	Tons	0.75	1.5	3	6	9
Standard Lift	Mts	1.5	1.5	1.5	1.5	1.5
Max Hand Force	Kn	9.4	18.75	37.5	75	112.5
No.of falls of load chain	No.	1	1	1	2	3
Dia of Load Chain	mm	6	8	10	10	10
Dimension(mm)	A	150	172	202	202	202
	B	90	100	115	115	115
	C	80	110	144	144	144
	D	40	45	58	64	85
	E	280	450	500	630	700
	F	280	400	400	400	400
	G	34	38	45	50	57
Net Weight	Kg	7.8	12.4	21	31	46
Wooden Packing(L*W*H)	cm	37*16*14	54*20*16	54*20*20	55.5*21*20	60*22*31

What is an HSH Type Manual Lever Block?

An HSH Type Manual Lever Block is a specific model of a lever block. A lever block, also known as a lever hoist or come-along, is a mechanical device used to lift, pull, or tension heavy loads. It operates using a system of gears and a lever handle, allowing users to move heavy objects with minimal effort. These tools are widely used in industries like construction, manufacturing, and logistics due to their efficiency and reliability.

Advantages of HSH Type Manual Lever Block

The HSH Type Manual Lever Block offers several key advantages that make it a valuable tool for various applications:

• Enhanced Durability and Smooth Operation: It features a thickened, integrated shell that provides enhanced protection and a streamlined design, allowing the load chain to run smoothly.
• Ease of Rigging: The block is equipped with alloy steel, industrial-rated hooks that can rotate 360 degrees, making rigging easier and more flexible.
• Safety and Longevity: It utilizes a premium alloy steel grade 80 load chain, designed for enhanced safety and a prolonged service life.
• Suitability for Confined Spaces: The HSH Type Manual Lever Block has a compact design. Its more petite body and lightweight construction make it ideal for low-headroom applications and use in confined areas.
• Efficiency: Like other lever blocks, it enables users to lift heavy loads with minimal physical effort, thereby saving time and energy.
• Versatility: It can be employed in a wide range of settings, from construction sites to warehouses, for various lifting, pulling, and tensioning tasks.
• Cost-Effectiveness: By enabling tasks to be performed with less manpower, these lever blocks can help lower operational costs.
