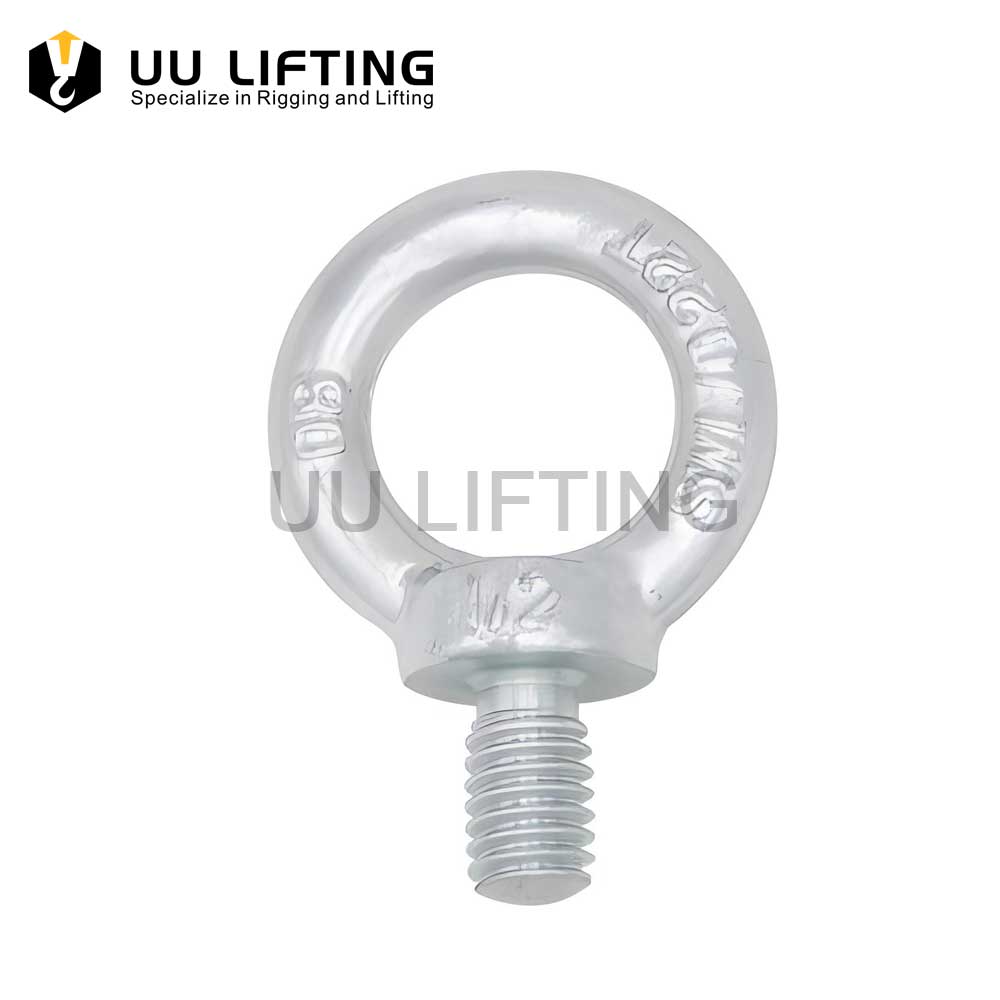

JIS B 1168 Eye Bolt

Categories Eye Bolts, Rigging Hardware

JIS B 1168 sets the standard for eye bolts, essential components for lifting heavy machinery and other products. These sturdy screws are attached to structures to secure slings or other hardware for lifting. Crafted from forged steel, they are quenched, tempered, and meticulously load-rated for maximum reliability and safety.

Specification

Additional information

Size	From 8mm to 36mm
W.L.L	From 0.079 Tons to 2.26 Tons

Description

JIS B 1168 Eye Bolt Specifications:

MOQ	1 Pallet, 1 Ton or 3000USD
Size	From 8mm to 36mm

JIS B 1168 Eye Bolt Sizes：

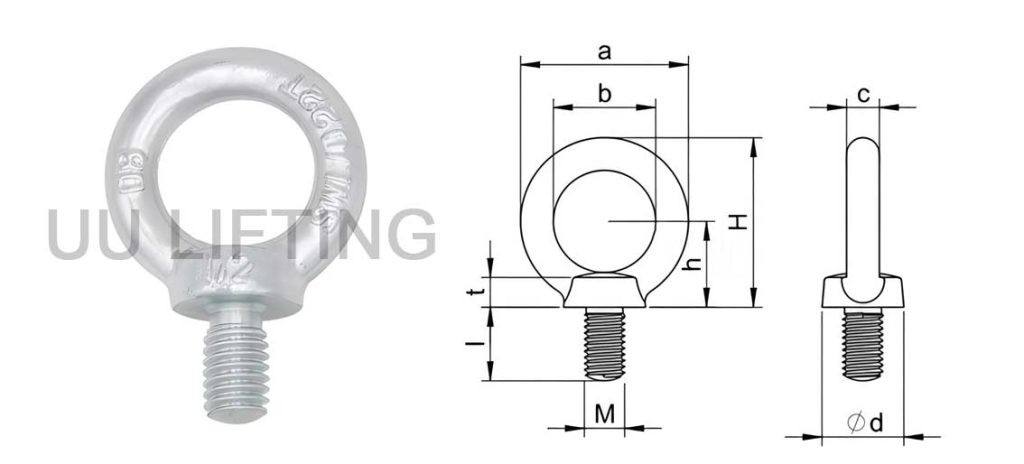

JIS B 1168 Eye Bolt Sizes
Size (mm)	WLL (Ton)	Dimensions (mm)
Size (mm)	WLL (Ton)	a	b	c	d	t	h	H	I
M8	0.079	32.60	20.00	6.30	16.00	5.00	17.00	33.30	15.00
M10	0.147	41.00	25.00	8.00	20.00	7.00	21.00	41.50	18.00
M12	0.216	50.00	30.00	10.00	25.00	9.00	26.00	51.00	22.00
M16	0.441	60.00	35.00	12.50	30.00	11.00	30.00	60.00	27.00
M20	0.618	72.00	40.00	16.00	30.00	13.00	35.00	71.00	30.00
M24	0.932	90.00	50.00	20.00	45.00	18.00	45.00	90.00	38.00
M30	1.470	110.00	60.00	25.00	60.00	22.00	55.00	110.00	45.00
M36	2.260	133.00	70.00	31.50	70.00	26.00	65.00	131.50	55.00

OUR FACTORY

Raw materials of our products are made of high-quality steel that meets the standards, and the raw materials are traceable. And multiple production lines and machines minimize lead times for rigging and lifting equipment.

MANUFACTURING PROCESSES

With eight automatic forging and semi-automatic forging line of up to 1600ton press machines and specialized drillng, tapping, heat treatment and inspection equipment. Strict and standardized production process ensures you receive perfect products.

QUALITY CONTROL

All rigging and lifting products are subjected to strict working tension and breaking the tension test. Complied with ISO9001 and CE certification. Our promise to you: Guaranteed safety at work for people and materials.
