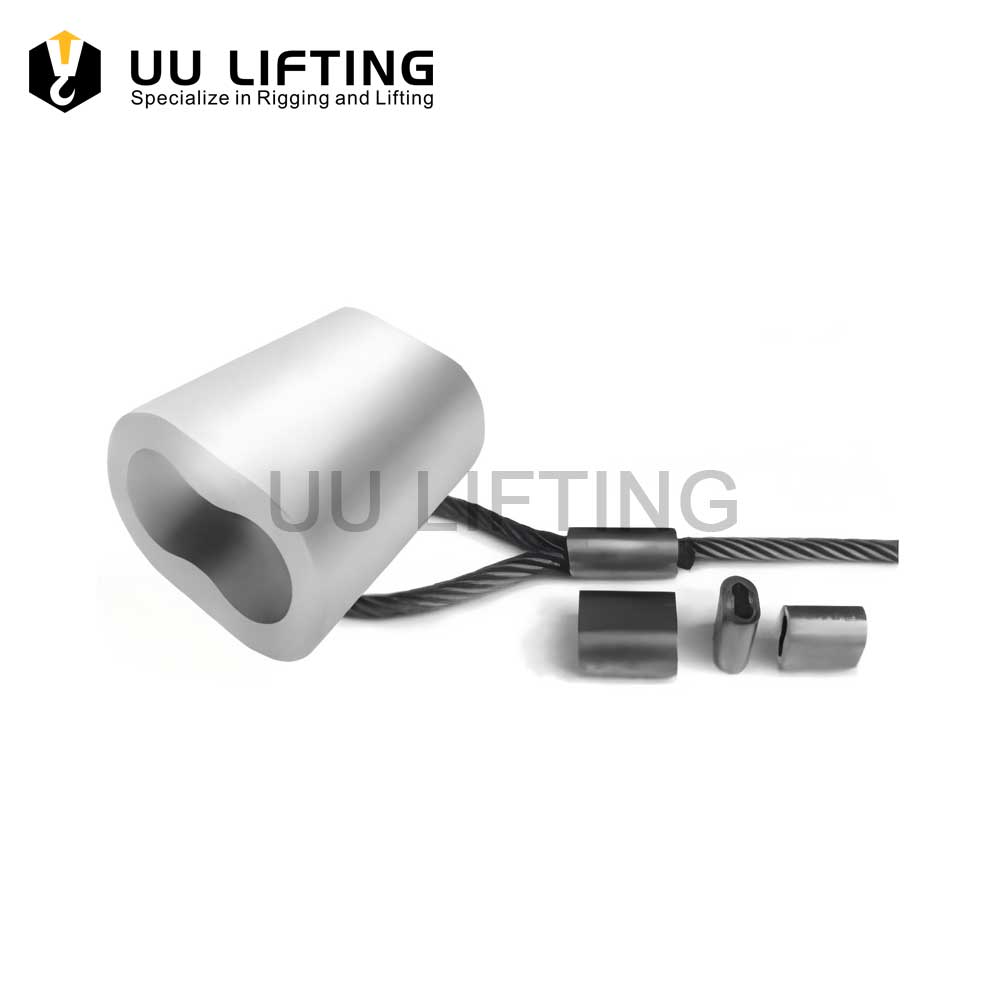

JIS Type Aluminium Ferrules

JIS Type Aluminum Ferrules are used for wire rope slings, winch cables, and other applications. They are made of aluminum, which is lightweight, non-sparking, and resistant to corrosion from salt water, food, and chemicals.

Specification

Additional information

Sizes	From 6mm to 32mm

Description

JIS Type Aluminium Ferrules Specifications:

MOQ	1 Pallet, 1 Ton or 3000USD
Size	From 6mm to 32mm

JIS Type Aluminium Ferrules Sizes：

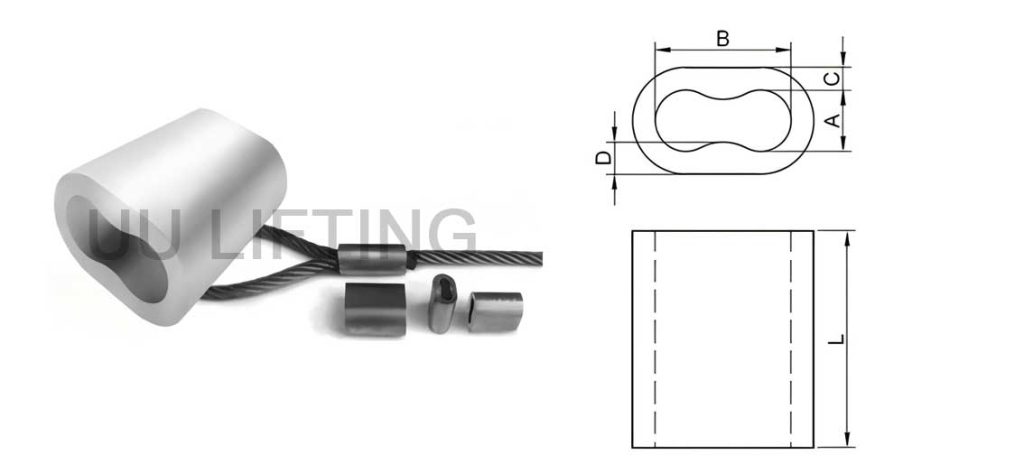

JIS Type Aluminium Ferrules Sizes
Size	A	B	C	D	L	Weight
(mm)	(mm)	(mm)	(mm)	(mm)	(mm)	kgs/1000pcs
6	7	13.8	3.2	3.8	24	10
7	8.2	16.2	3.6	4.25	26	14
8	9.4	18.6	4	4.7	32	22
9	10.22	20.7	4.3	5.52	36	29
10	11.6	23	4.5	5.5	40	37
12	13.62	27.6	5.3	6.92	48	63
14	15.89	32.2	5.53	7.42	56	88
16	18.16	36.8	6.32	8.48	64	130
18	20.43	41.4	7.11	9.54	72	186
20	23.1	46	7.7	9.2	80	245
22	25.4	50.6	8.3	10	88	319
24	27.8	55.3	8.9	10.9	96	408
26	29.9	59.8	10.7	12.9	104	581
28	32.2	64.4	11.3	13.6	112	714
30	34.5	69	11.8	14.3	120	859
32	36.8	73.6	12.5	15.2	128	1026

What are JIS Type Aluminium Ferrules?

JIS Type Aluminium Ferrules are components used for terminating wire rope slings, winch cables, and other similar applications. They are manufactured according to the JIS (Japanese Industrial Standards). These ferrules are made of aluminum.

Advantages of JIS Type Aluminium Ferrules

JIS Type Aluminium Ferrules offer several advantages due to their material and design: They are lightweight because they are made of aluminum. Aluminum construction also makes them non-sparking, a crucial safety feature in certain environments. These ferrules are resistant to corrosion from various substances, including salt water, food products, and chemicals.

OUR FACTORY

Raw materials of our products are made of high-quality steel that meets the standards, and the raw materials are traceable. And multiple production lines and machines minimize lead times for rigging and lifting equipment.

MANUFACTURING PROCESSES

With eight automatic forging and semi-automatic forging line of up to 1600ton press machines and specialized drillng, tapping, heat treatment and inspection equipment. Strict and standardized production process ensures you receive perfect products.

QUALITY CONTROL

All rigging and lifting products are subjected to strict working tension and breaking the tension test. Complied with ISO9001 and CE certification. Our promise to you: Guaranteed safety at work for people and materials.
