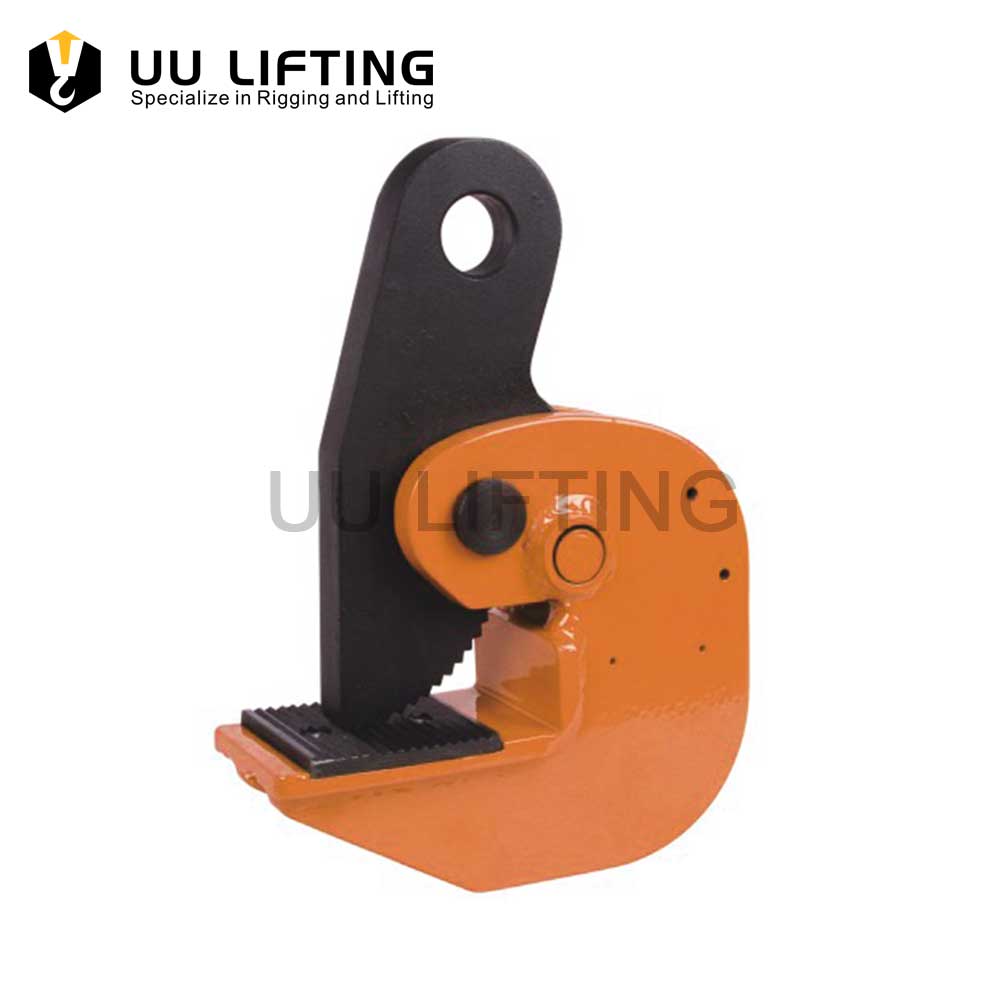

LC-C Horizontal Lifting Clamp

An LC-C Horizontal Lifting Clamp is a tool for moving steel plates horizontally. It typically has a capacity of 0.75–5 tons, a jaw opening of 0–55 mm, and is made of carbon steel.

Specification

Additional information

Material

Alloy steel

Rated Capacity

From 0.75Ton to 5Ton

Jaw opening

From 0mm to 55mm

Type

LC-C Type Horizontal Lifting Clamp

Application

Construction Area

Description

LC-C Horizontal Lifting Clamp Specifications:

MOQ1 Pallet, 1 Ton or 3000USD
MaterialAlloy Steel
Rated CapacityFrom 0.75t to 5t
N.W (Kg)From 2.4kg to 7.5kg

LC-C Horizontal Lifting Clamp Sizes:

LC-C Horizontal Lifting Clamp Sizes

LC-C Horizontal Lifting Clamp Sizes
ModelRated CapacityTest LoadJaw Opening (mm)N.W
(t)(t)(mm)(Kg)
0.75T0.751.50-252.4
1T120-303.4
2T240-355.4
3T360-406
4T480-456.3
5T5100-557.5
