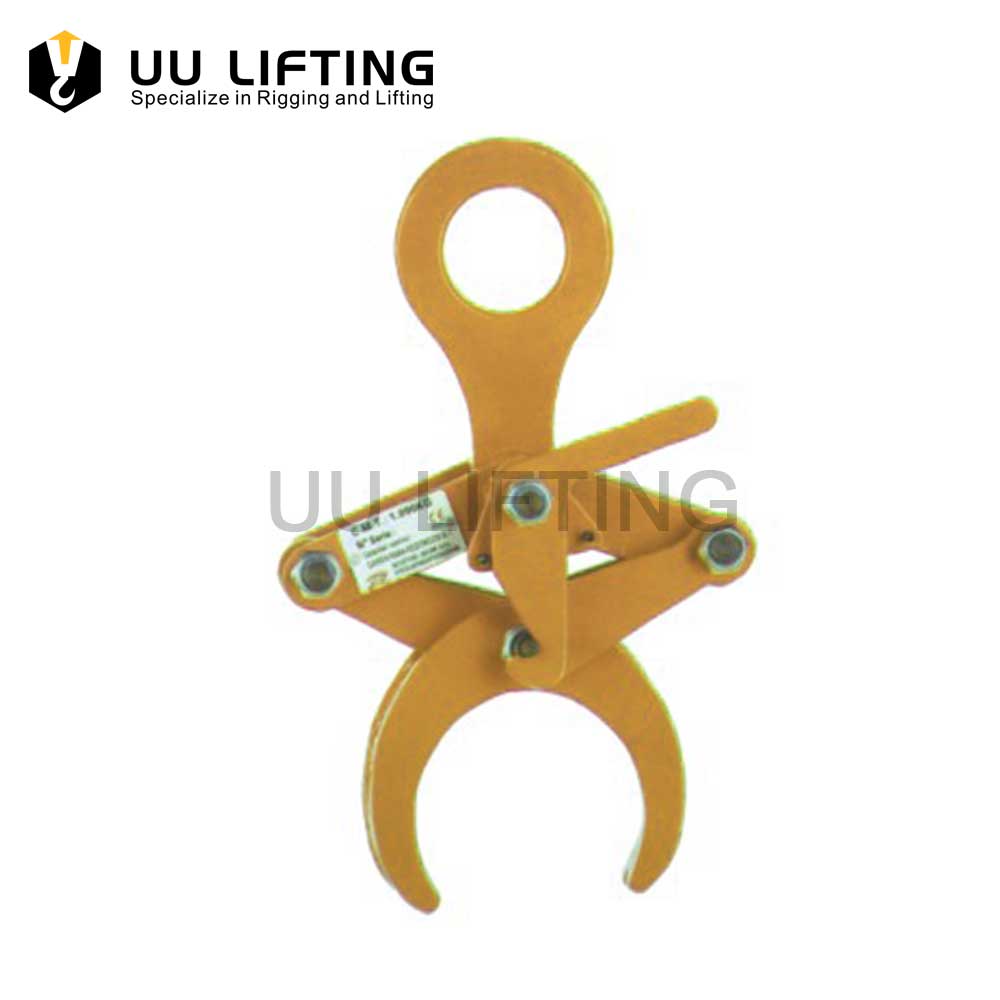

LC-E Round Steel Lifting Clamp

  • For horizontal lifting and transporting of steel and concrete pipes.
  • Designed to pick up tubes, pipes, and rolls or similar round stock material with a diameter of up to 320mm.
  • They are extremely easy and simple to use and make for safe lifting.
  • Available with automatic open/close device.

Specification

Additional information

Material

Alloy steel

Rated Capacity

From 0.5Ton to 5Ton

Jaw opening

From 50mm to 320mm

Type

LC-E Type Round Steel Lifting Clamp

Application

Construction Area

Description

LC-E Round Steel Lifting Clamp Specifications:

MOQ1 Pallet, 1 Ton or 3000USD
MaterialAlloy Steel
Rated CapacityFrom 0.5t to 5t
N.W (Kg)From 3.2kg to 104kg

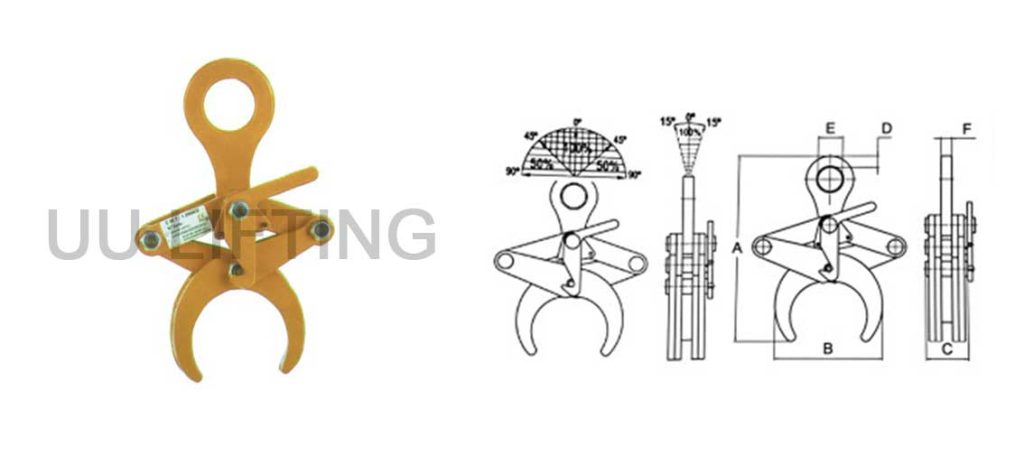

LC-E Round Steel Lifting Clamp Sizes:

LC-E Round Steel Lifting Clamp Sizes

LC-E Round Steel Lifting Clamp Sizes
ModelRated CapacityJaw OpeningN.W
(t)(mm)(Kg)
0.5T0.550-1003.2
1T1.050-1004.1
2T2.080-13016
3T3.0120-22032
5T5.0200-320104
OUR FACTORY
Raw materials of our products are made of high-quality steel that meets the standards, and the raw materials are traceable. And multiple production lines and machines minimize lead times for rigging and lifting equipment.
RAW-MATERIAL
Raw Material
Forged-Plant
Forged
Cast Process
Cast
Chain Process
Chain Machine
Heat Treatment Plant
Heat Treatment
Powder Plastified Plant
Powder Plastified
Package Plant
Package
Warehouse Plant
Warehouse
MANUFACTURING PROCESSES
With eight automatic forging and semi-automatic forging line of up to 1600ton press machines and specialized drillng, tapping, heat treatment and inspection equipment. Strict and standardized production process ensures you receive perfect products.
MANUFACTURING-PROCESSES-shackle
QUALITY CONTROL
All rigging and lifting products are subjected to strict working tension and breaking the tension test. Complied with ISO9001 and CE certification. Our promise to you: Guaranteed safety at work for people and materials.
G70 Chain Test
Chain Test
Clamp Test
Clamp Test
Hook Test
Hook Test
Link Test
Link Test
Shackle Tension Test
Shackle Tension Test
Snap Hook Test
Snap Hook Test
